G652D G655 G657A Single Mode FRP KFRP FTTH Drop Cable

Large Image : G652D G655 G657A Single Mode FRP KFRP FTTH Drop Cable

Product Details:

Place of Origin:	China
Brand Name:	Weiroct
Certification:	ISO-9001
Model Number:	FTTH

Payment & Shipping Terms:

Minimum Order Quantity:	1KM
Price:	USD
Packaging Details:	2KM/Roll/Carton Box
Delivery Time:	5~20 DAYS
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2000 Kilometre / Month

Contact Now

G652D G655 G657A Single Mode FRP KFRP FTTH Drop Cable

Description

Fiber Type:	G652D G655 G657A	Fiber Mode:	Singlemode
Fiber Count:	1~12	Strength Member:	FRP KFRP Steel
Jacket Material:	PVC LSZH PE	Cable Color:	White Black
Application:	Indoor&Outdoor	Package:	1KM/Roll
High Light:	G655 G657A FRP KFRP Drop Cable , G655 G657A FRP KFRP Drop Cables , G652D G657A FRP KFRP Drop Cables

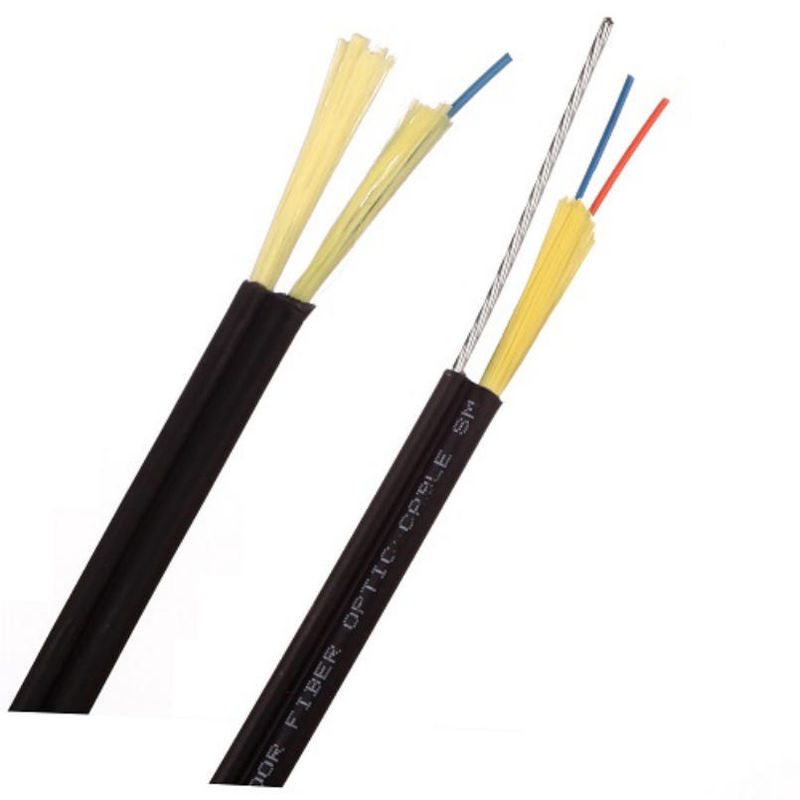

FTTH Drop Cable Singldemode FRP/KFRP/Steel Strength Member Fiber Optic Cable

Description:

The optical fiber unit is positioned in the center.
Two parallel Fiber Reinforced Plastics (FRP) are placed at the twp sides.
Then the cable is completed with a black or white color LSZH sheath.

Features:

Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
Two parallel strength members ensure good performance of crush resistance to protect the fiber
Simple structure, light weight and high practicability
Novel flute design, easily strip and splice, simplify the installation and maintenance
Low smoke, zero halogen and flame retardant sheath
Simple structure, light weight and high practicability

Application:

Used in indoor cabling, especially used for FTTH
Used as access building cable

Fiber Characteristic:

Cable code	Fiber Count	Cable diameter mm	Cable weight Kg/km	Tensilse Strength Long/Short term N	Crush Resistance Long/Short term N	Bedning Radius Dynamic/Static mm
GJXFH-1	1	(2.0±0.2)×(3.0±0.2)	8	30/60	300/1000	15/30
GJXFH-2	2	(2.0±0.2)×(3.0±0.2)	8.5	30/60	300/1000	15/30
GJXFH-4	4	(2.0±0.2)×(3.0±0.2)	10	30/60	300/1000	15/30
GJXH-1	1	(2.0±0.2)×(3.0±0.2)	9	30/60	300/1000	15/30
GJXH-2	2	(2.0±0.2)×(3.0±0.2)	9.5	30/60	300/1000	15/30
GJXH-4	4	(2.0±0.2)×(3.0±0.2)	10	30/60	300/1000	15/30

G652D G655 G657A Single Mode FRP KFRP FTTH Drop Cable 0

G652D G655 G657A Single Mode FRP KFRP FTTH Drop Cable 1
