Product Details:
|
| Name: | FTTH Drop Cable 8 Core Optic Fiber Cable Self-supporting Fiber Optic Drop Ftth Cable | Wavelength: | 1260 To 1650nm |
|---|---|---|---|
| Type: | Fiber Optic Plc Splitter, 1x2 1x4 1x8 1x16 2x8 2x16 | Connector: | SC LC |
| Cable Type:: | G657A1 Or As Customers' Order | Operating Temperation: | -40℃ To 85℃ |
| No. Of Fiber: | 2 4 8 16 | Usage: | FTTH |
| High Light: | FTTH Drop 8 Core Fiber Optic Cable,Self Supporting FTTH Drop Cable,8 Core FTTH Drop Cable |
||
FTTH Drop Cable 8 Core Optic Fiber Cable Self-supporting fiber optic drop ftth cable
Description
FTTH fiber optic cable is Fiber to Home, which used for linking the equipment and components in the fiber optic network. The fibers is position between two parallel FRP/steel wire . Then it is self-supported by diameter 1.2mm steel wire. Last this cable is completed with black or white LSZH sheath.
Features
1, High tensile of the diameter1.2mm steel wire meet the requirement of self-supporting and reducing the installation cost.
2, Two parallel FRP/ steel wire strength members ensure good performance of crush resistance to protect the fiber
3, Novel flute design, easily strip and splice, simplify the installation and maintenance
4, Low smoke zero halogen and flame retardant sheath
5, Single mode
6, (4.0±0.2)x(6.0±0.2)mm
7, Compliant with Telcordia GR-326-CORE specification
|
Items
|
|
Unit
|
G.657A1 Specification
|
|
Mode Field Diameter
|
1310nm
|
μm
|
9.0±0.4
|
|
1550nm
|
μm
|
10.1±0.5
|
|
|
Cladding Diameter
|
μm
|
124.8±0.7
|
|
|
Cladding Non-Circularity
|
%
|
≤0.7
|
|
|
Core-Cladding Concentricity Error
|
μm
|
≤0.5
|
|
|
Coating Diameter
|
μm
|
245±5
|
|
|
Coating Non-Circularity
|
%
|
≤6.0
|
|
|
Cladding-Coating Concentricity Error
|
μm
|
≤12.0
|
|
|
Cable Cutoff Wavelength
|
nm
|
λcc≤1260
|
|
|
Attenuation (max.)
|
1310nm
|
dB/km
|
≤0.35
|
|
1550nm
|
dB/km
|
≤0.21
|
|
|
Macro-Bending Loss
|
1turn×10mm radius@1550nm
|
dB
|
≤0.75
|
|
1turn×10mm radius@1550nm
|
dB
|
≤1.5
|
|
|
G.652D Single Mode Optical Fiber (B1.3)
|
|||
|
Item
|
Standard
|
Unit
|
|
|
Attenuation
|
1310nm
|
≤0.35
|
dB/km
|
|
1383nm
|
≤0.33
|
dB/km
|
|
|
1550nm
|
≤0.21
|
dB/km
|
|
|
1625nm
|
≤0.24
|
dB/km
|
|
|
Dispersion
|
1288nm～1339nm
|
|D|≤3.4
|
ps/(nm·km)
|
|
1271nm～1360nm
|
|D|≤5.3
|
ps/(nm·km)
|
|
|
1550nm
|
≤17.8
|
ps/(nm·km)
|
|
|
Zero-dispersion wavelength
|
1300～1322
|
(nm)
|
|
|
Zero-dispersion slope
|
≤0.091
|
ps/(nm2•km)
|
|
|
PMD
|
PMD single fiber
|
≤0.15
|
ps/√km
|
|
PMD Q links
|
≤0.08
|
ps/√km
|
|
|
MDF
|
1310nm
|
9.2±0.4
|
um
|
|
Cladding diameter
|
125±1.0
|
μm
|
|
|
Cladding non-circularity
|
≤0.8
|
%
|
|
|
Core-cladding concentricity error
|
≤0.6
|
μm
|
|
|
Coating diameter
|
245±10
|
μm
|
|
|
Cladding/coating concentricity error
|
≤10.0
|
μm
|
|
|
Cut-off wavelength
|
1.18～1.33
|
μm
|
|
|
Macrobend attenuation
(ф 50mm, 100 cycles)
|
1550nm
|
≤0.05
|
dB
|
|
1625nm
|
≤0.05
|
dB
|
|
|
Bending radius
|
≥5
|
m
|
|
|
Dynamic fatigue parameters
|
≥20
|
nd
|
|
|
Additional Attenuation
@1310nm &
@1550nm
|
Temperature cycling test:
(-60℃～85℃, 3 cycles) |
≤0.03
|
dB/km
|
|
Water soak test:
(23℃ for 30 days) |
≤0.03
|
dB/km
|
|
|
Damp heat test:
(85℃, 85%RH for 30 days) |
≤0.03
|
dB/km
|
|
|
Thermal aging test (85℃ for 30 days)
|
≤0.03
|
dB/km
|
|
|
Warm water soak test: (60℃ for 15 days)
|
≤0.03
|
dB/km
|
|

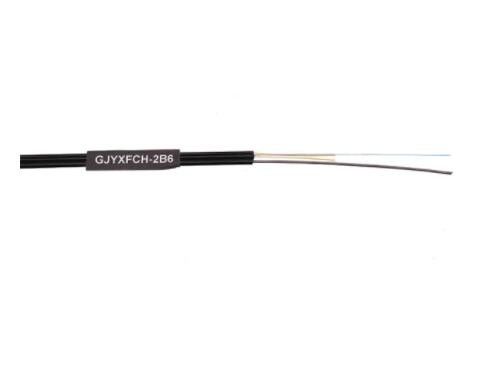

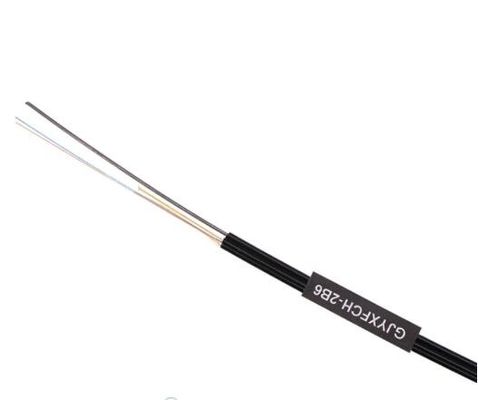

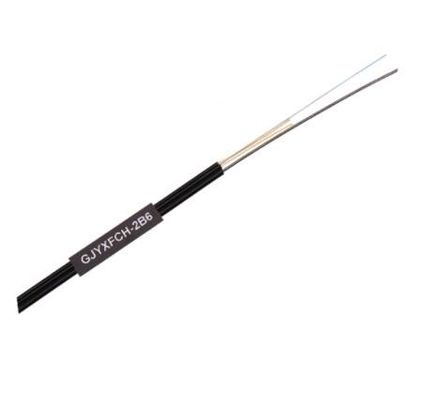

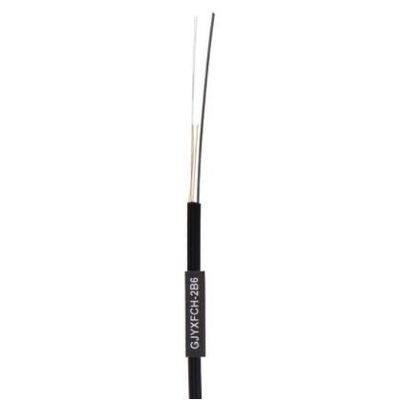

Drawings of FTTH Drop Cable 8 Core Optic Fiber Cable Self-supporting fiber optic drop ftth cable
