Product Details:
|
| Application: | Telecommunication,Telecom,Network,internet,Lan | Fiber Type: | G652D,single Mode Or Multi Mode,50/125,62.5/125,OM3 |
|---|---|---|---|
| Number Of Conductors: | 2,4,8,12,24,48,96,128,288 | Type: | Single Mode G652d,Outdoor Optical Cable Aerial,Singlemode & Multimode |
| Fiber Count: | 2-288 Cores | Color: | Black,Blue,Grey,Customized,Green,customized |
| Jacket: | PE,MDPE,LSZH,PVC | Name: | GYTS GYTA G657 PE Jacket 24 36 38 48 Core Outdoor Fiber Optical Cable |
| Length: | 2km,5Km Or Customized Length | Jacket Material: | PE,LSZH,TPU,LSZH Or PVC |
| Oem: | Available | Installation: | Self- Supporting Aerial,aerial, Duct |
| Structure: | Loose Tube,Unitube | Operating Temperature: | -40~75 |
| Sheath Material: | LSZH,HDPE,PVC | Strength Member: | Steel Wire,Aluminum,or As Per Requirement |
| Fiber Color: | Blue,Orange,Brown,Aqua,Grey,Customized |
Description: GYTS GYTA G657 PE Jacket 24 36 38 48 core outdoor fiber optical cable
"GYTS GYTA G657 PE Jacket 24 36 38 48 core outdoor fiber optical cable" is an outdoor use optical fiber cable suitable for duct and aerial applications. We supply GYTA fiber optic cable from 2 fiber cores to 12 fiber cores. Both single mode type and multimode types are available.
Features
•Up to 288 fibers.
•Loose tube gel-filled construction for superior fiber protection.
•Aluminum tape armor to protect cable from mechanical damage.
•UV and waterproof design.
Structure and Technical specifications of GYTS GYTA G657 PE Jacket 24 36 38 48 core outdoor fiber optical cable
| Cable Parameters | ||
| Items | Specifications | |
| Fiber Count | 2~24 | |
| Colored Coating Fiber | Dimension | 260µm±15µm |
| Color | Blue, Orange, Green, Brown, Gray, White | |
| Loose Tube Dimension 2.10mm±0.05mm | Dimension | 2.10mm±0.05mm |
| Material | PBT | |
| Color | Natural | |
| Strength Member | Diameter | 1.0mm |
| Material | Steel | |
| Outer Jacket | Dimension | 8.0mm±0.1mm |
| Material | PE | |
| Color | Black | |
| Cable Count | Out Sheath Diameter | Weight | Minimum Allowable Tensile Strength (N) | Minimum Allowable Crush Load | Min Bending Radius | Suitable Temperature |
| (N/100 mm) | (N) | |||||
| cores | MM | KG | short/long | short/long | short/long | ℃ |
| 24 | 10.5 | 105 | 1500/600 | 1000/300 | 20 D/10 D | 20 |
| 36 | 10.5 | 105 | 1500/600 | 1000/300 | 20 D/10 D | 20 |
| 42 | 10.5 | 105 | 1500/600 | 1000/300 | 20 D/10 D | 20 |
| 48 | 12 | 150 | 1500/600 | 1000/300 | 20 D/10 D | 20 |
| 60 | 12 | 150 | 1500/600 | 1000/300 | 20 D/10 D | 20 |
| 72 | 12 | 150 | 1500/600 | 1000/300 | 20 D/10 D | 20 |
| Mechanical Performance | |
| Max Tension Performance | IEC 60794–1-2-E |
| Max. Operation Tension | IEC 60794–1-2-E1 |
| Crush Test | IEC 6079 –1-2-E3 |
| Impact Test | IEC 60794–1-2-E4 |
| Repeated Bending | IEC 60794–1-2-E6 |
| Torsion Test | IEC 60794–1-2-E7 |
| Cable bend | IEC 60794–1-2-E11A |
| Attenuation Coefficient | ITU-T G.652 |
| Structural Test | IEC-60793-1-20 |
| Environmental Performance | |
| Temperature Cycling | IEC 60794–1-2-F1 |
| Water Penetration | IEC 60794–1–2-F5B |
| Filing Compound Flow | IEC 60794-1-E14 |
Q1: Are you a factory or trading company?
A1: We are a manufacturer.
Q2: May I buy samples from you?
A2: Yes! You are welcome to place sample order to test our superior quality and service
Q3:How to Place an order?
A8:Pls send us your purchase order by email or you can ask us to send you the proforma invoice for your order.
Q4:What payment method do you accept?
A4:T/T(Bank transfer), L/C, Western Union, Money Gram, PayPal, etc.
Q5: May I know the status of my order?
A5: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.
Q6: What’s the leading time? (How long do you need to prepare my goods?)
A6: Delivery (no more than 1000pcs) will be arranged within 3-7 days after payment.Big order shall be in 7-30 days.
Q7: How will you delivery my goods ?
A7: It will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo.

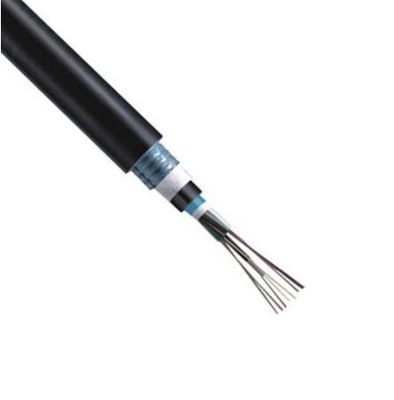

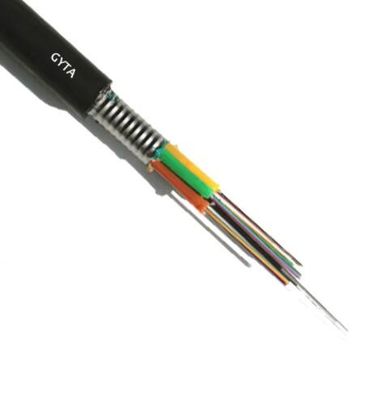

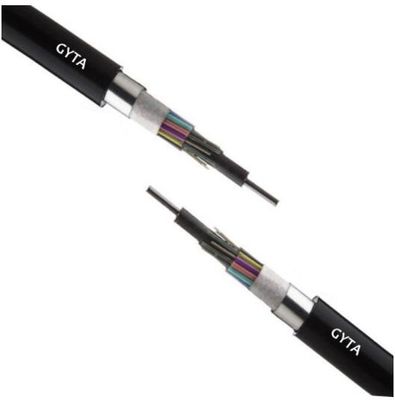

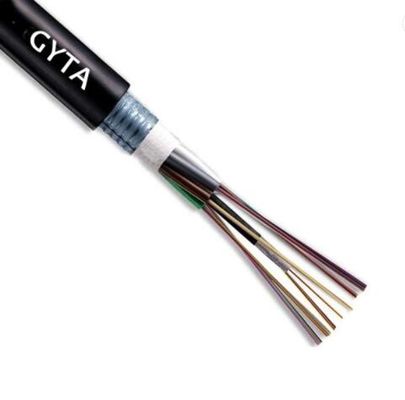

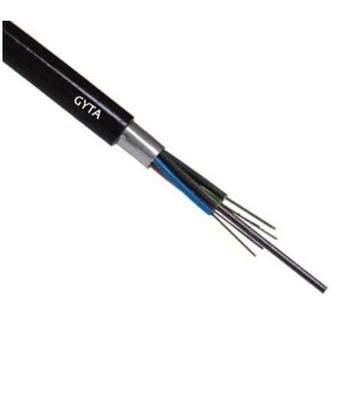

Drawings of GYTS GYTA G657 PE Jacket 24 36 38 48 core outdoor fiber optical cable
