Product Details:
|
| Application: | Telecommunication,Telecom,Network,internet,Lan | Fiber Type: | G652D,single Mode Or Multi Mode,50/125,62.5/125,OM3 |
|---|---|---|---|
| Number Of Conductors: | 2,4,8,12,24,48,96,128,288 | Type: | Single Mode G652d,Outdoor Optical Cable Aerial,Singlemode & Multimode |
| Fiber Count: | 2-288 Cores | Color: | Black,Blue,Grey,Customized,Green,customized |
| Jacket: | PE,MDPE,LSZH,PVC | Name: | GYTA Fiber Optic G652 Steel Central Strength Member Fiber Optic Cable |
| Length: | 2km,5Km Or Customized Length | Jacket Material: | PE,LSZH,TPU,LSZH Or PVC |
| Oem: | Available | Installation: | Self- Supporting Aerial,aerial, Duct |
| Structure: | Loose Tube,Unitube | Operating Temperature: | -40~75 |
| Sheath Material: | LSZH,HDPE,PVC | Strength Member: | Steel Wire,Aluminum,or As Per Requirement |
| Fiber Color: | Blue,Orange,Brown,Aqua,Grey,Customized |

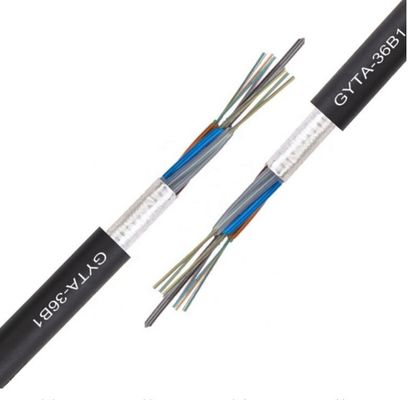

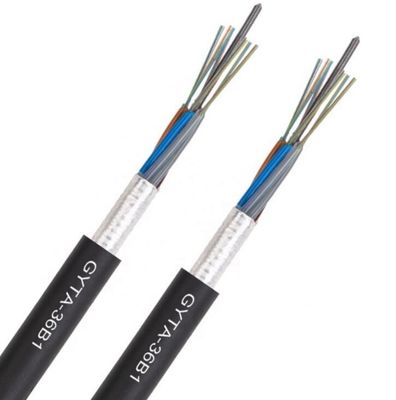

Description: GYTA fiber optic g652 steel central strength member fiber optic cable
"GYTA fiber optic g652 steel central strength member fiber optic cable" is an outdoor use optical fiber cable suitable for duct and aerial applications. We supply GYTA fiber optic cable from 2 fiber cores to 12 fiber cores. Both single mode type and multimode types are available.
2. Features
·The fibers, 260μm, are positioned in a loose tube made of a high modulus plastic.
· The tubes are filled with a water-resistant filling compound.
· The tube is wrapped with a layer of corrugated steel tape longitudinally.
· Between the corrugated steel tape and the loose tube water-blocking material is applied to keep the cable compact and watertight
Two parallel steel wires are placed at the two sides of the steel tape.
· The cable is completed with PE sheath.
3. Application
Interbuilding voice or data communication backbone.
Installed in duct, underground conduit.
Structure and Technical specifications of GYTA fiber optic g652 steel central strength member fiber optic cable
| Cable Parameters | ||
| Items | Specifications | |
| Fiber Count | 2~24 | |
| Colored Coating Fiber | Dimension | 260µm±15µm |
| Color | Blue, Orange, Green, Brown, Gray, White | |
| Loose Tube Dimension 2.10mm±0.05mm | Dimension | 2.10mm±0.05mm |
| Material | PBT | |
| Color | Natural | |
| Strength Member | Diameter | 1.0mm |
| Material | Steel | |
| Outer Jacket | Dimension | 8.0mm±0.1mm |
| Material | PE | |
| Color | Black | |
| Technical Parameter | |||||||
| Fiber Count | Cable Diameter (mm) | Cable Weight (kg/km) | Tensile Strength Long/Short Term (N) | Crush Resistance Long/Short Term (N/100mm) | Bending Radius Static/Dynamic (mm) | ||
| 2~12 | 10.6 | 124 | 1000/3000 | 1000/3000 | 10D/20D | ||
| 14~24 | 12.0 | 147 | 1000/3000 | 1000/3000 | 10D/20D | ||
| Mechanical Performance | |
| Max Tension Performance | IEC 60794–1-2-E |
| Max. Operation Tension | IEC 60794–1-2-E1 |
| Crush Test | IEC 6079 –1-2-E3 |
| Impact Test | IEC 60794–1-2-E4 |
| Repeated Bending | IEC 60794–1-2-E6 |
| Torsion Test | IEC 60794–1-2-E7 |
| Cable bend | IEC 60794–1-2-E11A |
| Attenuation Coefficient | ITU-T G.652 |
| Structural Test | IEC-60793-1-20 |
| Environmental Performance | |
| Temperature Cycling | IEC 60794–1-2-F1 |
| Water Penetration | IEC 60794–1–2-F5B |
| Filing Compound Flow | IEC 60794-1-E14 |
Q1: Are you a factory or trading company?
A1: We are a manufacturer.
Q2: May I buy samples from you?
A2: Yes! You are welcome to place sample order to test our superior quality and service
Q3:How to Place an order?
A8:Pls send us your purchase order by email or you can ask us to send you the proforma invoice for your order.
Q4:What payment method do you accept?
A4:T/T(Bank transfer), L/C, Western Union, Money Gram, PayPal, etc.
Q5: May I know the status of my order?
A5: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.
Q6: What’s the leading time? (How long do you need to prepare my goods?)
A6: Delivery (no more than 1000pcs) will be arranged within 3-7 days after payment.Big order shall be in 7-30 days.
Q7: How will you delivery my goods ?
A7: It will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo.

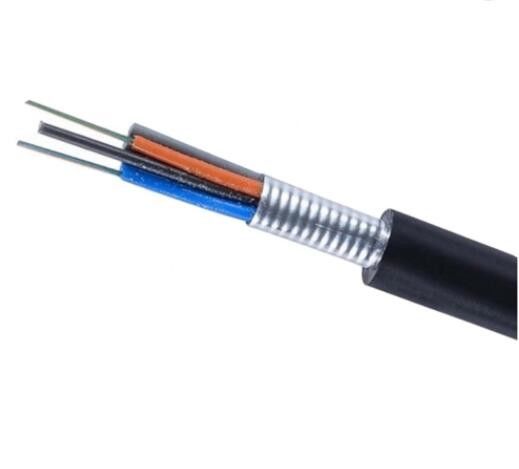

Drawings of GYTA fiber optic g652 steel central strength member fiber optic cable
