Product Details:
|
| Application: | Telecommunication,Telecom,Network,internet,Lan | Fiber Type: | G652D,single Mode Or Multi Mode,50/125,62.5/125,OM3 |
|---|---|---|---|
| Number Of Conductors: | 2,4,8,12,24,48,96,128,288 | Type: | Single Mode G652d,Outdoor Optical Cable Aerial,Singlemode & Multimode |
| Fiber Count: | 2-288 Cores | Color: | Black,Blue,Grey,Customized,Green,customized |
| Jacket: | PE,MDPE,LSZH,PVC | Name: | Fiber Optic Cable G657a Fiber Optical Cable Direct Buried Cable GYTA |
| Length: | 2km,5Km Or Customized Length | Jacket Material: | PE,LSZH,TPU,LSZH Or PVC |
| Oem: | Available | Installation: | Self- Supporting Aerial,aerial, Duct |
| Structure: | Loose Tube,Unitube | Operating Temperature: | -40~75 |
| Sheath Material: | LSZH,HDPE,PVC | Strength Member: | Steel Wire,Aluminum,or As Per Requirement |
| Fiber Color: | Blue,Orange,Brown,Aqua,Grey,Customized | ||
| High Light: | G657a Direct Burial Armored Fiber Optic Cable,GYTA Direct Burial Armored Fiber Optic Cable,Armored G657a Fiber Cable |
||
Description: Fiber optic cable g657a fiber optical cable direct buried cable GYTA
"Fiber optic cable g657a fiber optical cable direct buried cable GYTA" are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including duct and underground conduit.

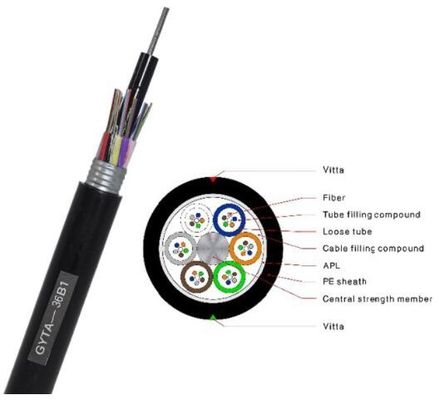

1. Product Construction
Fiber: 2-288 fiber
Multi-loose tube gel-filled
Central Strength Member:
Fiberglass reinforced Platic (FRP) or steel wire.
Armor: Aluminum Tape Armor
Outer Jacket: Black UV Polyethylene(PE)
2. Features
Up to 288 fibers.
Loose tube gel-filled construction for superior fiber protection.
Aluminum tape armor to protect cable from mechanical damage.
UV and waterproof design.
3. Application
Interbuilding voice or data communication backbone.
Installed in duct, underground conduit.
Structure and Technical specifications of Fiber optic cable g657a fiber optical cable direct buried cable GYTA
Optical Characteristics:
| Fiber Type | G.652 | G.655 | 50/125^m | 62.5/125^m | |
|
Attenuation (+20X) |
850nm | <3.0 dB/km | <3.3 dB/km | ||
| 1300nm | <1.0 dB/km | <1.0 dB/km | |||
| 1310nm | <0.36 dB/km | <0.40 dB/km | |||
| 1550nm | <0.22 dB/km | <0.23 dB/km | |||
| Bandwidth | 850nm | >500 MHz-km | >200 MHz-km | ||
| 1300nm | >500 MHz-km | >500 MHz-km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength cc | <1260nm | <1450 nm | |||
Fiber Num.
|
Fiber Num.
|
Outer diameter (mm)
|
Weight (kg/km)
|
Tension (N)
|
Crash loading(N/100mm)
|
||
|
Short term
|
Long term
|
Short term
|
Long term
|
|||
|
2-30
|
9.5
|
86
|
≥1500
|
≥600
|
≥1000
|
≥300
|
|
32-60
|
10.2
|
99
|
||||
|
62-72
|
10.9
|
123
|
||||
|
74-84
|
12.2
|
148
|
||||
|
86-96
|
12.2
|
148
|
||||
|
98-120
|
14.0
|
183
|
||||
|
122-144
|
14.5
|
220
|
||||
|
146-216
|
16.1
|
229
|
||||
|
218-300
|
18.5
|
290
|
||||
| Mechanical Performance | |
| Max Tension Performance | IEC 60794–1-2-E |
| Max. Operation Tension | IEC 60794–1-2-E1 |
| Crush Test | IEC 6079 –1-2-E3 |
| Impact Test | IEC 60794–1-2-E4 |
| Repeated Bending | IEC 60794–1-2-E6 |
| Torsion Test | IEC 60794–1-2-E7 |
| Cable bend | IEC 60794–1-2-E11A |
| Attenuation Coefficient | ITU-T G.652 |
| Structural Test | IEC-60793-1-20 |
| Environmental Performance | |
| Temperature Cycling | IEC 60794–1-2-F1 |
| Water Penetration | IEC 60794–1–2-F5B |
| Filing Compound Flow | IEC 60794-1-E14 |
Q1: Are you a factory or trading company?
A1: We are a manufacturer.
Q2: May I buy samples from you?
A2: Yes! You are welcome to place sample order to test our superior quality and service
Q3:How to Place an order?
A8:Pls send us your purchase order by email or you can ask us to send you the proforma invoice for your order.
Q4:What payment method do you accept?
A4:T/T(Bank transfer), L/C, Western Union, Money Gram, PayPal, etc.
Q5: May I know the status of my order?
A5: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.
Q6: What’s the leading time? (How long do you need to prepare my goods?)
A6: Delivery (no more than 1000pcs) will be arranged within 3-7 days after payment.Big order shall be in 7-30 days.
Q7: How will you delivery my goods ?
A7: It will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo.
Drawings of Fiber optic cable g657a fiber optical cable direct buried cable GYTA
