Description: Single Mode Unitube Light Armored GYXTW Aerial Fiber Optic Cable
"Single Mode Unitube Light Armored GYXTW Aerial Fiber Optic Cable "is constructed by inserting a 250 μm fiber into a loose tube made of a high modulus material filled with a water-repellent compound. Two parallel steel wires are placed on both sides to be extruded. The vinyl sheath is cabled.
Characteristics of Single Mode Unitube Light Armored GYXTW Aerial Fiber Optic Cable
| 1.Excellent mechanical and temperature performance guaranteed by the accurate excess fiber length |
| 2.Critical protection to fibers, based on the excellent hydrolysis resistance and strength performance of tube material and special filling compound filled in the tube |
| 3.Special compact structure to avoid the loose tube shrinkage |
| 4.Excellent crush resistance and flexibility |
| 5.PSP enhances the cable crush-resistance, impact-resistance and moisture-proof |
| 6.Two parallel steel wires ensure tensile strength. Small diameter, light weight and installation friendliness with long delivery length |
| 7. Excellent ultraviolet prevention with PE sheath |
Structure and Technical specifications of Single Mode Unitube Light Armored GYXTW Aerial Fiber Optic Cable
| No. | Items | Unit | Specification | |
| G.652D | ||||
| 1 | Mode Field Diameter | 1310nm | μm | 9.2±0.4 |
| 1550nm | μm | 10.4±0.5 | ||
| 2 | Cladding Diameter | μm | 124.8±0.7 | |
| 3 | Cladding Non-Circularity | % | ≤0.7 | |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |
| 5 | Coating Diameter | μm | 245±5 | |
| 6 | Coating Non-Circularity | % | ≤6.0 | |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 | |
| 9 | Attenuation(max.) | 1310nm | dB/km | ≤0.4 |
| 1550nm | dB/km | ≤0.3 | ||
Cable Parameters
| able count | out sheath diameter | Weight | Minimum allowable Tensile strength(N) | Minimum allowable Crush load(N/100mm) |
Min bending radius(MM) |
Suitable temperature |
||||
| (core) | (MM) | (KG) | short term |
long term |
short term |
long term |
short term |
long term |
(℃) | |
| 2 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 4 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 6 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 8 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 10 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 12 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 24 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| Mechanical Performance | |
| Max Tension Performance | IEC 60794–1-2-E |
| Max. Operation Tension | IEC 60794–1-2-E1 |
| Crush Test | IEC 6079 –1-2-E3 |
| Impact Test | IEC 60794–1-2-E4 |
| Repeated Bending | IEC 60794–1-2-E6 |
| Torsion Test | IEC 60794–1-2-E7 |
| Cable bend | IEC 60794–1-2-E11A |
| Attenuation Coefficient | ITU-T G.652 |
| Structural Test | IEC-60793-1-20 |
| Environmental Performance | |
| Temperature Cycling | IEC 60794–1-2-F1 |
| Water Penetration | IEC 60794–1–2-F5B |
| Filing Compound Flow | IEC 60794-1-E14 |
Our Services
1.24hours one-to-one online services ensure efficient support.
2.Considerate customer reception from hotel booking to factory visiting.
3.Excellent care from order confirmation to product shipment.

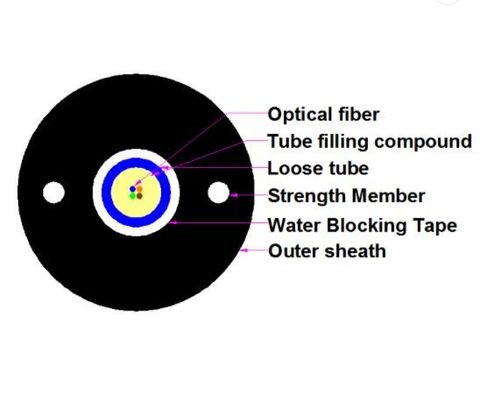

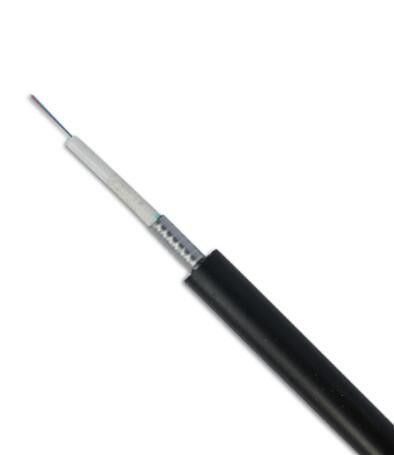

Drawings of Single Mode Unitube Light Armored GYXTW Aerial Fiber Optic Cable
