Product Details:
|
| Application: | Telecommunication,Telecom,Network,internet,Lan | Fiber Type: | G652D,single Mode Or Multi Mode,50/125,62.5/125,OM3 |
|---|---|---|---|
| Number Of Conductors: | 2,4,8,12,24,48,96 | Type: | Single Mode G652d,Outdoor Optical Cable Aerial,Singlemode & Multimode |
| Fiber Count: | 2-288 Core | Color: | Black,Blue,Grey,Customized,Green |
| Jacket: | PE,MDPE,LSZH,PVC | Name: | 2 4 6 8 10 12 Core GYXTW GYXTW53 Single Mode Outdoor Communication Fiber Optic Cable |
| Length: | 2km , Or Customized Length | Jacket Material: | PE,LSZH,TPU,LSZH OR PVC |
| Oem: | Available | Installation: | Self- Supporting Aerial,aerial, Duct |
| Structure: | Loose Tube,Unitube | Operating Temperature: | -40~75 |
| Sheath Material: | LSZH,HDPE,PVC | Strength Member: | Steel Wire,Aluminum,or As Per Requirement |
| Fiber Color: | Blue,Orange,Brown,Aqua,Grey,Customized | ||
| High Light: | GYXTW53 Communication Fiber Optic Cable,GYXTW Communication Fiber Optic Cable,GYXTW53 12 Core Ofc Cable |
||
Description: 2 4 6 8 10 12 core GYXTW GYXTW53 single mode outdoor communication fiber optic cable
"2 4 6 8 10 12 core GYXTW GYXTW53 single mode outdoor communication fiber optic cable "is constructed by inserting a 250 μm fiber into a loose tube made of a high modulus material filled with a water-repellent compound. Two parallel steel wires are placed on both sides to be extruded. The vinyl sheath is cabled.
The loose tube is coated with a double-sided plastic coated steel strip (PSP) longitudinally, and a water-blocking material is added between the steel strip and the loose tube to ensure the compactness and longitudinal water resistance of the cable.
Characteristics of 2 4 6 8 10 12 core GYXTW GYXTW53 single mode outdoor communication fiber optic cable
1. Full cross-section water blocking structure to ensure good water resistance and moisture resistance;
2. The loose tube is filled with special grease to protect the optical fiber;
3. Two parallel round steel wires resist tension and side pressure;
4. Optical fiber cable with small outside diameter, light weight, excellent bending performance;
5. The loose tube is located in the physical center of the cable and it is easy to operate.
6. Polyethylene sheath makes the cable have good UV resistance
7. Product life more than 25 years
Structure and Technical specifications of 2 4 6 8 10 12 core GYXTW GYXTW53 single mode outdoor communication fiber optic cable
Fiber Parameters
| No. | Items | Unit | Specification | |
| G.652D | ||||
| 1 | Mode Field Diameter | 1310nm | μm | 9.2±0.4 |
| 1550nm | μm | 10.4±0.5 | ||
| 2 | Cladding Diameter | μm | 124.8±0.7 | |
| 3 | Cladding Non-Circularity | % | ≤0.7 | |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |
| 5 | Coating Diameter | μm | 245±5 | |
| 6 | Coating Non-Circularity | % | ≤6.0 | |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 | |
| 9 | Attenuation(max.) | 1310nm | dB/km | ≤0.4 |
| 1550nm | dB/km | ≤0.3 | ||
Cable Parameters
| able count | out sheath diameter | Weight | Minimum allowable Tensile strength(N) | Minimum allowable Crush load(N/100mm) |
Min bending radius(MM) |
Suitable temperature |
||||
| (core) | (MM) | (KG) | short term |
long term |
short term |
long term |
short term |
long term |
(℃) | |
| 2 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 4 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 6 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 8 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 10 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 12 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 24 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| Fiber standard control | ||||||||||
Fiber Type |
Multi-mode | G.651 | A1a:50/125 | Gradient-type refractive index | ||||||
| A1b:62.5/125 | ||||||||||
| Single-mode | G.652(A,B,C,D) | B1.1routines | ||||||||
| G.653 | B2 Zero dispersion-shifted | |||||||||
| G.654 | B1.2 Cutoff wavelength shift | |||||||||
| G.655 | B4 Non-zero dispersion-shifted | |||||||||
| Mechanical Performance | |
| Max Tension Performance | IEC 60794–1-2-E |
| Max. Operation Tension | IEC 60794–1-2-E1 |
| Crush Test | IEC 6079 –1-2-E3 |
| Impact Test | IEC 60794–1-2-E4 |
| Repeated Bending | IEC 60794–1-2-E6 |
| Torsion Test | IEC 60794–1-2-E7 |
| Cable bend | IEC 60794–1-2-E11A |
| Attenuation Coefficient | ITU-T G.652 |
| Structural Test | IEC-60793-1-20 |
| Environmental Performance | |
| Temperature Cycling | IEC 60794–1-2-F1 |
| Water Penetration | IEC 60794–1–2-F5B |
| Filing Compound Flow | IEC 60794-1-E14 |
Our Services
1.24hours one-to-one online services ensure efficient support.
2.Considerate customer reception from hotel booking to factory visiting.
3.Excellent care from order confirmation to product shipment.

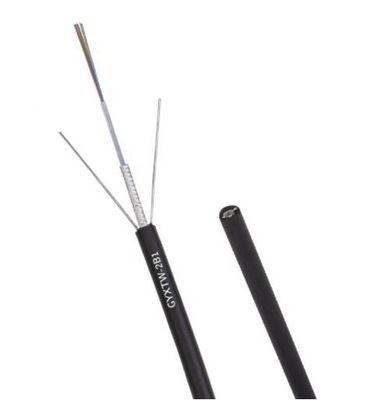

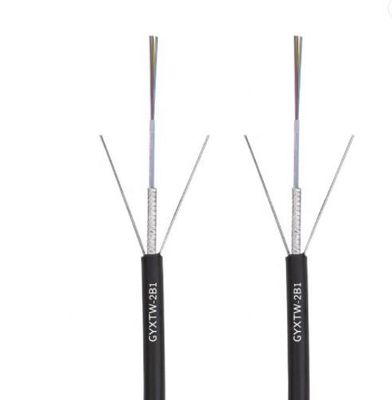

Drawings of 2 4 6 8 10 12 core GYXTW GYXTW53 single mode outdoor communication fiber optic cable

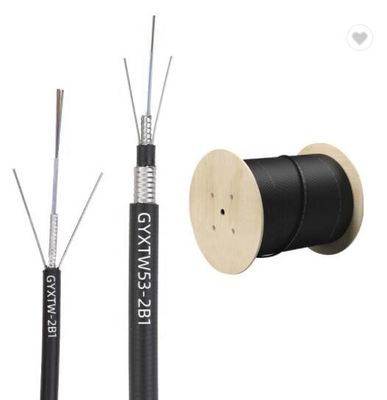

Package of 2 4 6 8 10 12 core GYXTW GYXTW53 single mode outdoor communication fiber optic cable

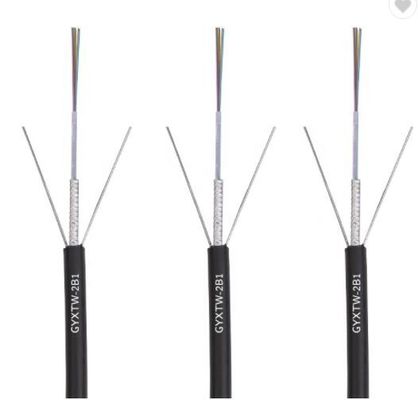

More products customized
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
||
|
Attenuation (+20°C) |
@850nm |
|
|
≤3.0 dB/km |
≤3.0 dB/km |
|
@1300nm |
|
|
≤1.0 dB/km |
≤1.0 dB/km |
|
|
@1310nm |
≤0.36 dB/km |
≤0.40 dB/km |
|
|
|
|
@1550nm |
≤0.22 dB/km |
≤0.23dB/km |
|
|
|
|
Bandwidth (Class A) |
@850nm |
|
|
≥500 MHz·km |
≥200 MHz·km |
|
@1300nm |
|
|
≥1000 MHz·km |
≥600 MHz·km |
|
|
Numerical Aperture |
|
|
0.200±0.015NA |
0.275±0.015NA |
|
|
Cable Cut-off Wavelengthλcc |
≤1260nm |
≤1480nm |
|
|
|
