Product Details:
|
| Application: | Telecommunication,Telecom,Network,internet,Lan | Fiber Type: | G652D,single Mode Or Multi Mode,50/125,62.5/125,OM3 |
|---|---|---|---|
| Number Of Conductors: | 2,4,8,12,24,48,96 | Type: | Single Mode G652d,Outdoor Optical Cable Aerial,Singlemode & Multimode |
| Fiber Count: | 2-288 Core | Color: | Black,Blue,Grey,Customized,Green |
| Jacket: | PE,MDPE,LSZH,PVC | Name: | GYXTW 4 Sore Single Mode Armoured Optical Fiber Cooper Support Cable 1 Buyer |
| Length: | 2km , Or Customized Length | Jacket Material: | PE,LSZH,TPU,LSZH OR PVC |
| Oem: | Available | Installation: | Self- Supporting Aerial,aerial, Duct |
| Structure: | Loose Tube,Unitube | Operating Temperature: | -40~75 |
| Sheath Material: | LSZH,HDPE,PVC | Strength Member: | Steel Wire,Aluminum,or As Per Requirement |
| Fiber Color: | Blue,Orange,Brown,Aqua,Grey,Customized | ||
| High Light: | 4 Core Single Mode Fiber Optic Cable,GYXTW 4 Core Copper Armoured Cable,2km 4 Core Copper Armoured Cable |
||

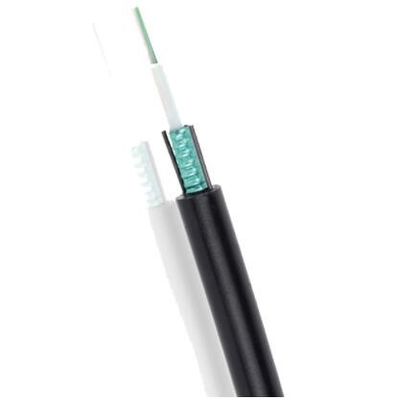

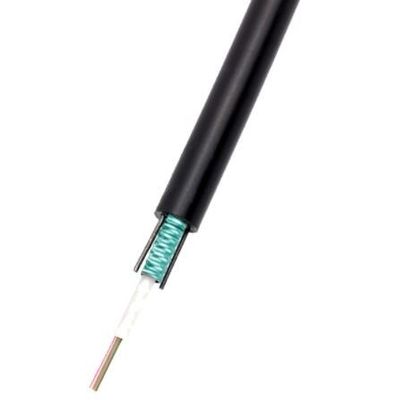

Description: GYXTW 4 sore single mode armoured optical fiber cooper support cable
"GYXTW 4 sore single mode armoured optical fiber cooper support cable"is constructed by inserting a 250 μm fiber into a loose tube made of a high modulus material filled with a water-repellent compound. Two parallel steel wires are placed on both sides to be extruded. The vinyl sheath is cabled.
The loose tube is coated with a double-sided plastic coated steel strip (PSP) longitudinally, and a water-blocking material is added between the steel strip and the loose tube to ensure the compactness and longitudinal water resistance of the cable.

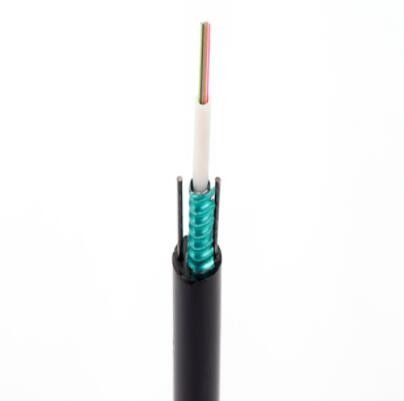

Characteristics of GYXTW 4 sore single mode armoured optical fiber cooper support cable
1.250μm Coloured Fiber
2.PBT loose Tube
3.Tube Filling Compound(Gel)
4.Steel wire central strength menber
5. Steel tape barrier
6.PE/LSZH outer Sheath
| 2-96 fibers | 98-288fibers | |||
| Max. Tension (N) | Short-term | 1500 | 3000 | |
| Max. Tension (N) | Long-term | 600 | 1000 | |
| Max. Crushing Resistance (N/100mm2) | 1000 | |||
| Temperature range(°C) | -40°C-- +70°C | |||
| Min. Bending Radius(mm) | Install | 20D | ||
| Min. Bending Radius(mm) | Static | 10D | ||
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
|
Attenuation (+20℃) |
@850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelengthλcc | ≤1260nm | ≤1480nm | |||
| Mechanical Performance | |
| Max Tension Performance | IEC 60794–1-2-E |
| Max. Operation Tension | IEC 60794–1-2-E1 |
| Crush Test | IEC 6079 –1-2-E3 |
| Impact Test | IEC 60794–1-2-E4 |
| Repeated Bending | IEC 60794–1-2-E6 |
| Torsion Test | IEC 60794–1-2-E7 |
| Cable bend | IEC 60794–1-2-E11A |
| Attenuation Coefficient | ITU-T G.652 |
| Structural Test | IEC-60793-1-20 |
| Environmental Performance | |
| Temperature Cycling | IEC 60794–1-2-F1 |
| Water Penetration | IEC 60794–1–2-F5B |
| Filing Compound Flow | IEC 60794-1-E14 |
Q1:Are you trading company or manufacturer ?
A1: We are factory, and has more than 15 years experience.
Q2: How much will the shipping cost be?
A2: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.
Q3: Can you supply OEM products under our brand?
A3: Yes, we are manufacturer, we accept OEM service, you just need send us your detailed requirements.
Q4: What if there is quality problem when we get the goods?
A4: If there is quality problem, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, refund or return.
Our Services
1.24hours one-to-one online services ensure efficient support.
2.Considerate customer reception from hotel booking to factory visiting.
3.Excellent care from order confirmation to product shipment.
Drawings of GYXTW 4 sore single mode armoured optical fiber cooper support cable
Package of GYXTW 4 sore single mode armoured optical fiber cooper support cable
