Product Details:
|
| Application: | Telecommunication,Telecom,Network | Fiber Type: | G652D,single Mode Or Multi Mode,50/125,62.5/125,OM3 |
|---|---|---|---|
| Number Of Conductors: | 2,4,8,24,48,96 | Type: | Single Mode G652d,Outdoor Optical Cable Aerial,Singlemode & Multimode |
| Fiber Count: | 2-96 Core | Color: | Black,Blue,Grey,Customized,Green |
| Jacket: | PE,MDPE,LSZH,PVC | Product Name: | Single Mode Outdoor Armoured GYXTW 2 / 4 / 6 / 8 / 12 Core Fiber Optic Cable |
| Length: | 2km ,5Km Or Customized Length | Jacket Material: | PE,LSZH,TPU,LSZH OR PVC |
| Name: | Single Mode Outdoor Armoured GYXTW G657A Fiber Optical Cable | Oem: | Available |
| Installation: | Self- Supporting Aerial,aerial,Aerial & Duct | Structure: | Loose Tube,Unitube |
| Operating Temperature: | -40~75 | Sheath Material: | LSZH,HDPE,PVC |
| Strength Member: | Steel Wire | Fiber Color: | Blue,Orange,Brown,Aqua,Grey,Customized |
| High Light: | 12 Core Single Mode Fiber Optic Cable,GYXTW 8 Core Fiber Optic Cable,GYXTW Single Mode Fiber Optic Cable |
||
Description: Single Mode Outdoor Armoured GYXTW 2 / 4 / 6 / 8 / 12 Core Fiber Optic Cable

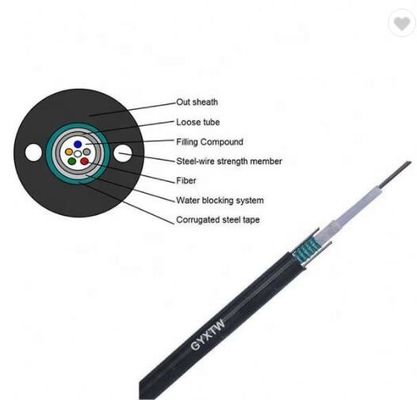

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic.
The tubes are filled with a water-resistant filling compound.
The tube is wrapped with a layer of corrugated steel tape longitudinally.
The cable is completed with PE sheath.
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
PSP enhancing moisture-proof
Two parallel steel wires ensure tensile strength
Small diameter, light weight and friendly installation
Storage / Operating Temperature: -40℃~+70℃
| Items | Specifications | |
| Fiber Count | 2~24 | |
| Colored Coating Fiber | Dimension | 250µm±15µm |
| Color | Blue, Orange, Green, Brown, Gray, White | |
| Loose Tube | Dimension | 2.10mm±0.05mm |
| Material | PBT | |
| Color | Natural | |
| Strength Member | Diameter | 1.0mm |
| Material | Steel | |
| Outer Jacket | Dimension | 8.0mm±0.1mm |
| Material | PE | |
| Color | Black | |
Mechanical and Environmental Characteristics of Single Mode Outdoor Armoured GYXTW 2 / 4 / 6 / 8 / 12 Core Fiber Optic Cable
| Items | Unite | Specifications |
| Tensio (Long Term) | N | 600 |
| Tension (Short Term) | N | 1500 |
| Crush (Long Term) | N/10cm | 300 |
| Crush (Short Term) | N/10cm | 1000 |
| Min. Bend Radius (Dynamic) | mm | 20D |
| Min. Bend Radius (Static) | mm | 10D |
| Installation Temperature | ℃ | -20~+60 |
| Operating Temperature | ℃ | -40~+70 |
| Storage Temperature | ℃ | -40~+70 |
Technical Parameter of Single Mode Outdoor Armoured GYXTW 2 / 4 / 6 / 8 / 12 Core Fiber Optic Cable
|
Outdoor GYXTW Central Loose Tube Fiber Optic Cable
|
|||||
|
Item
|
fiber
|
nominal diameter (mm)
|
nominal weight(kg/km)
|
long-term/short-term permitted tensile (N)
|
Long-term/short-term permitted crush(N)
|
|
GYXTW-4
|
2-12
|
8.00
|
95
|
600/1500
|
1000/3000
|
|
GYXTW-6
|
2-12
|
8.00
|
105
|
1000/3000
|
1000/3000
|
|
GYXTW-8
|
2-12
|
8.00
|
132
|
600/1500
|
1000/3000
|
|
GYXTW-12
|
2-12
|
8.00
|
148
|
1000/3000
|
1000/3000
|
| Transmission Characteristics | |||||
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
|
Max Attenuation (dB/km) (+20℃) |
850 nm | 3.0 | 3.3 | ||
| 1300 nm | 1.0 | 1.0 | |||
| 1310 nm | 0.36 | 0.4 | |||
| 1550 nm | 0.24 | 0.23 | |||
| Cable Cute-off Wavelength (nm) | ≤1260 | ≤1450 | |||
Payment
For large orders, T/T , L/C, and E-credit lines are all offered.
For small orders, credit-cards are accepted.
Shipping & Delivery
We will send the products within 10 days.
We ship small batched by air, or large orders by container.
Return and Warranty:
All products have been tested before ship out
All products have 2 years warranty. If there is no man-made problem ,we will replace or repair for you freely.
We own the best after-sale service. If any problems happen ,our team will do our best to solve for customers.

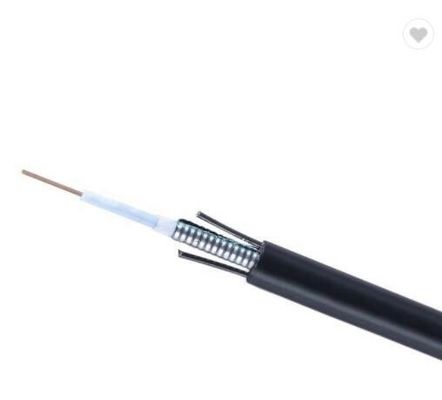

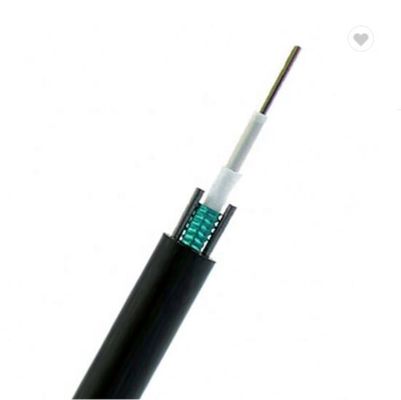

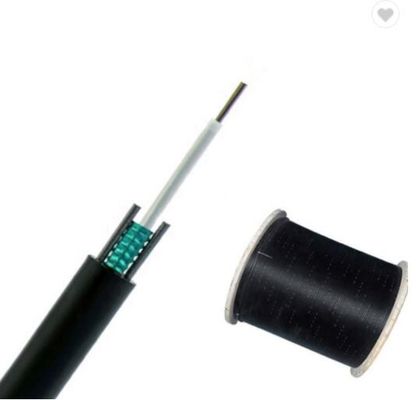

Drawings of Single Mode Outdoor Armoured GYXTW 2 / 4 / 6 / 8 / 12 Core Fiber Optic Cable
