GYXTW Armored Fiber Optic Cable Types Direct Burial Cable

GYXTW Armored Fiber Optic Cable Types Direct Burial Cable
GYXTW Armored Fiber Optic Cable Types Direct Burial Cable GYXTW Armored Fiber Optic Cable Types Direct Burial Cable GYXTW Armored Fiber Optic Cable Types Direct Burial Cable GYXTW Armored Fiber Optic Cable Types Direct Burial Cable

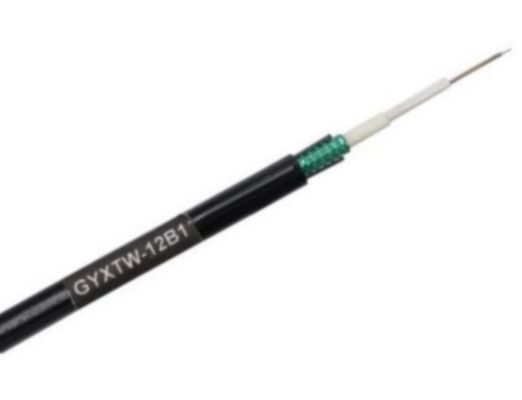

Large Image :  GYXTW Armored Fiber Optic Cable Types Direct Burial Cable

Product Details:
Place of Origin: China
Brand Name: WRC
Certification: ISO9001,SGS
Model Number: GYXTW Armored Fiber Optic Cable Types Direct Burial Cable
Payment & Shipping Terms:
Minimum Order Quantity: 5km
Price: USD80-USD100/Km
Packaging Details: Export Carton Packing
Delivery Time: 5-21 days
Payment Terms: Western Union, MoneyGram, Western Union
Supply Ability: 500Km per day

GYXTW Armored Fiber Optic Cable Types Direct Burial Cable

Description
Application: Telecommunication,Duct,Telecom,Network Fiber Type: G652D,single Mode Or Multi Mode,50/125,62.5/125,OM3
Number Of Conductors: ≥ 10,2,4 Type: Single Mode G652d,PC/UPC/APC,Outdoor Optical Cable Aerial,Singlemode & Multimode
Fiber Count: 1-288 Core Color: Black,Blue,Grey,Customized,Green
Jacket: PE,MDPE,LSZH,PVC,PVC Outer Sheath Product Name: Stranded Loose Tube Armored Cable,Outdoor Optic Fiber Cable
Length: 2km ,5Km Or Customized Length Jacket Material: PE,LSZH,TPU,LSZH OR PVC
Name: Outdoor Armor Fiber Optic Cable Oem: Available
Installation: Self- Supporting Aerial,aerial,Aerial & Duct,aerial/tube/duct Structure: Loose Tube,Unitube
Operating Temperature: -40~75 Sheath Material: LSZH,HDPE
Strength Member: Steel Wire Fiber Color: Blue,Orange,Brown,Aqua,Grey

Description: GYXTW Armored Fiber Optic Cable Types Direct Burial Cable



GYXTW Armored Uni-Tube Single Jacket/Single Armored cable is designed with the flexibility and versatility

required for today's most demanding installations, including direct buried. The metallic armor is used when

mechanical protection is desired.



Uni-tube gel-filled construction for superior fiber protection.

Metallic armor to protect cable from rodent attack and mechanical damage.

Embedded steel wire provide desirable tensile strength and crush resistance.

Compact, easy to install.

UV and waterproof design



GYXTW Armored Fiber Optic Cable Types Direct Burial Cable Characteristics: Two parallel steel wires ensure tensile strength PSP enhances the cable crush resistance, impact resistance and moisture-proof. Accurate fiber excess length ensures good mechanical and temperature performance. Specially designed compact structure is good at preventing loose tubes from shrinking. High strength loose tube that is hydrolysis resistant and special tube filling compound ensure a citical protection of fiber. Small diameter, light weight and it is easy to be installed. Crush resistance and flexibility. GYXTW Fiber Optic Cable Application

GYXTW Armored Fiber Optic Cable Types Direct Burial Cable

Fiber

Count

Nominal

Diameter

(mm)

Nominal

Weight

(kg/km)

Allowable Tensile Load

(N)

Allowable Crush Resistance
(N/100mm)
Short Term Long Term Short Term Long Term
2~12 8.6 95 1500 600 1000 300
14~24 9.0 110 1500 600 1000 300



Payment

For large orders, T/T , L/C, and E-credit lines are all offered.

For small orders, credit-cards are accepted.



Shipping & Delivery

We will send the products within 10 days.

We ship small batched by air, or large orders by container.



Return and Warranty:

All products have been tested before ship out

All products have years warranty. If there is no man-made problem ,we will replace or repair for you freely.

We own the best after-sale service. If any problems happen ,our team will do our best to solve for customers.



Drawings GYXTW Armored Fiber Optic Cable Types Direct Burial Cable

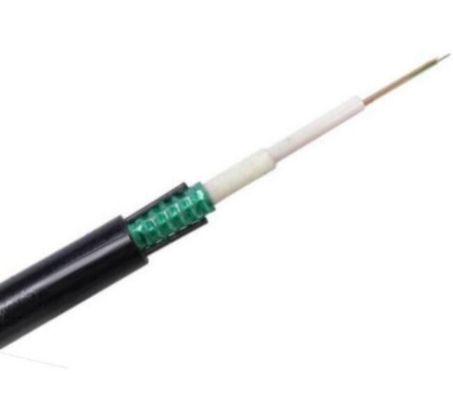

GYXTW Armored Fiber Optic Cable Types Direct Burial Cable 0



More products customized

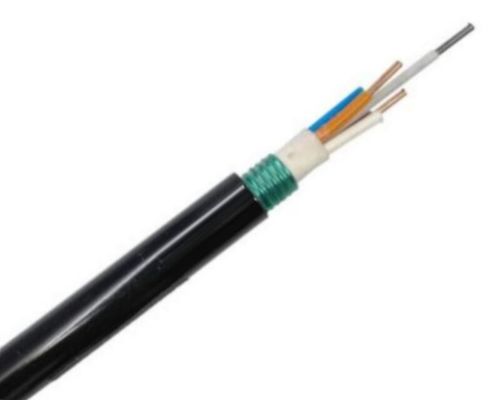

GYXTW Armored Fiber Optic Cable Types Direct Burial Cable 1
