Product Details:
|
| Application: | Telecommunication,Duct,Telecom,Network | Fiber Type: | G652D,single Mode Or Multi Mode,50/125,62.5/125,OM3 |
|---|---|---|---|
| Number Of Conductors: | ≥ 10,2,4 | Type: | Single Mode G652d,PC/UPC/APC,Outdoor Optical Cable Aerial,Singlemode & Multimode |
| Fiber Count: | 2-288 Core | Color: | Black,Blue,Grey,Customized,Green |
| Jacket: | PE,MDPE,LSZH,PVC,PVC Outer Sheath | Product Name: | Stranded Loose Tube Armored Cable,Outdoor Optic Fiber Cable |
| Length: | 2km Or Customized Length | Jacket Material: | PE,LSZH,TPU,LSZH OR PVC |
| Name: | Outdoor Armor Fiber Optic Cable | Oem: | Available |
| Installation: | Self- Supporting Aerial,aerial,Aerial & Duct,aerial/tube/duct | Structure: | Loose Tube,Unitube |
| Operating Temperature: | -40~75 | Sheath Material: | LSZH,HDPE |
| Strength Member: | Steel Wire | Fiber Color: | Blue,Orange,Brown,Aqua,Grey |

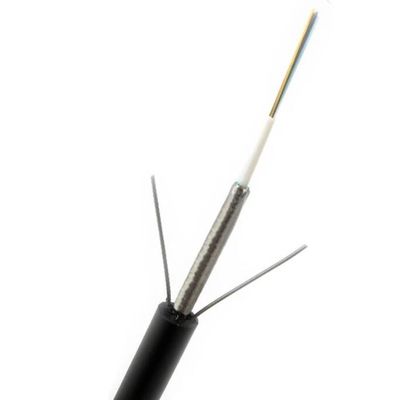

Description: GYXTW Armored Fiber Optic Cable Types Direct Burial Cable
GYXTW Armored Uni-Tube Single Jacket/Single Armored cable is designed with the flexibility and versatility
required for today's most demanding installations, including direct buried. The metallic armor is used when
mechanical protection is desired.
Uni-tube gel-filled construction for superior fiber protection.
Metallic armor to protect cable from rodent attack and mechanical damage.
Embedded steel wire provide desirable tensile strength and crush resistance.
Compact, easy to install.
UV and waterproof design
|
Fiber Count |
Nominal Diameter (mm) |
Nominal Weight (kg/km) |
Allowable Tensile Load (N) |
Allowable Crush Resistance (N/100mm) |
||
| Short Term | Long Term | Short Term | Long Term | |||
| 2~12 | 8.6 | 95 | 1500 | 600 | 1000 | 300 |
| 14~24 | 9.0 | 110 | 1500 | 600 | 1000 | 300 |
Payment
For large orders, T/T , L/C, and E-credit lines are all offered.
For small orders, credit-cards are accepted.
Shipping & Delivery
We will send the products within 10 days.
We ship small batched by air, or large orders by container.
Return and Warranty:
All products have been tested before ship out
All products have 2 years warranty. If there is no man-made problem ,we will replace or repair for you freely.
We own the best after-sale service. If any problems happen ,our team will do our best to solve for customers.

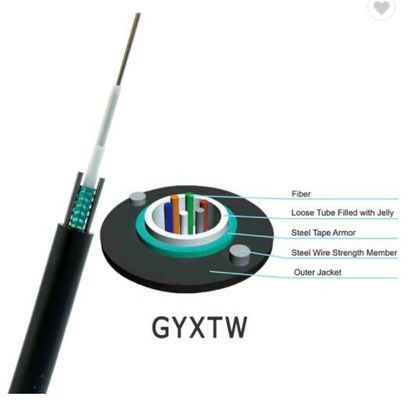

Drawings GYXTW Armored Fiber Optic Cable Types Direct Burial Cable
