Product Details:
|
| Application: | Telecommunication,Duct,Telecom,Network | Fiber Type: | G652D,single Mode Or Multi Mode,50/125,62.5/125,OM3 |
|---|---|---|---|
| Number Of Conductors: | ≥ 10,2,4 | Type: | Single Mode G652d,PC/UPC/APC,Outdoor Optical Cable Aerial,Singlemode & Multimode |
| Fiber Count: | 2-288 Core | Color: | Black,Blue,Grey,Customized,Green |
| Jacket: | PE,MDPE,LSZH,PVC,PVC Outer Sheath | Product Name: | Stranded Loose Tube Armored Cable,Outdoor Optic Fiber Cable |
| Length: | 2km Or Customized Length | Jacket Material: | PE,LSZH,TPU,LSZH OR PVC |
| Name: | Outdoor Armor Fiber Optic Cable | Oem: | Available |
| Installation: | Self- Supporting Aerial,aerial,Aerial & Duct,aerial/tube/duct | Structure: | Loose Tube,Unitube |
| Operating Temperature: | -40~75 | Sheath Material: | LSZH,HDPE |
| Strength Member: | Steel Wire | Fiber Color: | Blue,Orange,Brown,Aqua,Grey |

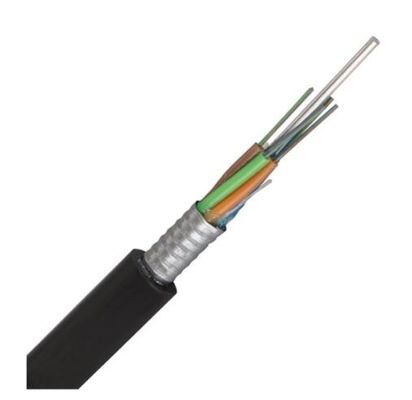

Description: Outdoor underground armored 6-288 core fiber optic cable GYTA
1.The fibers is 250µm, are positioned in a loose tube made of a high modulus plastic . The tubes are filled with a water-resistant filling compound.
No. of cable | 12 | 24 | 48 | ||
Fiber Model | G.652D | ||||
Design (StrengthMember+Tube&Filler) | 1+5 | ||||
Central Strength Member | Material | Steel Wire | |||
Diameter(±0.5)mm | 1.4 | ||||
Loose Tube | Material | PBT | |||
Diameter(±0.06)mm | 1.72 | 1.72 | 2.0 | ||
Thickness(±0.03)mm | 0.30 | 0.30 | 0.32 | ||
The Max.Core NO./Tube | 6 | 6 | 12 | ||
Filler Rope | Material | LDPE | |||
Diameter(±0.06)mm | 1.7 | 1.7 | 2.0 | ||
NO. | 3 | 1 | 1 | ||
Moisture Barrier | Material | Polymer Coated Aluminum Tape | |||
Thickness(±0.03)mm | 0.20 | ||||
Inner Sheath | Material | MDPE | |||
Thickness(±0.2)mm | 0.9 | ||||
Armoring | Material | Polymer Coated Steel Tape | |||
Thickness(±0.2)mm | 0.22 | ||||
Water Bloaking Layer | Material | Filling Compound | |||
Outer Sheath | Material | MDPE | |||
Thickness(±0.2)mm | 1.8 | ||||
Cable Diameter(±0.5)mm | 12.5 | 12.5 | 13.1 | ||
Cable Weight(±10)kg/km | 152 | 167 | 167 | ||
Attenuation | 1310nm | 0.35dB/ km | |||
1550nm | 0.21dB/ km | ||||
Min. bending radius | Without Tension | 12.5×Cable-φ | |||
Under Maximum Tension | 25.0×Cable-φ | ||||
Temperature range (℃) | Installation | -20~+60 | |||
Transport&Storage | -40~+70 | ||||
Operation | -40~+70 | ||||

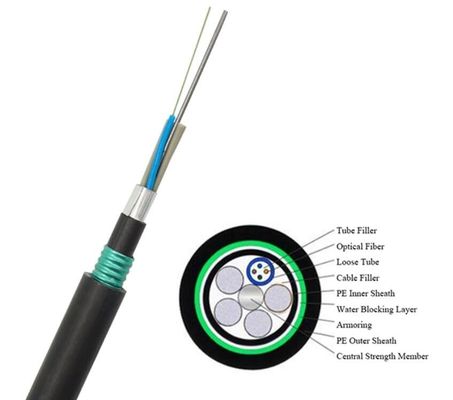

Drawings Outdoor underground armored 6-288 core fiber optic cable GYTA
