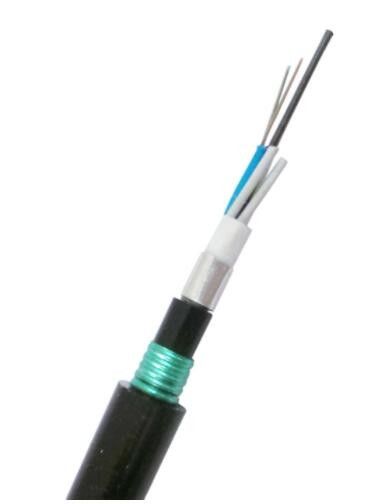

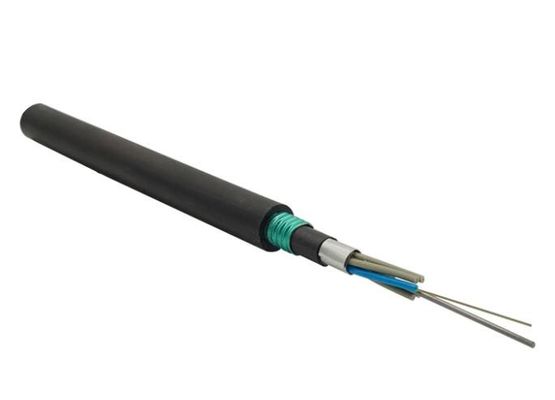

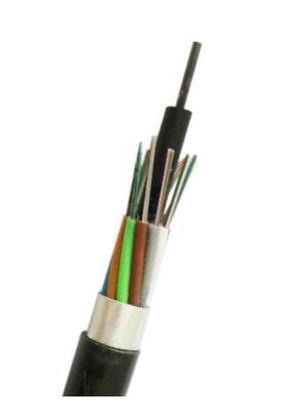

GYTA53 Armoured Direct Outdoor Fiber Optic Cable

GYTA53 Armoured Direct Outdoor Fiber Optic Cable
GYTA53 Armoured Direct Outdoor Fiber Optic Cable GYTA53 Armoured Direct Outdoor Fiber Optic Cable GYTA53 Armoured Direct Outdoor Fiber Optic Cable GYTA53 Armoured Direct Outdoor Fiber Optic Cable

Large Image :  GYTA53 Armoured Direct Outdoor Fiber Optic Cable

Product Details:
Place of Origin: China
Brand Name: WRC
Certification: ISO9001
Model Number: GYTA53 armoured direct fiber optical cable
Payment & Shipping Terms:
Minimum Order Quantity: 5km
Price: USD0.70-USD15/set
Packaging Details: Export Carton Packing
Delivery Time: 5-20 days
Payment Terms: Western Union, MoneyGram
Supply Ability: 500Km per day

GYTA53 Armoured Direct Outdoor Fiber Optic Cable

Description
Application: Telecommunication,Aerial,Duct,Telecom,Network Fiber Type: G652D,single Mode Or Multi Mode,50/125,62.5/125,OM3
Number Of Conductors: ≥ 10,2,4 Type: Single Mode G652d,PC/UPC/APC,Outdoor Optical Cable Aerial,Singlemode & Multimode
Fiber Count: 2-288 Core Color: Black,Blue,Grey,Customized,Green
Jacket: PE,MDPE,LSZH,PVC,PVC Outer Sheath Product Name: Stranded Loose Tube Armored Cable,Outdoor Optic Fiber Cable
Length: 2km Or Customized Length Jacket Material: PE,LSZH,PVC,TPU,LSZH OR PVC
Name: Outdoor Armor Fiber Optic Cable Oem: Available
Installation: Self- Supporting Aerial,aerial,Aerial & Duct,aerial/tube/duct Structure: Loose Tube,Unitube
Operating Temperature: -40~75 Sheath Material: LSZH,HDPE/MDPE
Strength Member: Two Steel Wire Fiber Color: Blue,Orange,Brown,Aqua,Grey
High Light:

GYTA53 Outdoor Fiber Optic Cable

,

Armoured Direct Outdoor Fiber Optic Cable

,

GYTA53 Armoured Optic Cable

Description: GYTA53 armoured direct fiber optical cable



1.The fibers is 250µm, are positioned in a loose tube made of a high modulus plastic . The tubes are filled with a water-resistant filling compound.

2.A steel wire, sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member.
3.Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.
4.An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress.
5.Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

Products features

Fiber Num.
Outer diameter (mm)
Weight (kg/km)
Tension (N)
Crash loading(N/100mm)
Short term
Long term
Short term
Long term
2-30
9.5
86
≥1500
≥600
≥1000
≥300
32-60
10.2
99
62-72
10.9
123
74-84
12.2
148
86-96
12.2
148
98-120
14.0
183
122-144
14.5

220

146-216
16.1
229
218-300
18.5
290

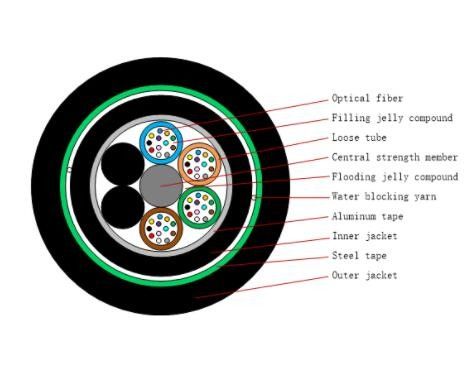

Drawings GYTA53 armoured direct fiber optical cable



GYTA53 Armoured Direct Outdoor Fiber Optic Cable 0
