FTTH 1x2 1x4 1x8 1x16 SC UPC APC Connector Fiber Optic PLC Splitter

Certification
China Wuhan Weiruo Communication Tech. Co.,Ltd certification
China Wuhan Weiruo Communication Tech. Co.,Ltd certification
I'm Online Chat Now

FTTH 1x2 1x4 1x8 1x16 SC UPC APC Connector Fiber Optic PLC Splitter

FTTH 1x2 1x4 1x8 1x16 SC UPC APC Connector Fiber Optic PLC Splitter

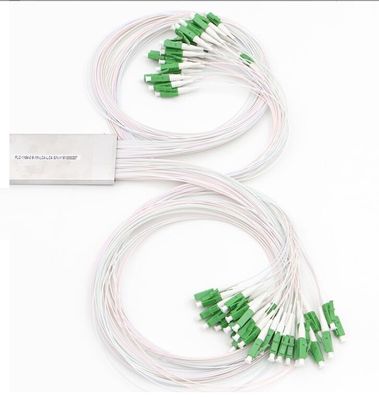

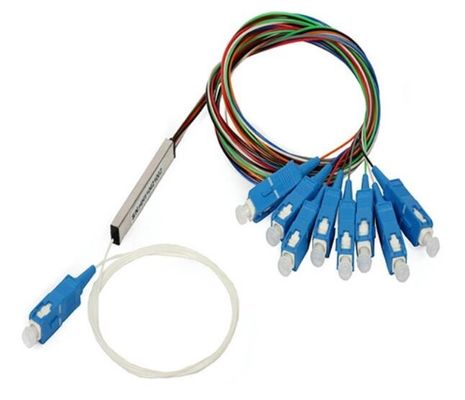

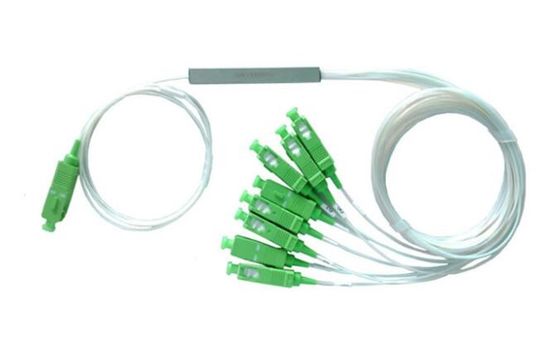

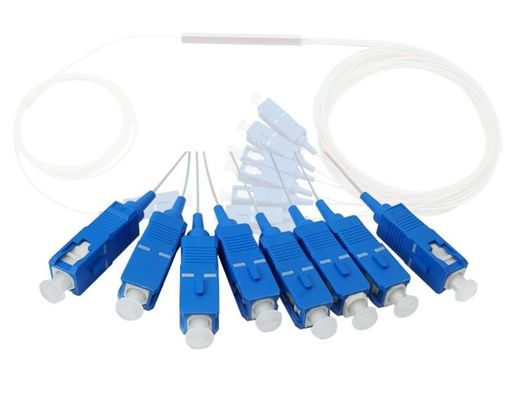

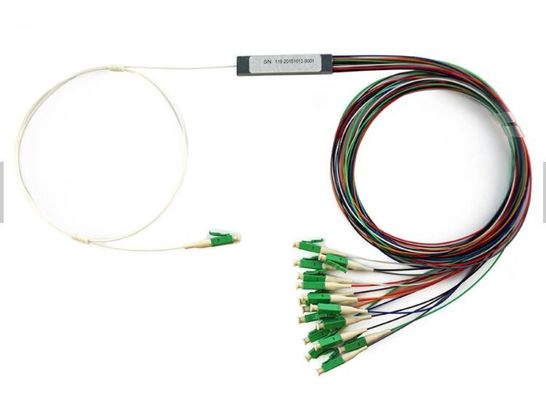

FTTH 1x2 1x4 1x8 1x16 SC UPC APC Connector Fiber Optic PLC Splitter FTTH 1x2 1x4 1x8 1x16 SC UPC APC Connector Fiber Optic PLC Splitter FTTH 1x2 1x4 1x8 1x16 SC UPC APC Connector Fiber Optic PLC Splitter FTTH 1x2 1x4 1x8 1x16 SC UPC APC Connector Fiber Optic PLC Splitter FTTH 1x2 1x4 1x8 1x16 SC UPC APC Connector Fiber Optic PLC Splitter FTTH 1x2 1x4 1x8 1x16 SC UPC APC Connector Fiber Optic PLC Splitter

Large Image :  FTTH 1x2 1x4 1x8 1x16 SC UPC APC Connector Fiber Optic PLC Splitter

Product Details:
Place of Origin: China
Brand Name: WRC
Certification: ISO9001
Model Number: PLC Splitter
Payment & Shipping Terms:
Minimum Order Quantity: 100
Packaging Details: Export Carton Packing
Delivery Time: 5-20 days
Supply Ability: 1000 pcs per Day

FTTH 1x2 1x4 1x8 1x16 SC UPC APC Connector Fiber Optic PLC Splitter

Description
Connector Type: LC/SC/ST/FC/MU/MTRJ, Etc Wavelength: 1260 To 1650nm
Type: Fiber Optic Plc Splitter, 1x2 1x4 1x8 1x16 2x8 2x16 Connector: SC LC
Cable Type:: G657A1 Or As Customers' Order Operating Temperation: -40℃ To 85℃
No. Of Fiber: 2 4 8 16 Usage: FTTH
High Light:

FTTH 1x16 Fiber Optic PLC Splitter

,

FTTH 1x4 Fiber Optic PLC Splitter

,

APC Connector 1x2 Fiber Splitter




FTTH 1x2 1x4 1x8 1x16 Fiber Optic PLC Splitter SC UPCAPC Connector



               Features
1. Low Insertion loss
2. Low PDL
3. Compact Design
4. Good channel-to-channel uniformity
5. Wide operating wavelength:from 1260nm to 1650nm
6. Wide operating temperature: from-40°C to 85°C
7. High reliability and stability

Specification:

Parameter Specification
Operating Wavelength (nm) 1260 ~ 1650
Type 1x4 1x8 1x16 2x4 2x8 2x16 1x32 2x32 1x64
Insertion Loss (dB) Max. * <7.3 <10.5 <13.5 <7.6 <11.2 <14.5 <16.2 <18.2 <20.5
Uniformity (dB) Max.* <0.8 <1.0 <1.5 <1.0 <1.5 <2.0 <2.0 <2.5 <2.5
PDL(dB)Max.* <0.2 <0.2 <0.3 <0.3 <0.3 <0.4 <0.3 <0.4 <0.3
Directivity (dB) Min * 55
Return Loss (dB) Min * 55(50)
Operating Temperature (°C) -5~ +75
Storage Temperature (°C) -40 ~ +85
Fiber length 1m or custom length
Fiber Type Corning SMF-28e fiber
Connector Type Custom specified
Power Handling (mW) 300

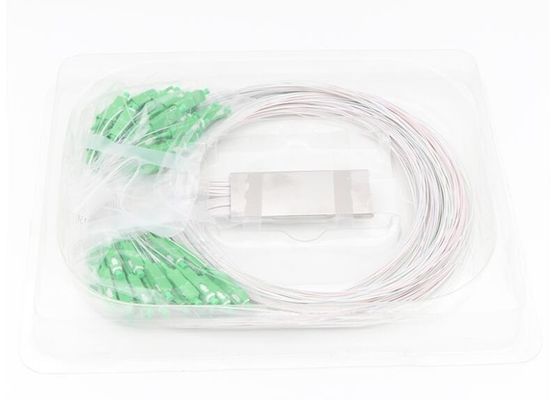

Inner packing

QTY(Blister Box/Girt Box)
10-50pcs
Inner packing
PP bag
Outer packing
Carton box

           Application
FTTH 1x2 1x4 1x8 1x16 SC UPC APC Connector Fiber Optic PLC Splitter 0
FTTH 1x2 1x4 1x8 1x16 SC UPC APC Connector Fiber Optic PLC Splitter 1
FTTH 1x2 1x4 1x8 1x16 SC UPC APC Connector Fiber Optic PLC Splitter 2
