Product Details:
|
Name: | GJYXFCH G657A SM 1 Core Fiber Optic FTTH Drop Cable 1KM / Fibra Drop | Wavelength: | 1260 To 1650nm |
---|---|---|---|
Type: | Fiber Optic Plc Splitter, 1x2 1x4 1x8 1x16 2x8 2x16 | Connector: | SC LC |
Cable Type:: | G657A1 Or As Customers' Order | Operating Temperation: | -40℃ To 85℃ |
No. Of Fiber: | 2 4 8 16 | Usage: | FTTH |
Place Of Origin: | Hubei, China | Jacket: | PVC / LSZH |
High Light: | GJYXFCH Fiber Optic Cable 1650nm,24 Core Armored Outdoor Aerial Cable |

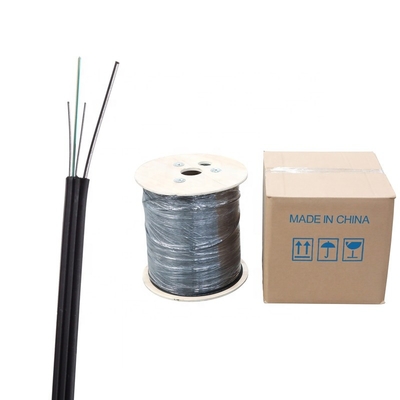

GJYXFCH single mode fiber optic cable 24 core armored outdoor aerial cable
Description:
Fiber Optic Drop Cable access to the use of dish-shaped optical cable (indoor wiring) is the optical communication unit (fiber) in the center, placed on both sides of two parallel non-metallic reinforcement (FRP) or metal reinforcing member, and finally extrusion black or color poly Vinyl chloride (PVC) or LSZH (LSZH, low smoke, halogen-free, flame retardant) jacket.
Features :
* FTTH cable, 1, 2, 4 cores
* Soft and flexible, good bending performance
* Excellent tensile and crush performance
* Steel wire used for self-supporting
* Optical fiber cores are positioned in the center, two strength member are placed at the two sides.
* Strength member: FRP or KFRP or steel wire
* Jacket: LSZH or PVC
* Access network, FTTH cable (Fiber to the home)
* Used in indoor cabling, and end users directly cabling;
* Used as access building cable.
Characteristics:
Special low-bend-sensitivity ber provides high bandwidth and excellent communication transmission property.
Two parallel FRP strength members ensure good performance of crush resistance to protect the ber.
Single steel wire as the additional strength member ensure good performance of tensile strength.
Simple structure, light weight and high practicability.
Novel _x0019_ute design, easily strip and splice, simplify the installation and maintenance.
Low smoke, zero halogen and _x0019_ame retardant sheath.
Item
|
Technology parameter
|
Cable Type
|
Drop Cable
|
Cable Count
|
1 2 4 6 8 12
|
Fiber Color
|
Green, Yellow
|
Fiber Type
|
9/125 (G657A1)
|
Outer Sheath Color
|
Black or white
|
Sheath Material
|
LSZH
|
Cable Dimension (mm)
|
3.0(±0.1)*2.0(±0.1); 5.2(±0.1)*2.0(±0.1)
|
Cable weight (Kg/km)
|
15
|
Min. bending radius (mm)
|
10 (Static) 25 (Static) 30 (Static) 60 (Static)
|
Attenuation (dB/km)
|
≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm
|
Short term tensile (N)
|
200; 600
|
Crush resistance (N/100mm)
|
1000; 2200
|
Operation temperature (℃)
|
-20~+70℃
|
G.652D Single Mode Optical Fiber (B1.3)
|
|||
Item
|
Standard
|
Unit
|
|
Attenuation
|
1310nm
|
≤0.35
|
dB/km
|
1383nm
|
≤0.33
|
dB/km
|
|
1550nm
|
≤0.21
|
dB/km
|
|
1625nm
|
≤0.24
|
dB/km
|
|
Dispersion
|
1288nm~1339nm
|
|D|≤3.4
|
ps/(nm·km)
|
1271nm~1360nm
|
|D|≤5.3
|
ps/(nm·km)
|
|
1550nm
|
≤17.8
|
ps/(nm·km)
|
|
Zero-dispersion wavelength
|
1300~1322
|
(nm)
|
|
Zero-dispersion slope
|
≤0.091
|
ps/(nm2•km)
|
|
PMD
|
PMD single fiber
|
≤0.15
|
ps/√km
|
PMD Q links
|
≤0.08
|
ps/√km
|
|
MDF
|
1310nm
|
9.2±0.4
|
um
|
Cladding diameter
|
125±1.0
|
μm
|
|
Cladding non-circularity
|
≤0.8
|
%
|
|
Core-cladding concentricity error
|
≤0.6
|
μm
|
|
Coating diameter
|
245±10
|
μm
|
|
Cladding/coating concentricity error
|
≤10.0
|
μm
|
|
Cut-off wavelength
|
1.18~1.33
|
μm
|
|
Macrobend attenuation
(ф 50mm, 100 cycles)
|
1550nm
|
≤0.05
|
dB
|
1625nm
|
≤0.05
|
dB
|
|
Bending radius
|
≥5
|
m
|
|
Dynamic fatigue parameters
|
≥20
|
nd
|
|
Additional Attenuation
@1310nm &
@1550nm
|
Temperature cycling test:
(-60℃~85℃, 3 cycles) |
≤0.03
|
dB/km
|
Water soak test:
(23℃ for 30 days) |
≤0.03
|
dB/km
|
|
Damp heat test:
(85℃, 85%RH for 30 days) |
≤0.03
|
dB/km
|
|
Thermal aging test (85℃ for 30 days)
|
≤0.03
|
dB/km
|
|
Warm water soak test: (60℃ for 15 days)
|
≤0.03
|
dB/km
|

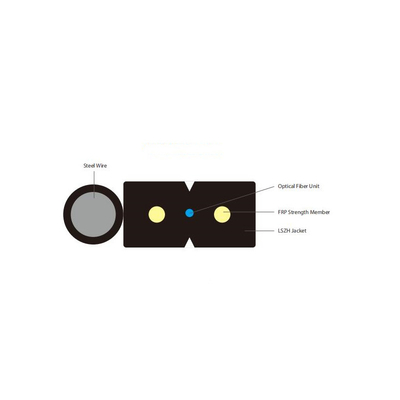

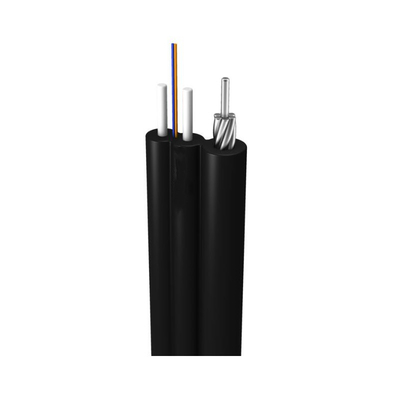

Drawings of GJYXFCH :
