Product Details:
|
| Conductors: | ≥10 | Type: | Cat 1 |
|---|---|---|---|
| Color: | Black | Fiber Count: | 12 Cores |
| Strength Member: | FRP | Fiber Type: | SM G652D |
| Product Name: | 6-144 Core Optical Fiber Cable | Jacket: | PE |
| OEM: | Available | Package: | 3km/4km/5km Per Drum |
| Place Of Origin: | Hubei, China | Application: | Outdoor Aerial |
| High Light: | SM G652D ADSS Fiber Optic Cable,OEM Multimode ADSS Fiber Optic Cable |
||
Product Description:

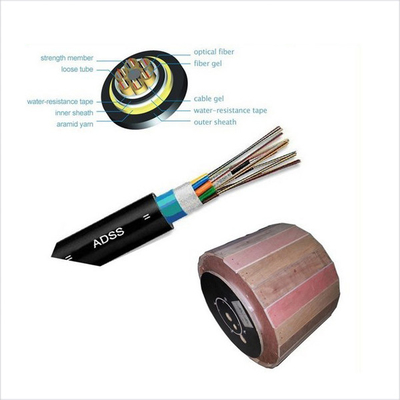

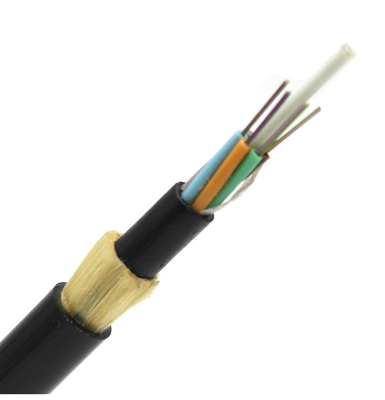

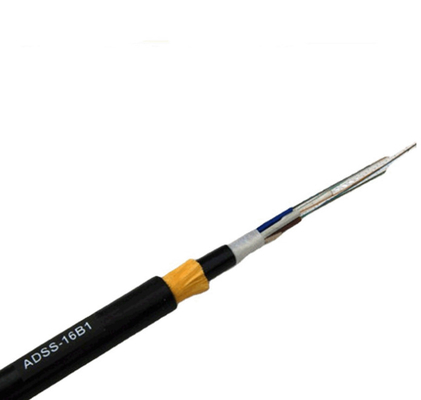

ADSS cable is aerial optical fiber cable with loose tubes stranded inside.
Fibers are positioned into a loose tube made of high modulus plastics.
The tubes are filled with a water-resistant filling compound.
The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound, it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
ADSS cable Technical Parameters:
| Model Number | ADSS |
| Type | Coaxial |
| Number of Conductors | ≥ 10 |
| Application | Aerial fiber cable |
| Function | Delivery signal light |
| Certification | ADSS pass ISO9001,UL, TIL, CE |
| Sheath material | PE or AT for adss fiber optic cable |
| Fiber type | OS1/OS2,OM1,OM2,OM3,OM4 |
| Length per roll | 2km/3km/4km/5kmADSS fiber |
| Fiber count | 2core to 288 core |
| Strength member | FRP |
