Product Details:
|
| Conductors: | ≥10 | Span Length: | ≥100m |
|---|---|---|---|
| Color: | Black | Structure: | Gil Filled Multi Loose Tube |
| Central Strength: | FRP&Steel Wire | Fiber Type: | SM G652D |
| Sheath: | LLPE | Application: | Aerial Outdoor |
| OEM: | Available | Package: | 3km/4km/5km Per Drum |
| High Light: | 300m Aramid Yarn Fiber Optic Cable,300m Aramid Yarn Fiber Optic Cables,ADSS 500m Fibre Optic Cable |
||
Aramid Yarn Fiber Optic Cable Span 200m 300m 500m ODM OEM Adss Fiber Optic Cable G.652D Aerial Communication Cable
Product Description:

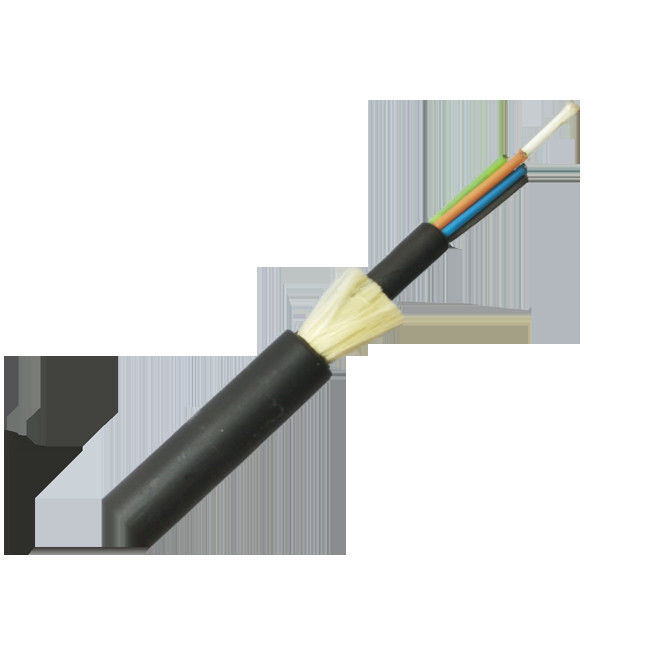

ADSS armored fiber optic cables feature loose tube wrapped with a layer of PSP longitudinally, excellent crush-resistant performance. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight.The cable is completed with a single polyethylene (PE) sheath. It's suitable for installation in aerial or duct environment for communication between bureaus, metropolitan network, access network and is especially suitable for high-density fibers is expected.
|
Cable Type
|
Fibre Opitc Cable
|
Fiber Count
|
4~288 cores
|
|
Construction
|
Stranded Loose Tube
|
Fiber Type
|
Singlemode G.652D
|
|
Inner/Outer Jacket Material
|
PE
|
Jacket Color
|
Black
|
|
Cable Diameter
|
14.0mm
|
Weight
|
155kg/km
|
|
Strength Member
|
FRP
|
Span
|
100m
|
|
Rated Tensile Strength
|
34KN
|
Modulus of Elasticity
|
12.5KN/mm2
|
