Product Details:
|
| Model Number: | ADSS-24B | Product Name: | ADSS Fiber Optic Cable |
|---|---|---|---|
| Conductors: | ≥10 | Fiber Mode: | Single Mode |
| Fiber Count: | 12 Cores | Fiber Type: | SM G652D |
| Cable Color: | Black | Application: | Aerial Outdoor |
| Jacket Material: | PE | Package Length: | 5KM/Wooden Drum |
| Strength Member: | FRP | ||
| High Light: | 12 Core ADSS Aerial Single Mode,ADSS 12 Core Single Mode Fiber Optic Cable,12 Core 100m ADSS Fiber Optic Cable |
||

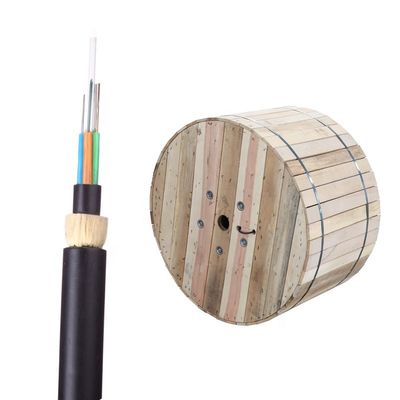

ADSS 12 Core 100m Span All Dielectric Self-support Aerial Fiber Optic Cable
Product Description:
ADSS fiber optic cable is ideal for installation in distribution as well as transmission environments, even when live-line installations are required. As its name indicates, there is no support or messenger wire required, so installation is achieved in a single pass, making ADSS an economical and simple means of achieving a fiber optic network. AFL manufactures its own line of attachment hardware as well as supplies formed wire fittings when preferred.
Features:
Can be installed without shutting offthe power.
ExcellentAT performance. The maximum inductive at the operating point ofAT jacket can reach 25kV.
Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.
Large span lengths and the largest span is over 200m.
Good performance oftensile strength and temperature.
The design life span is over 30 years.
Specifica Parameter:
|
Product Name
|
ADSS fiber optic cable
|
|
Fiber Count
|
24 core
|
|

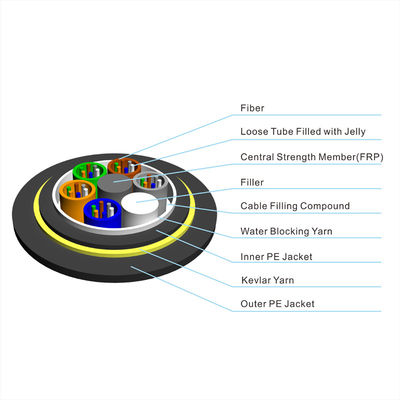

Construction
|
Loose tube
|
|
Fiber Type
|
Single Mode
|
|
Outer Jacket Material
|
PE
|
|
Jacket Color
|
Black
|
|
Cable Diameter
|
9.5mm
|
|
Weight
|
100KG/KM
|
|
Central Strength Member
|
FRP
|
|
Application
|
Aerial and Duct
|
|
Bending Radius
|
10D/20D(mm)
|
|
Sample status
|
We can provide free sample
|
