Product Details:
|
| Name: | FTTH Drop Cable 8 Core Optic Fiber Cable Self-supporting Fiber Optic Drop Ftth Cable | Wavelength: | 1260 To 1650nm |
|---|---|---|---|
| Type: | Fiber Optic Plc Splitter, 1x2 1x4 1x8 1x16 2x8 2x16 | Connector: | SC LC |
| Cable Type:: | G657A1 Or As Customers' Order | Operating Temperation: | -40℃ To 85℃ |
| No. Of Fiber: | 2 4 8 16 | Usage: | FTTH |
| Application: | FTTH, FTTH FTTB FTTX Network, OUTDOOR, Telecommunication, Telecom | Color: | Customized |
| High Light: | 12 Core Optical Cable Fiber,Outdoor Aerial Ftth Optical Cable Fiber,1650nm Self Supporting FTTH Drop Cable |
||

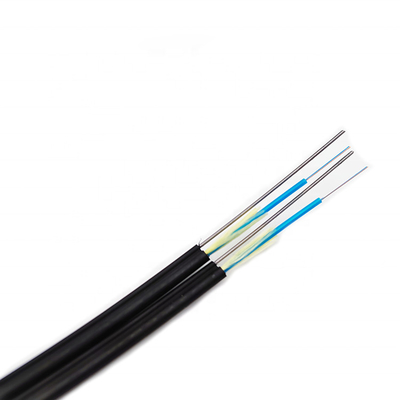

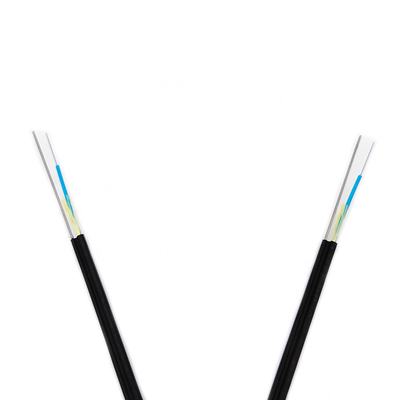

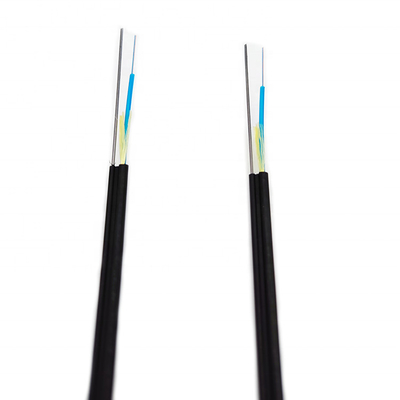

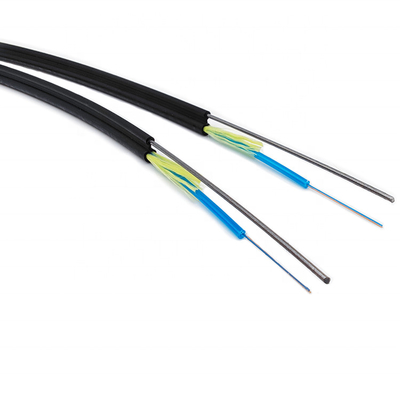

Self Supporting Outdoor Aerial Ftth 24 12 Core Optical Cable Fiber
Optical Characteristics
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation (+20°C) |
@850nm | ≤3.5 dB/km | ≤3.5 dB/km | ||
| @1300nm | ≤1.5 dB/km | ≤1.5 dB/km | |||
| @1310nm | ≤0.45 dB/km | ≤0.50 dB/km | |||
| @1550nm | ≤0.30 dB/km | ≤0.50dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | |||
Fiber Parameters
| No. | Items | Unit | Specification | |
| G.657A1 | ||||
| 1 | Mode Field Diameter | 1310nm | μm | 9.0±0.4 |
| 1550nm | μm | 10.1±0.5 | ||
| 2 | Cladding Diameter | μm | 124.8±0.7 | |
| 3 | Cladding Non-Circularity | % | ≤0.7 | |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |
| 5 | Coating Diameter | μm | 245±5 | |
| 6 | Coating Non-Circularity | % | ≤6.0 | |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 | |
| 9 | Attenuation (max.) | 1310nm | dB/km | ≤0.35 |
| 1550nm | dB/km | ≤0.21 | ||
| 10 | Macro-Bending Loss | 1turn×10mm radius @1550nm |
dB | ≤0.75 |
| 1turn×10mm radius@1625nm |
dB | ≤1.5 | ||
Company Profile
Wuhan Weiruo Communication Technologies Co., Ltd. was founded in 2001, which is a leading independent optic fiber cable manufacturer located in Wuhan of China. With 20 years of development, Weiruo Communication has grown up to be an indoor & outdoor optic fiber cable and ODN accessories professional manufacturer serving to the telecom industry. The plant covers an area of 60,000 square meters, which is equipped 19 indoor and 21 outdoor OFC production lines. The annual production capacity of OFC is around 500,000 km (around 10 million fiber core km). Vision: Weiruo Communication adheres to the philosophy of "quality for survival, innovation for development", and has established an efficient management, R&D, marketing and manufacturing team to provide the first-class products and perfect one-stop solution with professional technology and services. We have first-class production line and strict quality management system. We can give customers the most competitive price to meet your budget. We have big production capacity to guarantee fast delivery and on-time shipment.
We have professional team to provide comprehensive one-stop service for you.
Q1: Where is your factory located How can I visit there?
A1: Our factory is located in Shenzhen City, Guangdong Province, China.All our clients, from home or abroad, are warmly welcome to visit us.
Q2: How many years experience in producing?
A2: More than 15 years,and our engineers have more than 20 years product experience.
Q3: Can provide sample to us?
A3: Yes,sample below 30m can be provided freely,but you need pay freight cost.
Q4: How is quality for your fiber optic cable?
A4: Firstly,we use top quality raw material(best fiber and friendly sheath material etc),Then surveyor will do the test,such as raw material quality test,fiber optic attenuation test and high or low temperature test etc.
Q5: How to do if don't need your company brand name?
A5: We have own factory,OEM is available;If need other brand name,it is okay.please give us letter of authorization.
