Outdoor Aerial ADSS Fiber Optic Cable Single Mode 24 48 96 Core

Outdoor Aerial ADSS Fiber Optic Cable Single Mode 24 48 96 Core
Outdoor Aerial ADSS Fiber Optic Cable Single Mode 24 48 96 Core Outdoor Aerial ADSS Fiber Optic Cable Single Mode 24 48 96 Core Outdoor Aerial ADSS Fiber Optic Cable Single Mode 24 48 96 Core Outdoor Aerial ADSS Fiber Optic Cable Single Mode 24 48 96 Core

Large Image :  Outdoor Aerial ADSS Fiber Optic Cable Single Mode 24 48 96 Core

Product Details:
Place of Origin: China
Brand Name: Weiroct
Certification: ISO-9001
Model Number: ADSS-24-100S
Payment & Shipping Terms:
Minimum Order Quantity: 1KM
Price: USD
Packaging Details: 3KM/Drum
Delivery Time: 10~20 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 Kilometre / Month

Outdoor Aerial ADSS Fiber Optic Cable Single Mode 24 48 96 Core

Description
Conductors: ≥10 Type: Cat 1
Color: Black Fiber Count: 24 Cores
Strength Member: FRP Cable Diameter: ≥9.5mm
Product Name: 6-144 Core Optical Fiber Cable Jacket: PE
Package: 3km/4km/5km Per Drum Place Of Origin: Hubei, China
High Light:

Outdoor Aerial ADSS Fiber Optic Cable

,

96 Core ADSS Fiber Optic Cable

,

ADSS-24-100S

Outdoor Aerial Single Mode ADSS 24 48 96 Core ADSS Fiber Optic Cable



Products Description



ADSS cable is made of non-metallic material and self-supporting with the aerial power transmission line. The tension resistance material is aramid yarn with high elasticity modules. Because of this material, ADSS can withstand the larger tension of installation (Max. span: 1500m), ice( Max.ice thickness: ≥20mm ) and weed pressure(Max. wind speed: 35m/s).
Technical Data
ITEM
Technical Parameters
Fiber count
12 core to 144 core
Construction
PBT loose Tube
Fiber Type
Single Mode
Outer Jacket Material
PE
Jacket Color
Black
Central Strength Member
FRP
Application
Aerial and Duct
Products Features
* Can be installed without shutting off the power
* Excellent AT performance. The maximum inductive at the operating point of AT sheath can reach 25kV.
* Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.
* Large span lengths and the largest span is over 1000m.
* Good performance of tensile strength and temperature.
* The design life span is over 30 years.


Application

*Outdoor Aerial/Direct Buried

Details Images

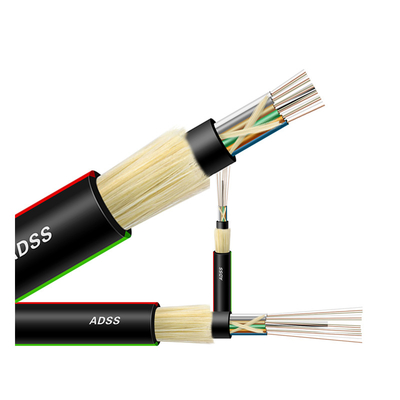

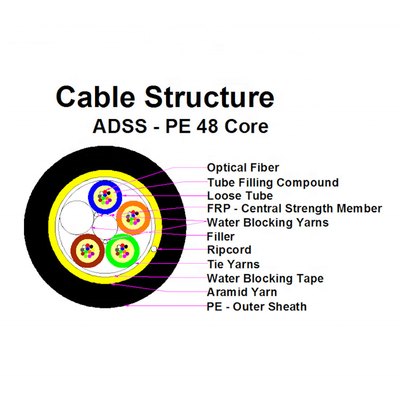

Outdoor Aerial ADSS Fiber Optic Cable Single Mode 24 48 96 Core 0Outdoor Aerial ADSS Fiber Optic Cable Single Mode 24 48 96 Core 1

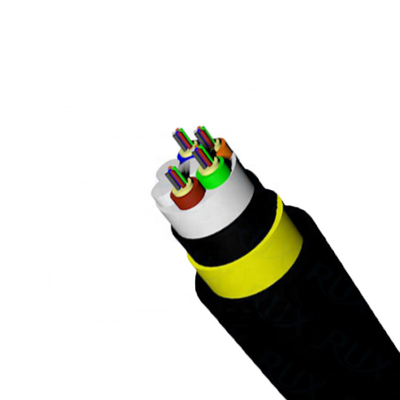

Outdoor Aerial ADSS Fiber Optic Cable Single Mode 24 48 96 Core 2

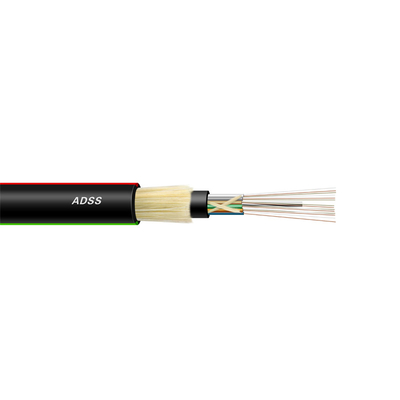

Outdoor Aerial ADSS Fiber Optic Cable Single Mode 24 48 96 Core 3
