Product Details:
|
| Jacket: | LSZH/PVC/HDPE | Outer Sheath Color: | Orange Black |
|---|---|---|---|
| Fiber Type: | G.657A1 G.657A2 | Application: | Telecommunication |
| Strength Member: | Aramid Yarn/Metal Wire | Core: | 4/6/8/12 |
| Product Name: | Indoor Fiber Optic Cable | ||
| High Light: | ISO9001 Dual Core Cable,LSZH Jacket Dual Core Cable,Aramid Yarn Indoor Fiber Optic Cable |
||

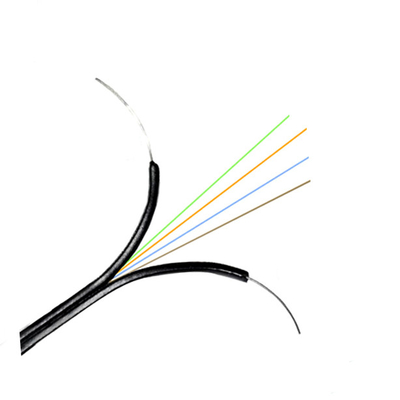

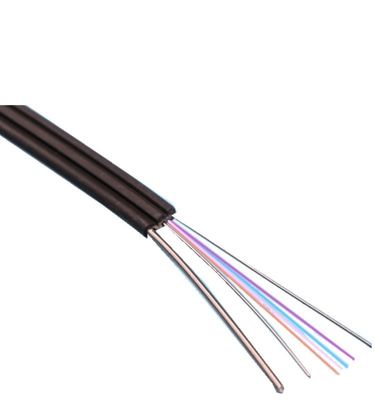

G657A1 Fiber Optical Cable GJXH Dual Core With Lszh Jacket FTTH
Description

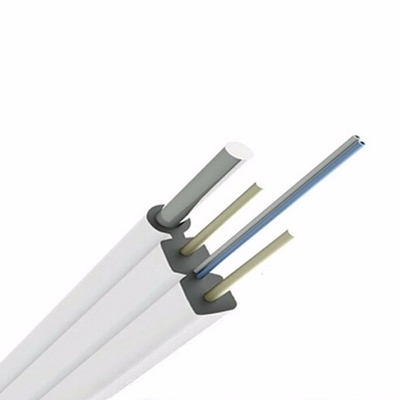

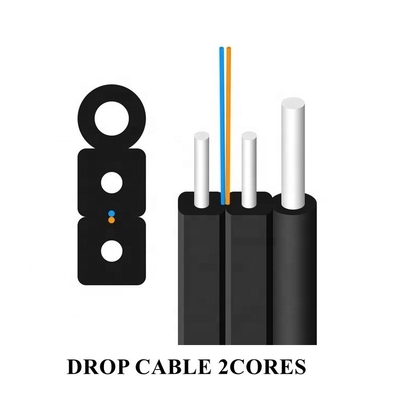

The optical fiber unit is positioned in the central. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. Then, the cable is completed with a black or color LSZH or PVC sheath..
Characteristics
--- Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
---Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
---Simple structure, light weight and high practicability
---Novel flute design, easily strip and splice, simplify the installation and maintenance
Cable Performance
| Fiber Count | fiber style | cable weight (kg/km) | Tensile Strength(N) | Crush Resistance (N) | Bending Radius | |||
| (D:cable radius) | ||||||||
| short term | long term | short term | Long term | static | dynamic | |||
| 1 | B1 | 9.2 | ≥100 | ≥60 | ≥1000 | ≥500 | 30D | 60D |
| B1.3 | 30D | 60D | ||||||
| B6a | 15D | 30D | ||||||
| B6b | 10D | 25D | ||||||
| 2 | B1 | 9.2 | ≥100 | ≥60 | ≥1000 | ≥500 | 30D | 60d |
| B1.3 | 30D | 60D | ||||||
| B6a | 15D | 30D | ||||||
| B6b | 10D | 25D | ||||||
| 4 | B1 | 9.2 | ≥100 | ≥60 | ≥1000 | ≥500 | 30D | 60D |
| B1.3 | 30D | 60D | ||||||
| B6a | 15D | 30D | ||||||
| B6b | 10D | 25D | ||||||
Other performance
1. Strength member: FRP or steel wire
2. Jacket: LSZH or PVC
3. Application: Access network, FTTH cable (Fiber to the home), used in indoor cabling,
Payment
| Payment terms |
| 1) Accepted small order,OEM,etc. |
| 2) Ordinary delivery time: 5-10 days, according to order quantity. |
| 3) Ready to shipping by sea ,DHL , Fedex, EMS, ect. as soon as we receive payment |
| 4) Accept T/T 100% advance. Western Union, PayPal. |
|
5) Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility
|
