Product Details:
|
| Single-mode Fiber: | G657A1/ G657A2 | Fiber Count: | 24 Cores |
|---|---|---|---|
| FRP: | 0.5mm | Insulation Material: | PE |
| Tight Buffer: | 6pcs | Aramid Yarn: | 12 Standard Yarn |
| OD: | 10-10.5mm | Application: | Aerial And Duct |
| Fiber Type: | OM3 | Package: | 2KM/Roll |
| Conductors: | ≥10 | Place Of Origin: | Hubei, China |
| High Light: | GJFJV Fiber Optic Cable,FRP 0.5mm Fiber Optic Cable,Multimode LSZH Sheath Fiber Optic Cable |
||

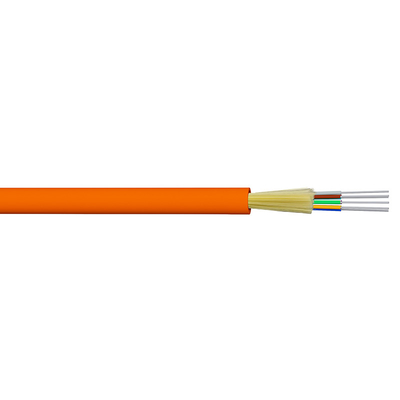

GJFJV Simplex Cable Tight Buffer PVC/LSZH Sheath Singlemode Multimode Fiber Optic Cable
Product Description:

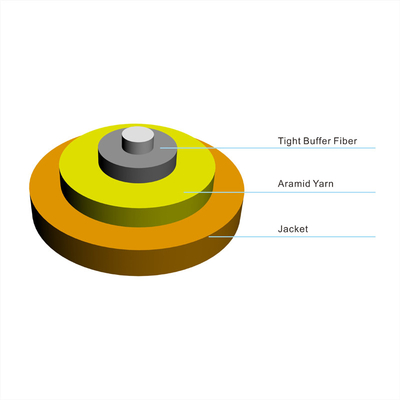

GJFJV Simplex cable use single 900um or 600um tight buffer fiber as optical commucation medium , the tight buffer fiber wrapped
with a layer of aramid yarn as strength member uinits, and the cable is completed with a PVC or LSZH (low
smoke ,Zero halogen,Flame-retardant ) jacket.
Products Features:
Small diameter, light weight,flame retardant,excellent strippability
Low-attenuation, High flexibility
Cable diameter
| MPC-02 | MPC-04 | MPC-06 | MPC-08 | MPC-10 | MPC-12 | |
| Cable Diameter(mm) | 4.1±0.25 | 4.8±0.25 | 5.1±0.25 | 6.2±0.25 | 6.5±0.25 | 6.8±0.25 |
| Cable Weight(kg/km) | 12 | 20 | 24 | 29 | 32 | 35 |
| Tight Buffer Fiber Diameter | 900±50μm | |||||
G652d optic fiber Mechanical Characteristics
| Tensile Strength | Long Term | 80N | 60 | 50 |
| Short Term | 150N | 120 | 100 | |
| Crush Resistance | Long Term | 100N/100mm | 100N/100mm | 100N/100mm |
| Short Term | 500N/100mm | 500N/100mm | 500N/100mm | |
| Bending Radius | Dynamic | 20XD | 20XD | 20XD |
| Static | 10XD | 10XD | 10XD |
