Indoor Dielectric Fiber Optic Cable , 24 72 Core FTTH Fiber Optic Cable

Large Image : Indoor Dielectric Fiber Optic Cable , 24 72 Core FTTH Fiber Optic Cable

Product Details:

Place of Origin:	China
Brand Name:	Weiroct
Certification:	ISO-9001
Model Number:	GJFZY

Payment & Shipping Terms:

Minimum Order Quantity:	1KM
Price:	USD
Packaging Details:	2KM/Roll/Carton Box
Delivery Time:	5~20 DAYS
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2000 Kilometre / Month

Contact Now

Indoor Dielectric Fiber Optic Cable , 24 72 Core FTTH Fiber Optic Cable

Description

Conductors:	≥10	Fiber Model:	G657A2
Outer Sheath:	LSZH-FRP	Application:	Telecommunication
Strength Member:	FRP	Outer Jacket:	LSZH
Core:	72 Cores	Certificate:	CE/ROHS/ISO9001
Fiber:	G652D, 9/125, G657A, OM1, OM2, OM3	Cable Color:	Can Be Designed
High Light:	Indoor Dielectric Fiber Optic Cable , All Dielectric Fiber Optic Cable , 72 Core FTTH Fiber Optic Cable

Indoor All-Dielectric Ftth 24 72 Core Fiber Optic Cable Gjfzy

Product Description

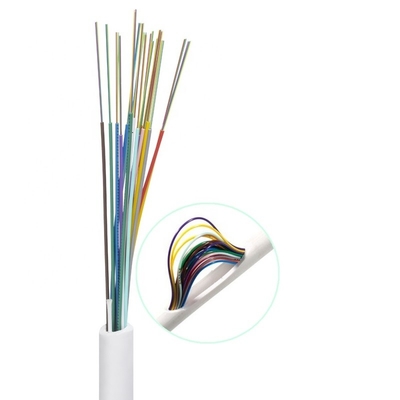

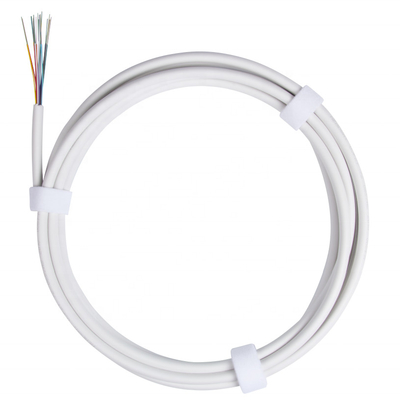

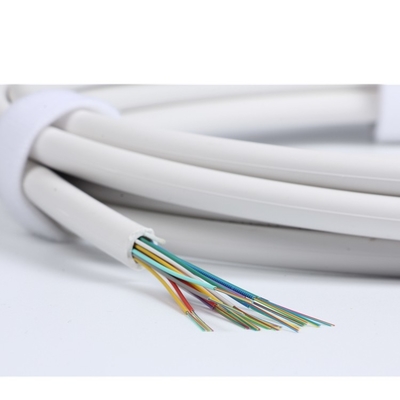

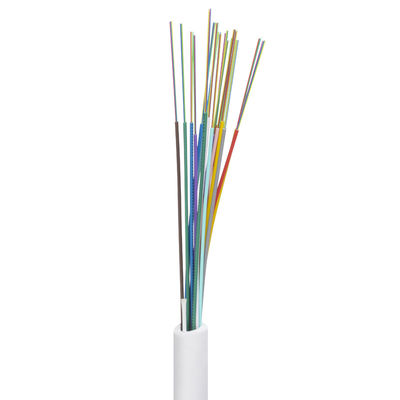

GJFZY is a new type of detachable indoor optical cable. Its structure consists of several colored optical fibers embedded in a loose sleeve made of LSZH to form an optical unit. Then several optical units are combined together. Finally, the LSZH jacket is extruded and two FRPs are placed symmetrically in the jacket.

Optical Bundle Drop Cable Feature

All-Dielectric, FRP Strenghthen, LSZH/LSOH Sheath, PBT Loose Tube, Optical fiber Bundle Drop Cable

CPR Certificate No.: 1008-CPR-MC 69261230 0001

Optic Fiber: G652D or as request

Fiber Count: 4 core, 12 core, 24 core, 48 core, 96 core, 144 core or as request.

Compound: Fiber Jelly (with/ without)

Outer Sheath: low smoke zero halogen (LSZH, LSOH)

strengthen member: parallel FRP, non-metal

Performance Indicators

Application: FTTX Network,MetropolitanAreaNetwork,and Access Network

Laying Method: indoor cabling

For certificate or details, please kindly Send us Inquiry or Contact us

Guifeng Zhou (Alyssa)

Zhejiang Headway Communication Equipment Co., Ltd.

Skype: zhouguifeng12

Phone/WeChat/WhatsApp:+8615977189345

Fiber Optic Cable Factories, CE ISO TLCCertificates

Fiber Model			G.657A2
Module	Material		LSZH
	Thickness		0.17(±0.02)mm
	Diameter		0.9(±0.05)mm
Strength Member	Material		FRP
	Diameter		1.0(±0.05)mm
	No.		2
Outer Sheath	Material		LSZH-FR
	Color		White
Cable Diameter			10.5±0.5		11.5±0.5
Max. allowable tension (Short-term)			600N
Max. allowable tension (Long-term)			200N
Crush resistance test			1000N/10cm
Min. bending radius		Static	105mm	115mm
		dynamic	210mm	230mm
Temperature range (℃)		Installation	-5~+60
		Transport&Storage	-40~+70
		Operation	-5~+60
