Product Details:
|
| Single-mode Fiber: | G657A1/ G657A2 | Jacket Color: | Yellow |
|---|---|---|---|
| Fiber Count: | 24 Cores | FRP: | 0.5mm |
| Jacket: | LSZH | Tight Buffer: | 24pcs |
| Aramid Yarn: | 16 Standard Yarn | OD: | 10-10.5mm |
| Application: | Indoor | Fiber Type: | OM1 |
| Model Number:: | GJFJH | Place Of Origin: | Hubei, China |
| High Light: | 10.5mm Single Mode Optical Fiber,GJFJH Single Mode Optical Fiber,24pcs Tight Buffer Fiber |
||

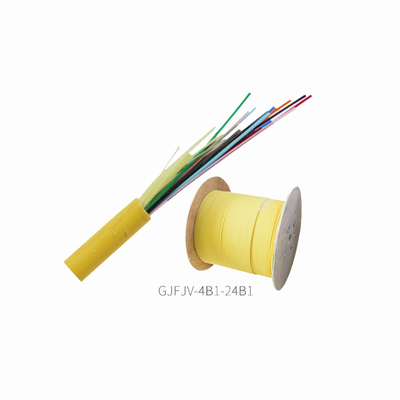

Indoor optic cable GJFJH 12 24core single mode G652D G657A fiber optic cable

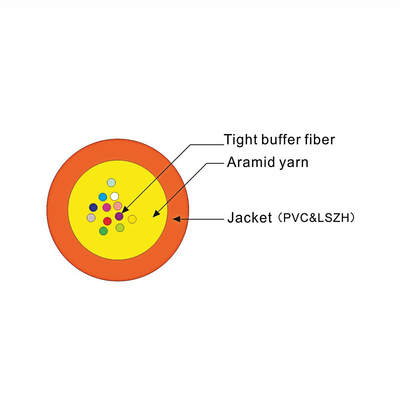

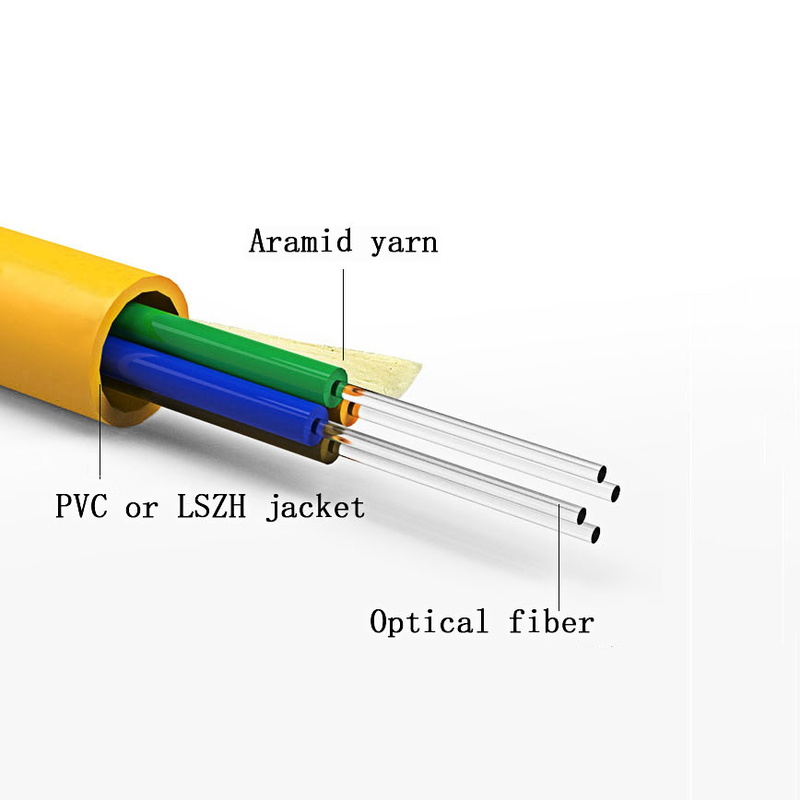

Product Construction
Fiber:
250µm color fibers
Strength Member:
Aramid Yarn
Outer Jacket:
Thermoplastic urethane or UV and Flame resistant LSZH jacket
Features
Good mechanical and environmental characteristics.
Excellent abrasion resistance and cold temperature workability.
Solf, flexible, easy to lay and splice, and with big capacity transmission.
Applications
Used in access network oras access cable from outdoorto indoor in customer premises network.
Used as access building cable in premises distribution system.
| Fiber Type | Attenuation | Overfilled launch Bandwidth | Effective Modal Bandwidth | 10GB/S Ethernet link length | Min Bending Radius | |
| Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | |
| Unit | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | 16 | ||||
| G657A1 | 0.36/0.22 | 10 | ||||
| G657A2 | 0.36/0.22 | 7.5 | ||||
| 50/125 | 3.0/1.0 | ≥500/500 | 30 | |||
| 62.2/125 | 3.0/1.0 | ≥200/500 | 30 | |||
| OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 30 | |
| OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 30 | |
| B1-OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 7.5 | |
| B1-OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 7.5 | |
Structure and Technical Specfications GJFJH(LSZH)
| Cable Count |
Cable Diameter (mm) |
Cable Weight (kg/km) |
Tensile Strength (N/100mm) |
Crush Resistance (N/100mm) | ||
| LSZH jacket | Short Term | Long Term | Short Term | Long Term | ||
| 1-2 | 3.0 | 12 | 1000 | 400 | 2200 | 1000 |
| 4-12 | 3.5 | 15 | 1000 | 400 | 2200 | 1000 |
| 12-24 | 4.2 | 20 | 1000 | 400 | 2200 | 1000 |
|
Fiber Count
|
Outside OD(mm)
|
Tight Buffer OD(mm)
|
Weightkg/km
|
Tensile Strength(N)
|
Crush Resistance(N/100mm)
|
Bending Radius(mm)
|
|||
|
2
|
3
|
0.9
|
15
|
600
|
200
|
1000
|
200
|
20D
|
10D
|
|
4
|
5
|
0.9
|
22
|
600
|
200
|
1000
|
200
|
20D
|
10D
|
|
6
|
5
|
0.9
|
23
|
600
|
200
|
1000
|
200
|
20D
|
10D
|
|
8
|
5.5
|
0.9
|
28
|
600
|
200
|
1000
|
200
|
20D
|
10D
|
|
12
|
6
|
0.9
|
38
|
600
|
200
|
1000
|
200
|
20D
|
10D
|
|
16
|
7.2
|
0.9
|
42
|
600
|
200
|
1000
|
200
|
20D
|
10D
|
|
24
|
8.3
|
0.9
|
58
|
600
|
200
|
1000
|
200
|
20D
|
10D
|
|
48
|
10
|
0.9
|
96
|
600
|
200
|
1000
|
200
|
20D
|
10D
|
