Product Details:
|
| Single-mode Fiber: | G657A1/ G657A2 | Jacket Color: | Yellow |
|---|---|---|---|
| No. Of Fiber: | 4/ 8/ 12/ 24 | Strength Member: | FRP |
| Jacket: | LSZH | Filler: | Aramid Yarn |
| Breakout Diameter: | 2.0mm/ 3.0mm | Application: | Indoor |
| Operate Temperature: | -40 To 80℃ | Model Number:: | GJBFJH |
| High Light: | 80 Deg Indoor Fiber Optic Cable,Aramid Yarn Filler Indoor Fiber Optic Cable,3.0mm Indoor Aerial Cable |
||

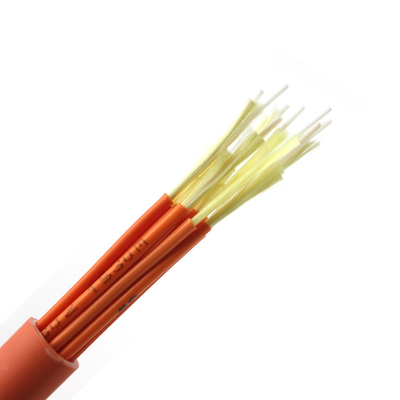

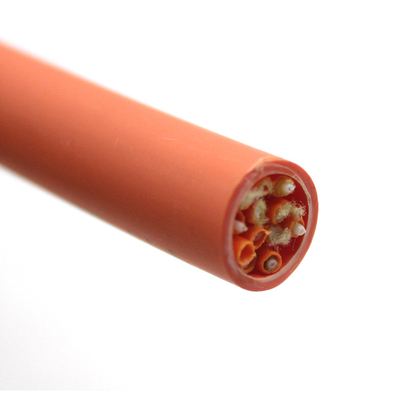

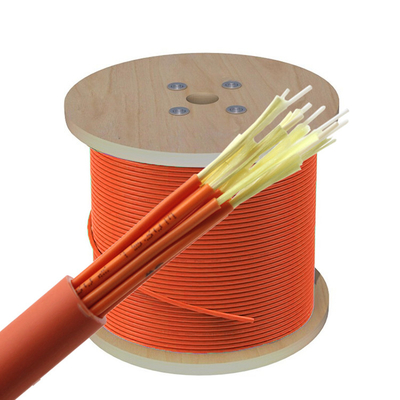

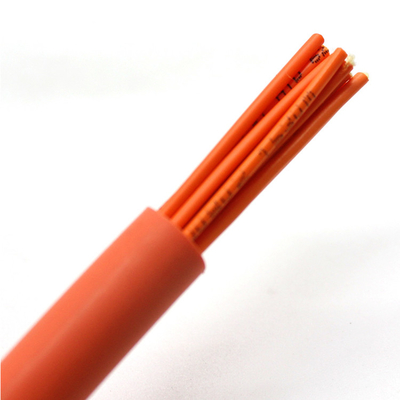

24 Core Fiber Optic Cable GJBFJH Single Mode SM G657A1 PVC LSZH Aerial Indoor Breakout Cable
Product Description:

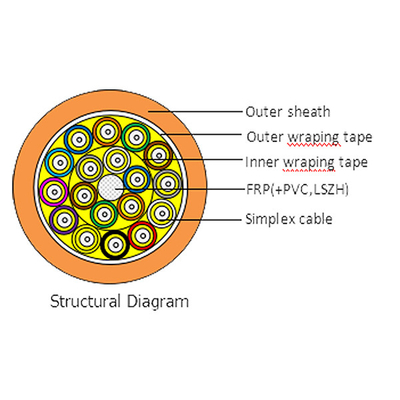

The type of simplex fiber optic cables are stranded around a central strength member, then Longitudinal wrapping tape, and the cable is completed with an outer sheath.
The flame-retardant property of this fiber optic cable meets the relevant standard.
The fiber optic cable supports high-capacity data transmission. For this type fiber optic cable, its outer sheath can be made of PVC, LSZH, or other agreed materials.
| Optical Characteristics | ||||
| Item | 62.5μm(OM1) 850nm/1300NM |
50μm(OM2) 850nm/1300NM |
50μm(OM3) 850nm/1300NM |
SM 1310nm/1550nm |
| Attenuation of maximum value(dB/km) | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | 0.4/0.3 |
| Attenuation of typical value(dB/km) | 3.5/1.5 | 3.0/1.0 | 3.0/1.0 | 0.38/0.25 |
| Main Performance | |||
| Items | Test Standard | Specified Value | Requirements |
| Tension | IEC 60794-1-2-E1 | See Technical Data | Additional attenuation: ≤0.1dB after test |
| Crush | IEC 60794-1-2-E3 | See Technical Data | Additional attenuation: ≤0.1dB after test |
| Impact | IEC 60794-1-2-E4 | R=300mm, 10Nm, one in 3 different places |
Additional attenuation: ≤0.1dB after test |
| Repeated Bending | IEC 60794-1-2-E6 | R=20*D | Additional attenuation: ≤0.1dB after test |
| Water Penetration | IEC 60794-1-2-F5 | Sample length=3m, Water height=1m, 24 hours |
No water leakage |
| Temperature Cycling | IEC 60794-1-2-F1 | ‘-40℃- +70℃ | Attenuation change: ≤0.05dB/kM after test |
| Technical Data | ||||||||
| Fiber count | Specifications(mm) | Weight(kg/km) | Tensile strength (N) | Crush resistance short/long term (N/100mm) | Bending radius(km) | |||
| 4 | 7.5 | 52 | 210 | 450 | 300 | 1000 | 10D | 20D |
| 24 | 14.8 | 185 | 1200 | 2400 | 300 | 1000 | 10D | 20D |
|
Fiber Count
|
Outside OD(mm)
|
Tight Buffer OD(mm)
|
Weightkg/km
|
Tensile Strength(N)
|
Crush Resistance(N/100mm)
|
Bending Radius(mm)
|
|||
|
2
|
3
|
0.9
|
15
|
600
|
200
|
1000
|
200
|
20D
|
10D
|
|
4
|
5
|
0.9
|
22
|
600
|
200
|
1000
|
200
|
20D
|
10D
|
|
6
|
5
|
0.9
|
23
|
600
|
200
|
1000
|
200
|
20D
|
10D
|
|
8
|
5.5
|
0.9
|
28
|
600
|
200
|
1000
|
200
|
20D
|
10D
|
|
12
|
6
|
0.9
|
38
|
600
|
200
|
1000
|
200
|
20D
|
10D
|
|
16
|
7.2
|
0.9
|
42
|
600
|
200
|
1000
|
200
|
20D
|
10D
|
|
24
|
8.3
|
0.9
|
58
|
600
|
200
|
1000
|
200
|
20D
|
10D
|
|
48
|
10
|
0.9
|
96
|
600
|
200
|
1000
|
200
|
20D
|
10D
|
