Product Details:
|
| Name: | GJYXCH-1B6 G657A2 1 Core Outdoor FTTH Optical Fiber Drop Cable With Messenger | Wavelength: | 1260 To 1650nm |
|---|---|---|---|
| Type: | Fiber Optic Plc Splitter, 1x2 1x4 1x8 1x16 2x8 2x16 | Connector: | SC LC |
| Cable Type:: | G657A1 Or As Customers' Order | Operating Temperation: | -40℃ To 85℃ |
| No. Of Fiber: | 2 4 8 16 | Usage: | FTTH |
| Model Number: | GJXFH | Place Of Origin: | Hubei, China |
| High Light: | Outdoor FTTH Fiber Optic Cable,1650nm FTTH Fiber Optic Cable,Soft FTTH Drop Cable |
||
1 core 2 cores 4core GJYXCH G657A1 G657A2 G652D FTTH indoor outdoor fiber optic cable
Description:

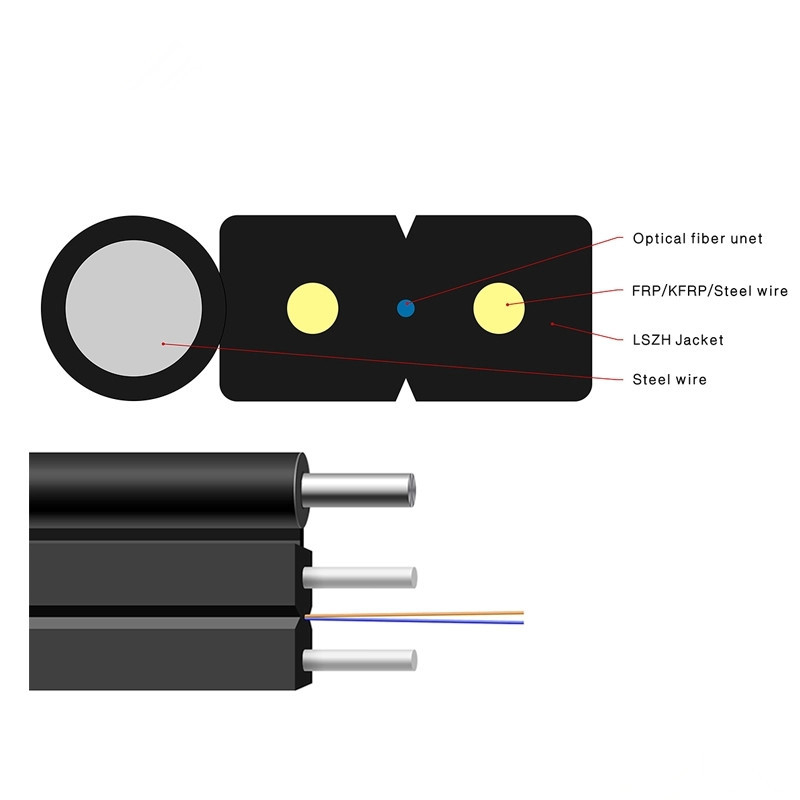

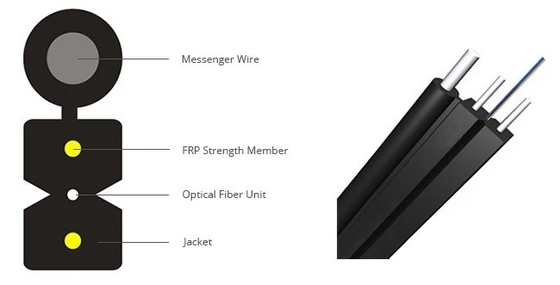

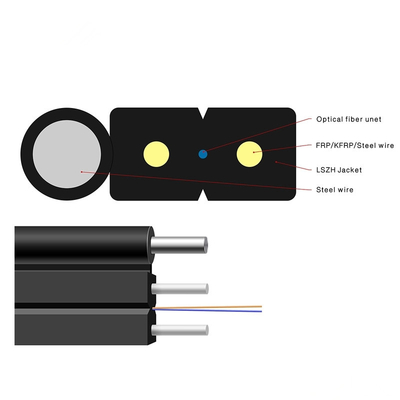

FTTH fiber optic cable is Fiber to Home, which used for linking the equipment and components in the fiber optic network. The fibers is between two parallel FRP / steel wire. Then it is self-supported by diameter 1.0mm steel wire. Finally this cable is completed with black or white LSZH sheath.
Features:
1.Soft and bendable, easy to deploy and maintenance.
2.Smaller diameter, Light weight, and high practicability.
3.Fiber reinforced plastic as the strength member ensures excellent anti-electromagnetic performance.
4.Environmental protection- Low smoke, zero halogen and flame retardant sheath.
Applications
1. Used in access network or as access cable from outdoor to indoor in customer premises network;
2. Used as access building cable in premises distribution system, especially used in indoor or outdoor
|
Item
|
Technology parameter
|
||
|
Cable type
|
GJYXCH-1B6
|
GJYXCH-2B6
|
GJYXCH-4B6
|
|
Cable specification
|
5.2×2.0
|
||
|
Fiber type
|
9/125 (G.657A2)
|
||
|
Fiber counts
|
1
|
2
|
4
|
|
Fiber color
|
Red
|
Blue, orange
|
Blue, orange, green, brown
|
|
Sheath color
|
Black
|
||
|
Sheath material
|
LSZH
|
||
|
Cable dimension mm
|
5.2(±0.2)*2.0(±0.2)
|
||
|
Cable weight Kg/km
|
Approx. 19.5
|
||
|
Min. bending radius mm
|
120
|
||
|
Min. bending radius mm
(Excluding messenger wire) |
10 (Static)
25 (Dynamic) |
||
|
Attenuation dB/km
|
≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm
|
||
|
Short term tensile N
|
600
|
||
|
Long term tensile N
|
300
|
||
|
Short term crush N/100mm
|
2200
|
||
|
Long term crush N/100mm
|
1100
|
||
|
Operation temperature ℃
|
-20~+60
|
||
|
Item
|
Technology parameter
|
||
|
Cable type
|
GJYXFCH-1B6
|
GJYXFCH-2B6
|
GJYXFCH-4B6
|
|
Cable specification
|
5.2×2.0
|
||
|
Fiber type
|
9/125 (G.657A2)
|
||
|
Fiber counts
|
1
|
2
|
4
|
|
Fiber color
|
Red
|
Blue, orange
|
Blue, orange, green, brown
|
|
Sheath color
|
Black
|
||
|
Sheath material
|
LSZH
|
||
|
Cable dimension mm
|
5.2(±0.2)*2.0(±0.2)
|
||
|
Cable weight Kg/km
|
Approx. 13.5
|
||
|
Min. bending radius mm
|
120
|
||
|
Min. bending radius mm
(Excluding messenger wire) |
10 (Static)
25 (Dynamic) |
||
|
Attenuation dB/km
|
≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm
|
||
|
Short term tensile N
|
230
|
||
|
Long term tensile N
|
110
|
||
|
Short term crush N/100mm
|
1000
|
||
|
Long term crush N/100mm
|
500
|
||
|
Operation temperature ℃
|
-20~+60
|
||
Technical Parameter of GJYXCH-1B6 G657A2 1 Core Outdoor FTTH Optical Fiber Drop Cable with Messenger
| Cable Type | Cable Diamter (mm) | Weight (kg/km) | Tensile strength(N) | Crush Resistance(N/100mm) | Minimum bending radius (mm) | |||
| Short-term | Long-term | Short-term | Long-term | Static | Dynamic | |||
| GJXFH-1 | 2.0*5.0 | 21 | 60 | 30 | 1000 | 300 | 15 | 30 |
| GJXFH-2 | 2.0*5.0 | 21 | 60 | 30 | 1000 | 300 | 15 | 30 |
| GJXFH-4 | 2.0*5.6 | 21.5 | 60 | 30 | 1000 | 300 | 15 | 30 |
| GJXH-1 | 2.0*5.0 | 21 | 60 | 30 | 1000 | 300 | 15 | 30 |
| GJXH-2 | 2.0*5.0 | 21 | 60 | 30 | 1000 | 300 | 15 | 30 |
|
G.652D Single Mode Optical Fiber (B1.3)
|
|||
|
Item
|
Standard
|
Unit
|
|
|
Attenuation
|
1310nm
|
≤0.35
|
dB/km
|
|
1383nm
|
≤0.33
|
dB/km
|
|
|
1550nm
|
≤0.21
|
dB/km
|
|
|
1625nm
|
≤0.24
|
dB/km
|
|
|
Dispersion
|
1288nm～1339nm
|
|D|≤3.4
|
ps/(nm·km)
|
|
1271nm～1360nm
|
|D|≤5.3
|
ps/(nm·km)
|
|
|
1550nm
|
≤17.8
|
ps/(nm·km)
|
|
|
Zero-dispersion wavelength
|
1300～1322
|
(nm)
|
|
|
Zero-dispersion slope
|
≤0.091
|
ps/(nm2•km)
|
|
|
PMD
|
PMD single fiber
|
≤0.15
|
ps/√km
|
|
PMD Q links
|
≤0.08
|
ps/√km
|
|
|
MDF
|
1310nm
|
9.2±0.4
|
um
|
|
Cladding diameter
|
125±1.0
|
μm
|
|
|
Cladding non-circularity
|
≤0.8
|
%
|
|
|
Core-cladding concentricity error
|
≤0.6
|
μm
|
|
|
Coating diameter
|
245±10
|
μm
|
|
|
Cladding/coating concentricity error
|
≤10.0
|
μm
|
|
|
Cut-off wavelength
|
1.18～1.33
|
μm
|
|
|
Macrobend attenuation
(ф 50mm, 100 cycles)
|
1550nm
|
≤0.05
|
dB
|
|
1625nm
|
≤0.05
|
dB
|
|
|
Bending radius
|
≥5
|
m
|
|
|
Dynamic fatigue parameters
|
≥20
|
nd
|
|
|
Additional Attenuation
@1310nm &
@1550nm
|
Temperature cycling test:
(-60℃～85℃, 3 cycles) |
≤0.03
|
dB/km
|
|
Water soak test:
(23℃ for 30 days) |
≤0.03
|
dB/km
|
|
|
Damp heat test:
(85℃, 85%RH for 30 days) |
≤0.03
|
dB/km
|
|
|
Thermal aging test (85℃ for 30 days)
|
≤0.03
|
dB/km
|
|
|
Warm water soak test: (60℃ for 15 days)
|
≤0.03
|
dB/km
|
|
