Storage/Operating Temperature: -40°C to + 70°C
Product Details:
|
Single-mode Fiber: | G657A1/ G657A2 | Jacket Color: | Yellow, Black |
---|---|---|---|
Fiber Count: | 12, 24 Cores | FRP: | 0.5mm |
Jacket: | LSZH | Tight Buffer: | 24pcs |
Aramid Yarn: | 16 Standard Yarn | OD: | 10-10.5mm |
Application: | Indoor | Fiber Type: | OM1 |
Type: | Indoor | ||
High Light: | 24pcs Tight Buffered Fiber,0.5mm FRP Tight Buffered Fiber,GJFJH Indoor Fiber Cable |

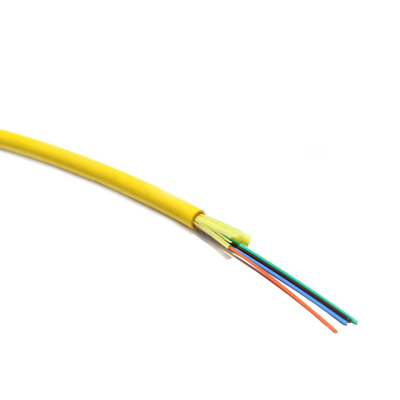

Indoor Tight Buffered Fiber Optic Cable GJFJH Indoor Distribution Cable
Product Description:
Cable Specification:
Item Name:Fiber optical cable GJFJV
Optical Mode:Singlemode/Multimode
Outder Diameter: 6.5mm-6.8mm
Working Life:More than 25 years
Application:Office/Comercial Building,optical test equipment,communication base station/distribution box,residential area
Products Features:
Small diameter,light weight,flame retardant,excellent strippability
Low-attenuation,High flexibility
Standards and Certificate:
Cable complies with Standard YD/T 769-2003.
Storage/Operating Temperature: -40°C to + 70°C
Certificate:CE ROHS ISO9001
Cable diameter:
MPC-02 | MPC-04 | MPC-06 | MPC-08 | MPC-10 | MPC-12 | |
Cable Diameter(mm) | 4.1+-0.25 | 4.8+-0.25 | 5.1+-0.25 | 6.2+-0.25 | 6.5+-0.25 | 6.8+-0.25 |
Cable Weight(kg/km) | 12 | 20 | 24 | 29 | 32 | 35 |
Tight Buffer Fiber Diameter | 900+-50μm |
Mechanical Characteristics:
Tensile Strength | Long Term | 80N | 60 | 50 |
Short Term | 150N | 120 | 100 | |
Crush Resistance | Long Term | 100N/100mm | 100N/100mm | 100N/100mm |
Short Term | 500N/100mm | 500N/100mm | 500N/100mm | |
Bending Radius | Dynamic | 20XD | 20XD | 20XD |
Static | 10XD | 10XD | 10XD |
Fiber Count
|
Outside OD(mm)
|
Tight Buffer OD(mm)
|
Weightkg/km
|
Tensile Strength(N)
|
Crush Resistance(N/100mm)
|
Bending Radius(mm)
|
|||
2
|
3
|
0.9
|
15
|
600
|
200
|
1000
|
200
|
20D
|
10D
|
4
|
5
|
0.9
|
22
|
600
|
200
|
1000
|
200
|
20D
|
10D
|
6
|
5
|
0.9
|
23
|
600
|
200
|
1000
|
200
|
20D
|
10D
|
8
|
5.5
|
0.9
|
28
|
600
|
200
|
1000
|
200
|
20D
|
10D
|
12
|
6
|
0.9
|
38
|
600
|
200
|
1000
|
200
|
20D
|
10D
|
16
|
7.2
|
0.9
|
42
|
600
|
200
|
1000
|
200
|
20D
|
10D
|
24
|
8.3
|
0.9
|
58
|
600
|
200
|
1000
|
200
|
20D
|
10D
|
48
|
10
|
0.9
|
96
|
600
|
200
|
1000
|
200
|
20D
|
10D
|
