Product Details:
|
| Jacket: | LSZH/PVC/HDPE | Outer Sheath Color: | Orange |
|---|---|---|---|
| Fiber Type: | OM3 | Application: | Telecommunication |
| Strength Member: | Aramid Yarn/Metal Wire | Core: | 4/6/8/12 |
| Product Name: | Low Friction 1/2/4 Cores FTTH Flat Fiber Optic Cable With Dropping Messenger Indoor Drop Cable | ||
| High Light: | LSZH Sheath FTTH Fiber Optic Cable,LSZH Sheath Flat Fiber Optic Cable,Low Friction FTTH Fiber Optic Cable |
||

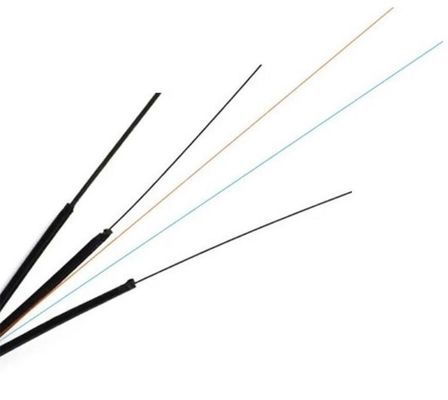

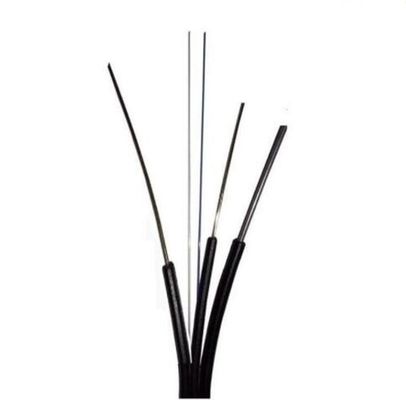

Low friction 1/2/4 Cores FTTH flat fiber optic cable with dropping messenger indoor drop cable
Desription:
Double parallel FRP or steel wires with good compressive properties and protect optical fibers.
Simple in structure, light in weight and universally used.
A single steel wire or stranded wire with additional reinforcing elements to make the cable with good anti-tensile properties.
Unique groove design, easy to be peeled, easy to be connected,installed and maintenance.
LSZH sheath is good for environmental protection.
Application:
1. Access network
2. FTTH cable (Fiber to the home)
3. Used in indoor cabling
4. Used for parch cord or pigtail
Features:
1. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
2. Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
3. Simple structure, light weight and high practicability.
4. LSZH Jacket: Low smoke, zero alogen and flame retardant sheath.
Fiber Parameters
| No. | Items | Unit | Specification | |
| G.657A1 | ||||
| 1 | Mode Field Diameter | 1310nm | μm | 9.0±0.4 |
| 1550nm | μm | 10.1±0.5 | ||
| 2 | Cladding Diameter | μm | 124.8±0.7 | |
| 3 | Cladding Non-Circularity | % | ≤0.7 | |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |
| 5 | Coating Diameter | μm | 245±5 | |
| 6 | Coating Non-Circularity | % | ≤6.0 | |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 | |
| 9 | Attenuation (max.) | 1310nm | dB/km | ≤0.35 |
| 1550nm | dB/km | ≤0.21 | ||
| 10 | Macro-Bending Loss | 1turn×10mm radius @1550nm | dB | ≤0.75 |
| 1turn×10mm radius@1625nm | dB | ≤1.5 | ||
Cable Parameters
| Items | Specifications | ||
| Fiber Count | 2 | ||
| Colored Coating Fiber | Dimension | 250±15μm | |
| Color | Blue, Orange | ||
| Strength Member | Dimension | 0.5mm | |
| Material | FRP | ||
| Self-Supporting Member | Dimension | 1.0mm | |
| Material | Steel Wire | ||
| Jacket | Dimension | 5.2±0.2mm×2.0±0.1mm | |
| Material | LSZH | ||
| Color | Black | ||
| cores no. | OD (outer dia.) |
Weight kg/km |
Tensile Strength Long /Short Term |
Crush Resistance Long/Short Term N /100mm |
Bending Radius Static/Dynamic mm |
| 1 | 2.0x5.0 | 20 | 100/200 | 1000/2200 | 10D/20D |
| 2 | 2.0x5.0 | 20 | 100/200 | 1000/2200 | 10D/20D |
| 4 | 2.0x5.0 | 20 | 100/200 | 1000/2200 | 10D/20D |
| 6 | 2.0x5.5 | 21 | 100/200 | 1000/2200 | 10D/20D |
| 8 | 2.0x6.0 | 23 | 100/200 | 1000/2200 | 10D/20D |
| 12 | 2.0x7.0 | 25 | 100/200 | 1000/2200 | 10D/20D |
Mechanical and Environmental Characteristics

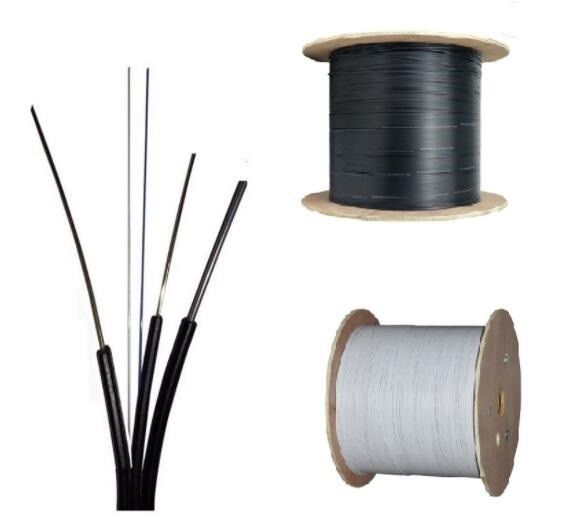

Packaging & Shipping
1) Packing Lengths: 1000m/roll, 2000m/roll. Other lengths available according to client's Request;
2) Inner packing: Wooden reel, plastic reel.
3) Outer packing: Carton box, pull box, pallet.
4) Other packing available according to client's Reques.
1. Are you the real manufacturer?
Us. We are the real manufacturer with 15 year’s history.
2. What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km.
3. What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
4. How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place sideways not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
