GJYXFCH 1 - 24 Core Outdoor Self Supporting FTTH Aerial Drop Cable

GJYXFCH Manufacture Price Supply 1-24 Core Outdoor Fiber To The Home Self-Supporting FTTH Aerial Optical Drop Cable

Model: GJXH / GJXFH / GJYXCH / Ftth Cable

1. GJXH- The optical fiber unit is positioned in the central. Two parallel steel wire are placed at the two sides. Then, the cable is completed with a black or color LSZH or PVC sheath.

2. GJXFH- The optical fiber unit is positioned in the central. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. Then, the cable is completed with a black or color LSZH or PVC sheath.

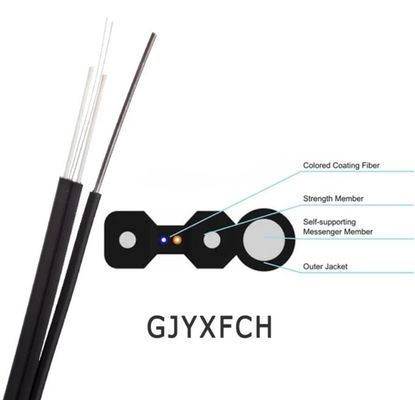

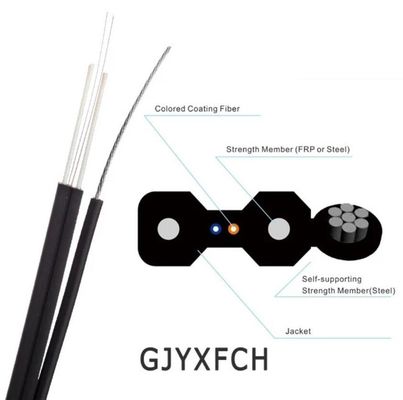

3. GJYXCH-The optical fiber unit is positioned in the centre. Two parallel steel wires are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black LSZH sheath.

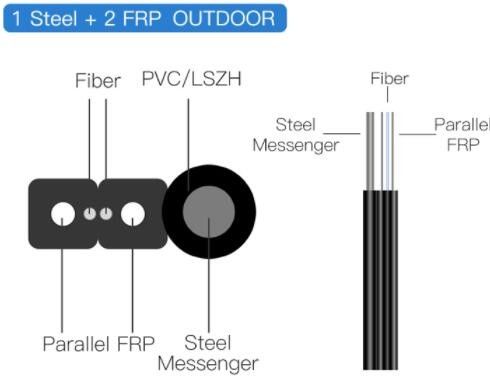

4. Ftth Cable- The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced member FRP are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.

Application:

1. Access network

2. FTTH cable (Fiber to the home)

3. Used in indoor cabling

4. Used for parch cord or pigtail

Features:

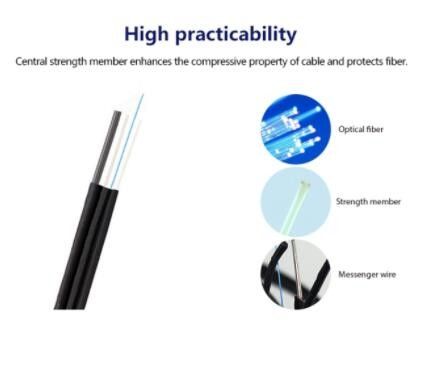

1. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.

2. Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.

3. Simple structure, light weight and high practicability.

4. LSZH Jacket: Low smoke, zero alogen and flame retardant sheath.

Fiber Characteristic:

Item	Technology parameter
Cable type	Drop Cable
Cable Count	1 2 4 6 8 12
Fiber color	Green, Yellow
Fiber type	9/125 (G657A2)
Sheath color	Black and white
Sheath material	LSZH
Cable dimension (mm)	3.0(±0.1)*2.0(±0.1); 5.2(±0.1)*2.0(±0.1)
Cable weight (Kg/km)	15
Min. bending radius (mm)	10 (Static) 25 (Static) 30 (Static) 60 (Static)
Attenuation (dB/km)	0.4 at 1310nm, 0.3 at 1550nm
Short term tensile ( N)	200; 600
Crush resistance (N/100mm)	1000; 2200
Operation temperature (℃)	-20~+70℃

Technical data:

strength member	material	Galvanized steel wire/FRP/KFRP
	diameter	2*(0.5~0.8)mm
Self support Messenger wire	material	Galvanized steel wire
	diameter	1.0mm
Outer sheath	material	LSZH
	diameter	1.8±0.2mm
Cable size (Height * width)	2.0(±0.1) mm × 5.2(±0.2)mm
Cable sheath thickness	Max. 0.8mm/Min. 0.4mm
Messenger sheath thickness	0.5~0.7mm
Cable weight	1~2core	18.2KG
	4-6 core	18.5KG
	8~24core	54KG

Mechanical and Environmental Characteristics

Items	Unite	Specifications
Tension(Long Term)	N	500
Tension(Short Term)	N	1000
Crush(Long Term)	N/10cm	1000
Crush(Short Term)	N/10cm	2200
Min. Bend Radius(Dynamic)	mm	20D
Min. Bend Radius(Static)	mm	10D
Installation Temperature	℃	-20~+60
Operating Temperature	℃	-40~+70
Storage Temperature	℃	-40~+70



More products

Packaging & Shipping

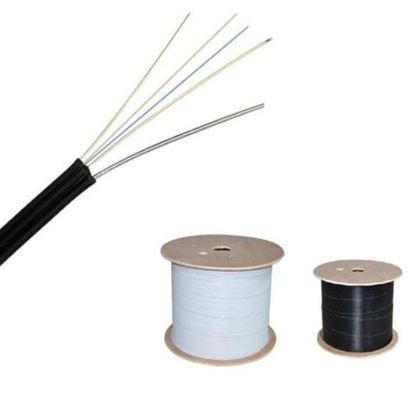

1) Packing Lengths: 1000m/roll, 2000m/roll. Other lengths available according to client's Request;

2) Inner packing: Wooden reel, plastic reel.

3) Outer packing: Carton box, pull box, pallet.

4) Other packing available according to client's Reques.





FAQ

1. Are you the real manufacturer?
Us. We are the real manufacturer with 15 year’s history.



2. What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km.



3. What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.



4. How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place sideways not on the end.



5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
