Product Details:
|
Jacket: | LSZH/PVC/HDPE | Outer Sheath Color: | Orange |
---|---|---|---|
Fiber Type: | OM3 | Application: | Telecommunication |
Strength Member: | Aramid Yarn/Metal Wire | Core: | 4/6/8/12 |
Product Name: | High Quality Indoor Outdoor 1/2/4/6/12/24 Core Flat Fiber Optic Cable , Single Mode FTTH Aerial Drop Cable | ||
High Light: | Single Mode FTTH Aerial Drop Cable,24 Cor FTTH Aerial Drop Cable,12 Core Indoor FTTH Drop Cable |

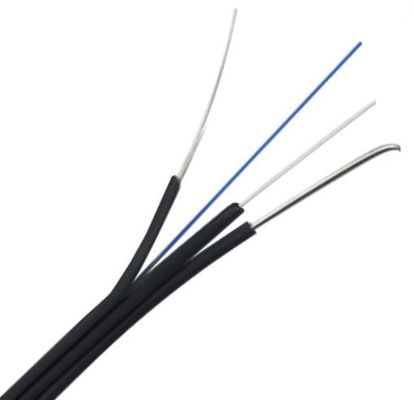

High quality Indoor Outdoor 1/2/4/6/12/24 Core flat fiber optic cable , Single Mode FTTH Aerial drop cable
* special curved optical fiber, providing greater bandwidth and enhanced network transmission characteristics;
* two parallel fiber optic cable, FRP has a good compression performance, can protect the fiber;
* cable structure is simple, light weight, strong practical;
* unique groove design, easy peeling, convenience for connect, and simplify installation and maintenance;
* LSNHP fire-retardant jackets, environmental protection and safety.

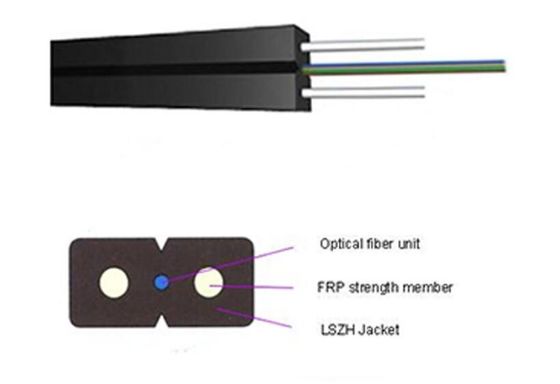

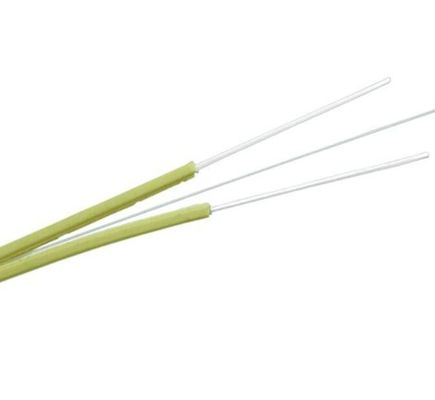

Descriptions: The struture of indoor optical FTTH cable :In the centre is the optical communication unit,with the parallel non-metical enhanced FRP of the two side.The sheath materiar is LSZH or PVC
Fiber Characteristic:
Cable code |
Fiber Count |
Cable diameter mm |
Cable weight Kg/km |
Tensilse Strength Long/Short term N |
Crush Resistance Long/Short term N |
Bedning Radius Dynamic/Static mm |
GJXFH-1 | 1 | (2.0±0.2)×(3.0±0.2) | 8 | 30/60 | 300/1000 | 15/30 |
GJXFH-2 | 2 | (2.0±0.2)×(3.0±0.2) | 8.5 | 30/60 | 300/1000 | 15/30 |
GJXFH-4 | 4 | (2.0±0.2)×(3.0±0.2) | 10 | 30/60 | 300/1000 | 15/30 |
GJXH-1 | 1 | (2.0±0.2)×(3.0±0.2) | 9 | 30/60 | 300/1000 | 15/30 |
GJXH-2 | 2 | (2.0±0.2)×(3.0±0.2) | 9.5 | 30/60 | 300/1000 | 15/30 |
GJXH-4 | 4 | (2.0±0.2)×(3.0±0.2) | 10 | 30/60 | 300/1000 | 15/30 |
Item
|
Technology parameter
|
Cable type
|
Drop Cable
|
Cable Count
|
1 2 4 6 8 12
|
Fiber color
|
Green, Yellow
|
Fiber type
|
9/125 (G657A2)
|
Sheath color
|
Black and white
|
Sheath material
|
LSZH
|
Cable dimension (mm)
|
3.0(±0.1)*2.0(±0.1); 5.2(±0.1)*2.0(±0.1)
|
Cable weight (Kg/km)
|
15
|
Min. bending radius (mm)
|
10 (Static) 25 (Static) 30 (Static) 60 (Static)
|
Attenuation (dB/km)
|
0.4 at 1310nm, 0.3 at 1550nm
|
Short term tensile ( N)
|
200; 600
|
Crush resistance (N/100mm)
|
1000; 2200
|
Operation temperature (℃)
|
-20~+70℃
|

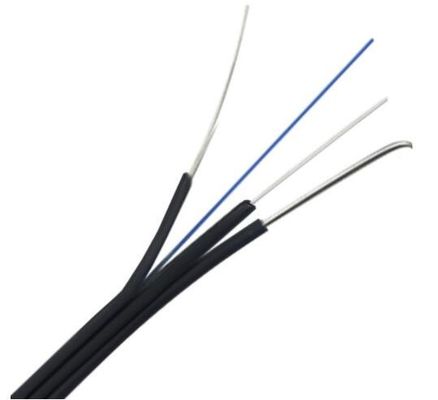

strength member
|
material
|
Galvanized steel wire/FRP/KFRP
|
diameter
|
2*(0.5~0.8)mm
|
|
Self support Messenger wire
|
material
|
Galvanized steel wire
|
diameter
|
1.0mm
|
|
Outer sheath
|
material
|
LSZH
|
diameter
|
1.8±0.2mm
|
|
Cable size (Height * width)
|
2.0(±0.1) mm × 5.2(±0.2)mm
|
|
Cable sheath thickness
|
Max. 0.8mm/Min. 0.4mm
|
|
Messenger sheath thickness
|
0.5~0.7mm
|
|
Cable weight
|
1~2core
|
18.2KG
|
4-6 core
|
18.5KG
|
|
8~24core
|
54KG
|
Mechanical and Environmental Characteristics
Items | Unite | Specifications |
Tension(Long Term) | N | 500 |
Tension(Short Term) | N | 1000 |
Crush(Long Term) | N/10cm | 1000 |
Crush(Short Term) | N/10cm | 2200 |
Min. Bend Radius(Dynamic) | mm | 20D |
Min. Bend Radius(Static) | mm | 10D |
Installation Temperature | ℃ | -20~+60 |
Operating Temperature | ℃ | -40~+70 |
Storage Temperature | ℃ | -40~+70 |
Packaging & Shipping
1) Packing Lengths: 1000m/roll, 2000m/roll. Other lengths available according to client's Request;
2) Inner packing: Wooden reel, plastic reel.
3) Outer packing: Carton box, pull box, pallet.
4) Other packing available according to client's Reques.
