Product Details:
|
| Jacket: | LSZH/PVC/HDPE | Outer Sheath Color: | Orange |
|---|---|---|---|
| Fiber Type: | OM3 | Application: | Telecommunication |
| Strength Member: | Aramid Yarn/Metal Wire | Core: | 4/6/8/12/24/48/96 |
| Product Name: | FTTH Fiber Cable G675A 1 2 4 6 8 Core FTTH Drop Cable Indoor Fiber Optic Cable | ||
| High Light: | G675A Indoor Fiber Optic Cable,6 Core Indoor Fiber Optic Cable,8 Core FTTH Fiber Cable |
||

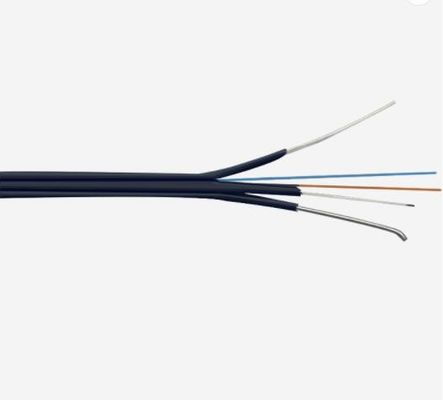

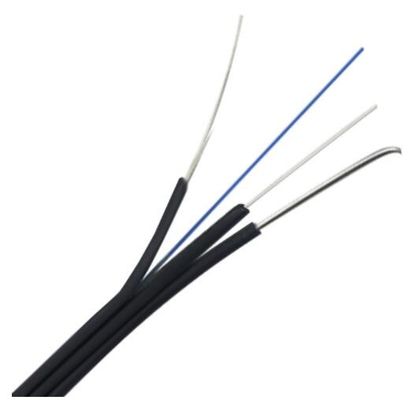

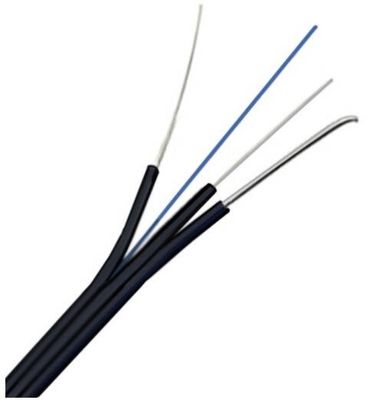

FTTH fiber cable G675A 1 2 4 6 8 Core FTTH Drop Cable Indoor Fiber Optic Cable
Characteristic:
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
Two parallel FRP strength member ensure good performance of crush resistance to protect the fiber;
Simple structure,light weight and high practicability;
Novel flute design,easily strip and splice,simplify the installation and maintenance
Low smoke,zero halogen and flame retardant sheath.
| Fiber Type | Attenuation | Overfilled launch Bandwidth | Effective Modal Bandwidth | 10GB/S Ethernet link length | Min Bending Radius | |
| Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | |
| Unit | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | 16 | ||||
| G657A1 | 0.36/0.22 | 10 | ||||
| G657A2 | 0.36/0.22 | 7.5 | ||||
| 50/125 | 3.0/1.0 | ≥500/500 | 30 | |||
| 62.2/125 | 3.0/1.0 | ≥200/500 | 30 | |||
| OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 30 | |
| OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 30 | |
| B1-OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 7.5 | |
| B1-OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 7.5 |
|
|
strength member
|
material
|
Galvanized steel wire/FRP/KFRP
|
|
diameter
|
2*(0.5~0.8)mm
|
|
|
Self support Messenger wire
|
material
|
Galvanized steel wire
|
|
diameter
|
1.0mm
|
|
|
Outer sheath
|
material
|
LSZH
|
|
diameter
|
1.8±0.2mm
|
|
|
Cable size (Height * width)
|
2.0(±0.1) mm × 5.2(±0.2)mm
|
|
|
Cable sheath thickness
|
Max. 0.8mm/Min. 0.4mm
|
|
|
Messenger sheath thickness
|
0.5~0.7mm
|
|
|
Cable weight
|
1~2core
|
18.2KG
|
|
4-6 core
|
18.5KG
|
|
|
8~24core
|
54KG
|
|
Structure and Technical Specification
| Fiber Count |
Cable Diameter (mm) |
Cable Weight (kg/km) |
(N/100mm) |
Crush Resistance (N/100mm) |
|||
| Short Term | Long Term | Short Term | Long Term | ||||
| 1-4 | 3.0*2.0 | 9.0 | 80/200 | 40/100 | 1000/2200 | 500/1000 |
|
1. Are you the real manufacturer?
Us. We are the real manufacturer with 15 year’s history.
2. What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km.
3. What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
4. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawings.
