Product Details:
|
| Jacket: | LSZH/PVC/HDPE | Outer Sheath Color: | Orange |
|---|---|---|---|
| Fiber Type: | OM3 | Application: | Telecommunication |
| Strength Member: | Aramid Yarn/Metal Wire | Core: | 4/6/8/12 |
| Product Name: | FTTH Indoor Fiber Optical Drop Cable G.652D G.657A LSZH PVC Jacket 2 Core Communication Cable | ||
| Highlight: | FTTH Optical Fiber Drop Cable,G.652D Optical Fiber Drop Cable,G.657A FTTH Drop Cable |
||

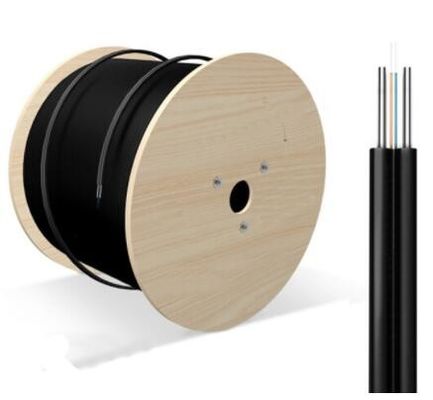

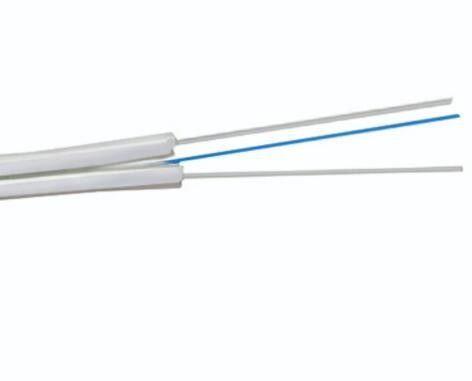

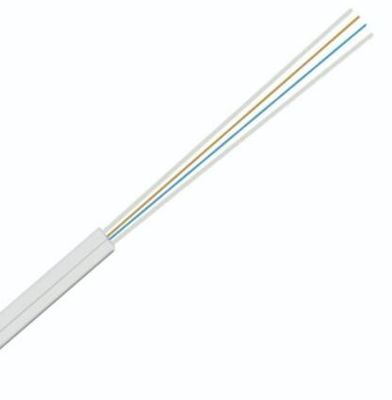

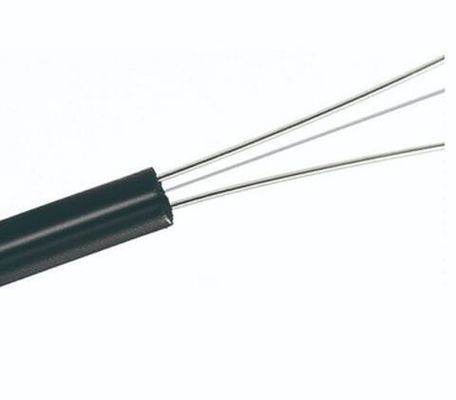

FTTH Indoor Fiber Optical Drop Cable G.652D G.657A LSZH PVC Jacket 2 Core Communication Cable
Characteristic:
· Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
· Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;
· Simple structure, light weight and high practicability;
· Novel flute design, easily strip and splice, simplify the installation and maintenance
· Low smoke, zero halogen and flame retardant sheath.
Fiber Characteristic:
| Cable code |
Fiber Count |
Cable diameter mm |
Cable weight Kg/km |
Tensilse Strength Long/Short term N |
Crush Resistance Long/Short term N |
Bedning Radius Dynamic/Static mm |
| GJXFH-1 | 1 | (2.0±0.2)×(3.0±0.2) | 8 | 30/60 | 300/1000 | 15/30 |
| GJXFH-2 | 2 | (2.0±0.2)×(3.0±0.2) | 8.5 | 30/60 | 300/1000 | 15/30 |
| GJXFH-4 | 4 | (2.0±0.2)×(3.0±0.2) | 10 | 30/60 | 300/1000 | 15/30 |
| GJXH-1 | 1 | (2.0±0.2)×(3.0±0.2) | 9 | 30/60 | 300/1000 | 15/30 |
| GJXH-2 | 2 | (2.0±0.2)×(3.0±0.2) | 9.5 | 30/60 | 300/1000 | 15/30 |
| GJXH-4 | 4 | (2.0±0.2)×(3.0±0.2) | 10 | 30/60 | 300/1000 | 15/30 |
|
strength member
|
material
|
Galvanized steel wire/FRP/KFRP
|
|
diameter
|
2*(0.5~0.8)mm
|
|
|
Self support Messenger wire
|
material
|
Galvanized steel wire
|
|
diameter
|
1.0mm
|
|
|
Outer sheath
|
material
|
LSZH
|
|
diameter
|
1.8±0.2mm
|
|
|
Cable size (Height * width)
|
2.0(±0.1) mm × 5.2(±0.2)mm
|
|
|
Cable sheath thickness
|
Max. 0.8mm/Min. 0.4mm
|
|
|
Messenger sheath thickness
|
0.5~0.7mm
|
|
|
Cable weight
|
1~2core
|
18.2KG
|
|
4-6 core
|
18.5KG
|
|
|
8~24core
|
54KG
|
|
1. Are you the real manufacturer?
Us. We are the real manufacturer with 15 year’s history.
2. What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km.
3. What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
3. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawings.
