Product Details:
|
| Jacket: | LSZH/PVC/HDPE | Outer Sheath Color: | Orange |
|---|---|---|---|
| Fiber Type: | OM3 | Application: | Telecommunication |
| Strength Member: | Aramid Yarn/Metal Wire | Core: | 4/6/8/12 |
| Product Name: | FTTH Fiber Cable G657A LSZH Fiber Optical Drop Cable Messenger Cable | ||
| High Light: | FTTH Messenger Fiber Optic Cable,G657A Messenger Fiber Optic Cable,LSZH Jacket FTTH Fiber Cable |
||
FTTH fiber cable G657A LSZH fiber optical drop cable messenger cable
1. 1 -288 Core
2. LSZH jacket drop cable
3. G657 FTTH fiber optical cable
4. Self-support drop cable

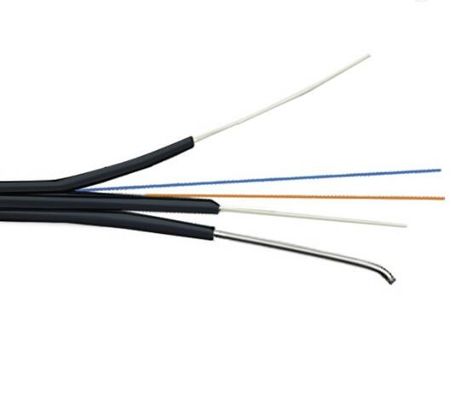

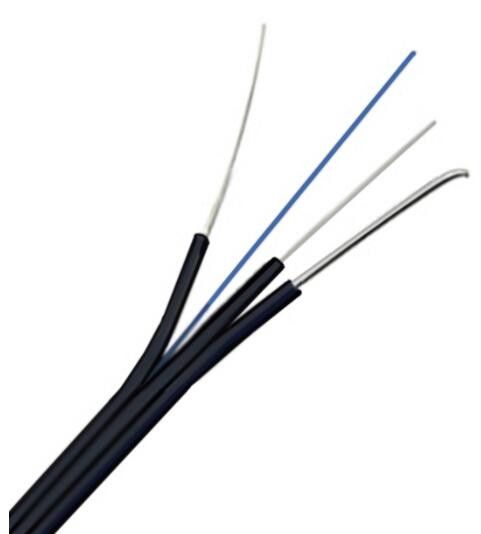

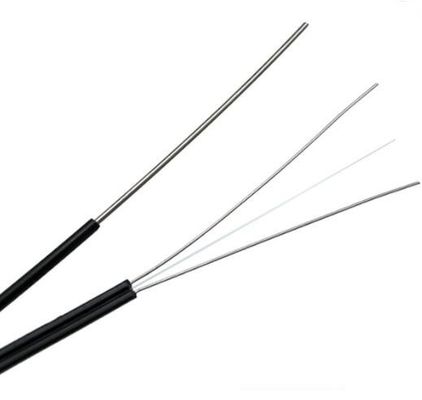

Self-supporting butterfly drop cable (GJYXFCH/GJYXFDCH) is made from the disc into the optical fiber cable outer in add a stout rope suspension wire.
1. Thick wire
2. Not metal or metal strengthening element
3. Fiber core or optical fiber belt (G657, A2) (1-4 core)
4. Low smoke zero halogen resistance (LSZH) sheath
Fiber Characteristic:
| Cable code |
Fiber Count |
Cable diameter mm |
Cable weight Kg/km |
Tensilse Strength Long/Short term N |
Crush Resistance Long/Short term N |
Bedning Radius Dynamic/Static mm |
| GJXFH-1 | 1 | (2.0±0.2)×(3.0±0.2) | 8 | 30/60 | 300/1000 | 15/30 |
| GJXFH-2 | 2 | (2.0±0.2)×(3.0±0.2) | 8.5 | 30/60 | 300/1000 | 15/30 |
| GJXFH-4 | 4 | (2.0±0.2)×(3.0±0.2) | 10 | 30/60 | 300/1000 | 15/30 |
| GJXH-1 | 1 | (2.0±0.2)×(3.0±0.2) | 9 | 30/60 | 300/1000 | 15/30 |
| GJXH-2 | 2 | (2.0±0.2)×(3.0±0.2) | 9.5 | 30/60 | 300/1000 | 15/30 |
| GJXH-4 | 4 | (2.0±0.2)×(3.0±0.2) | 10 | 30/60 | 300/1000 | 15/30 |
|
strength member
|
material
|
Galvanized steel wire/FRP/KFRP
|
|
diameter
|
2*(0.5~0.8)mm
|
|
|
Self support Messenger wire
|
material
|
Galvanized steel wire
|
|
diameter
|
1.0mm
|
|
|
Outer sheath
|
material
|
LSZH
|
|
diameter
|
1.8±0.2mm
|
|
|
Cable size (Height * width)
|
2.0(±0.1) mm × 5.2(±0.2)mm
|
|
|
Cable sheath thickness
|
Max. 0.8mm/Min. 0.4mm
|
|
|
Messenger sheath thickness
|
0.5~0.7mm
|
|
|
Cable weight
|
1~2core
|
18.2KG
|
|
4-6 core
|
18.5KG
|
|
|
8~24core
|
54KG
|
|
1. Are you the real manufacturer?
Us. We are the real manufacturer with 15 year’s history.
2. What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km.
3. What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
4. How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place sideways not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
