Product Details:
|
| Jacket: | LSZH/PVC/HDPE | Outer Sheath Color: | Orange |
|---|---|---|---|
| Fiber Type: | OM3 | Application: | Telecommunication |
| Strength Member: | Aramid Yarn/Metal Wire | Core: | 4/6/8/12 |
| Product Name: | Ftth Fiber Cable G-Fiber GJXFH Outdoor 1 2 4 6 8 Core Figure 8 Fiber Optic Cable Price Per Meter FTTH Drop Cable | ||
| High Light: | Figure 8 FTTH Fiber Optic Cable,GJXFH FTTH Fiber Optic Cable,8 Core FTTH Fiber Cable |
||

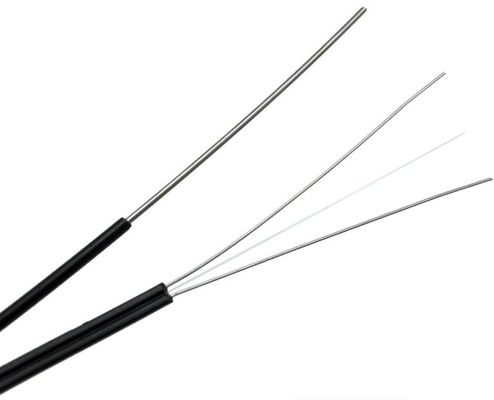

Ftth fiber cable G-Fiber GJXFH Outdoor 1 2 4 6 8 Core Figure 8 Fiber Optic Cable price per meter FTTH Drop Cable
Characteristics
--- Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
--- Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
--- Simple structure, light weight and high practicability
--- Novel flute design, easily strip and splice, simplify the installation and maintenance
Fiber Characteristic:
| Cable code |
Fiber Count |
Cable diameter mm |
Cable weight Kg/km |
Tensilse Strength Long/Short term N |
Crush Resistance Long/Short term N |
Bedning Radius Dynamic/Static mm |
| GJXFH-1 | 1 | (2.0±0.2)×(3.0±0.2) | 8 | 30/60 | 300/1000 | 15/30 |
| GJXFH-2 | 2 | (2.0±0.2)×(3.0±0.2) | 8.5 | 30/60 | 300/1000 | 15/30 |
| GJXFH-4 | 4 | (2.0±0.2)×(3.0±0.2) | 10 | 30/60 | 300/1000 | 15/30 |
| GJXH-1 | 1 | (2.0±0.2)×(3.0±0.2) | 9 | 30/60 | 300/1000 | 15/30 |
| GJXH-2 | 2 | (2.0±0.2)×(3.0±0.2) | 9.5 | 30/60 | 300/1000 | 15/30 |
| GJXH-4 | 4 | (2.0±0.2)×(3.0±0.2) | 10 | 30/60 | 300/1000 | 15/30 |
|

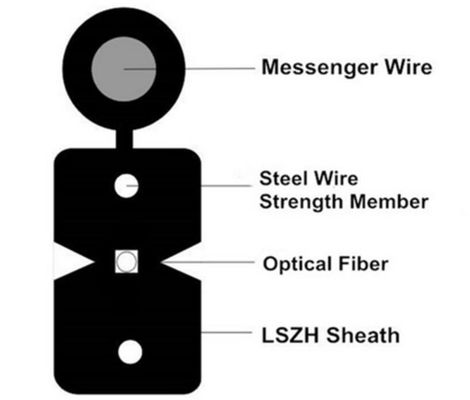

strength member
|
material
|
Galvanized steel wire/FRP/KFRP
|
|
diameter
|
2*(0.5~0.8)mm
|
|
|
Self support Messenger wire
|
material
|
Galvanized steel wire
|
|
diameter
|
1.0mm
|
|
|
Outer sheath
|
material
|
LSZH
|
|
diameter
|
1.8±0.2mm
|
|
|
Cable size (Height * width)
|
2.0(±0.1) mm × 5.2(±0.2)mm
|
|
|
Cable sheath thickness
|
Max. 0.8mm/Min. 0.4mm
|
|
|
Messenger sheath thickness
|
0.5~0.7mm
|
|
|
Cable weight
|
1~2core
|
18.2KG
|
|
4-6 core
|
18.5KG
|
|
|
8~24core
|
54KG
|
|
Optical Characteristics
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
||
|
Attenuation (+20°C) |
@850nm |
|
|
≤3.5 dB/km |
≤3.5 dB/km |
|
@1300nm |
|
|
≤1.5 dB/km |
≤1.5 dB/km |
|
|
@1310nm |
≤0.45 dB/km |
≤0.50 dB/km |
|
|
|
|
@1550nm |
≤0.30 dB/km |
≤0.50dB/km |
|
|
|
|
Bandwidth (Class A) |
@850nm |
|
|
≥500 MHz·km |
≥200 MHz·km |
|
@1300nm |
|
|
≥1000 MHz·km |
≥600 MHz·km |
|
|
Numerical Aperture |
|
|
0.200±0.015NA |
0.275±0.015NA |
|
|
Cable Cut-off Wavelength λcc |
≤1260nm |
≤1480nm |
|
|
|
1.Are you the real manufacturer?
Us. We are the real manufacturer with 15 year’s history.
2.What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km.
3.What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
4.How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place sideways not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
