2 4 6 8 10 12 Core Indoor Outdoor Micro FTTH Drop Cable

Fiber optical factory out door 2 4 6 8 10 12 core indoor outdoor white micro ftth drop cable

Product Description:

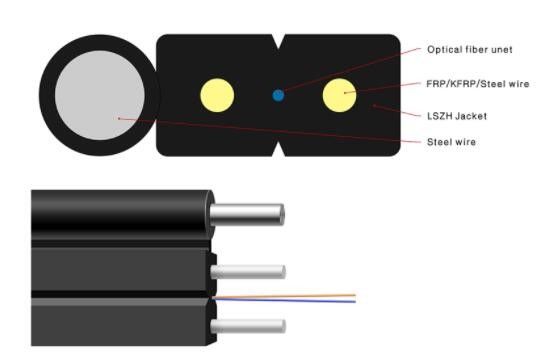

• The optical fiber unit is positioned in the center.
• Two parallel Fiber Reinforced Plastics (FRP) are placed at the twp sides.
• Then the cable is completed with a black or white color LSZH sheath.

Features:

  1. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
  2. Two parallel strength members ensure good performance of crush resistance to protect the fiber
  3. Simple structure, light weight and high practicability
  4. Low smoke,zero halogen and flame retardant sheath
  5. Novel flute design, easily strip and splice, simplify the installation and maintenance

Application

• Used in indoor cabling, especially used for FTTH
• Used as access building cable

Fiber Characteristic:



Technical data:

strength member	material	Galvanized steel wire/FRP/KFRP
	diameter	2*(0.5~0.8)mm
Self support Messenger wire	material	Galvanized steel wire
	diameter	1.0mm
Outer sheath	material	LSZH
	diameter	1.8±0.2mm
Cable size (Height * width)	2.0(±0.1) mm × 5.2(±0.2)mm
Cable sheath thickness	Max. 0.8mm/Min. 0.4mm
Messenger sheath thickness	0.5~0.7mm
Cable weight	1~2core	18.2KG
	4-6 core	18.5KG
	8~24core	54KG

Optical Characteristics



G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20°C)	@850nm			≤3.5 dB/km	≤3.5 dB/km
	@1300nm			≤1.5 dB/km	≤1.5 dB/km
	@1310nm	≤0.45 dB/km	≤0.50 dB/km
	@1550nm	≤0.30 dB/km	≤0.50dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm

Technical Parameters

Fiber Count	Cable Diameter mm	Cable Weight  kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static /Dynamic(mm)
1	(2.0±0.2)×(3.0±0.2)	8	30/60	300/1000	15/30
2	(2.0±0.2)×(3.4±0.2)	8.5	30/60	300/1000	15/30
1	(2.0±0.2)×(3.8±0.2)	9	30/60	300/1000	15/30
4	(2.0±0.2)×(4.0±0.2)	10	30/60	300/1000	15/30



More products

FAQ

1. Are you the real manufacturer?
Us. We are the real manufacturer with 15 year’s history.



2. What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km.



3. What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.



4. How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place sideways not on the end.



5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
