Product Details:
|
| Jacket: | LSZH/PVC/HDPE | Outer Sheath Color: | Black,white,or Customized |
|---|---|---|---|
| Fiber Type: | SM,MM,OM3,OM4 | Application: | Telecommunication,Duct,Telecom |
| Strength Member: | Aramid Yarn/Metal Wire | Core: | 4/6/8/12/24/48/96 |
| Product Name: | FTTH Indoor Drop Cable KFRP GJXFH 8 Core Fiber Optic Cable Made In China Factory Price Cable Fiber Optic | ||
| High Light: | 8 Core FTTH Indoor Drop Cable,GJXFH FTTH Indoor Drop Cable,KFRP Indoor Fiber Optic Cable |
||

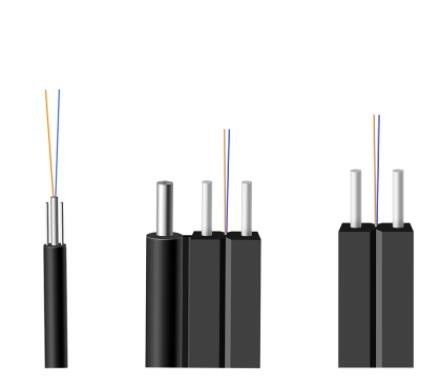

FTTH Indoor Drop Cable KFRP GJXFH 8 Core Fiber Optic Cable made in China factory price cable fiber optic
· Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;

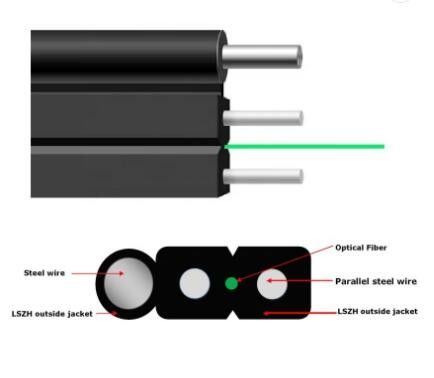

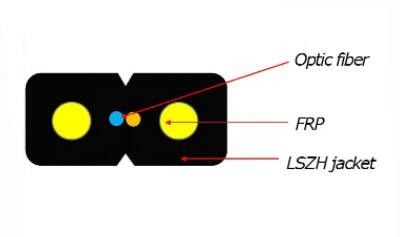

· Two parallel FRP/KFRP or steel wire strength members ensure good performance of crush resistance to protect the fiber;
· Simple structure, light weight and high practicability;
. special tube filling compound ensure a critical protection of fiber.
· Single steel wire or stranded steel wires together with the strength member , ensure good tensile properties of the fiber cable;
· Novel flute design, easily strip and splice, simplify the installation and maintenance;
· Low smoke, zero halogen and flame retardant sheath.
· Unique double-fly design make the installation more simple, time-saving and cut down cost.
|
|
|
G.652
|
G.655
|
G657A1
|
G.657A2
|
|
Attenuation
(+20℃) |
@850nm
|
|
|
|
|
|
@1300nm
|
|
|
|
|
|
|
@1310nm
|
≤0.45/km
|
≤0.40/km
|
≤0.40/km
|
≤0.40/km
|
|
|
@1550nm
|
≤0.30/km
|
≤0.30/km
|
≤0.30/km
|
≤0.30/km
|
|
|
Cable Cut-off Wavelength λcc
|
|
≤1260nm
|
≤1260nm
|
≤1260nm
|
≤1260nm
|
|
Fiber count
|
Cable diameter mm
|
Cable weight
Kg/km
|
Tensile.S
long/Short N
|
Crush Res.
long/Short N/100m
|
Bending radius
Static/dynamic mm
|
|
2*1
|
(2.0±0.2)×(6.0±0.2)
|
20
|
150/300
|
300/1000
|
15D/30D
|
|
2*2
|
(2.0±0.2)×(6.0±0.2)
|
20
|
150/300
|
300/1000
|
15D/30D
|
|
2*4
|
(2.0±0.2)×(6.0±0.2)
|
20
|
150/300
|
300/1000
|
15D/30D
|
Application
1. FTTH Indoor and Outdoor
2. Suitable for aerial and indoor laying method.
3. Long distance and local area network communication.
