Product Details:
|
Jacket: | LSZH/PVC/HDPE | Outer Sheath Color: | Black,white,or Customized |
---|---|---|---|
Fiber Type: | SM,MM,OM3,OM4 | Application: | Telecommunication,Duct,Telecom |
Strength Member: | Aramid Yarn/Metal Wire | Core: | 4/6/8/12/24/48/96 |
Product Name: | Made In China FTTH Fiber Drop Cable 2 / 4 / 6 / 8 / 12 / 16 / 24 Core Single Mode Outdoor Fiber Optical Cable | ||
High Light: | Single Mode FTTH Fiber Drop Cable,24 Core FTTH Fiber Drop Cable,FTTH Fiber Optic Drop Wire |

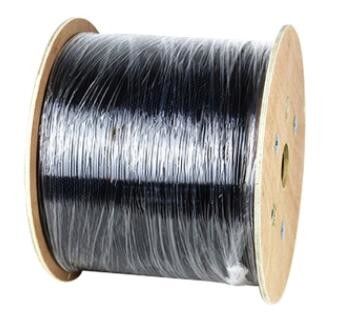

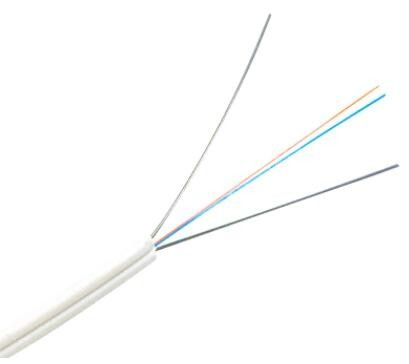

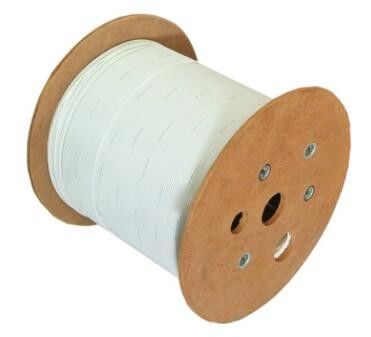

Made in China FTTH fiber drop cable 2 / 4 / 6 / 8 / 12 / 16 / 24 Core Single Mode Outdoor Fiber Optical Cable
Feature
1. Soft and bendable, easy to deploy and maintenance.
2. Smaller diameter, Light weight, and high practicability.

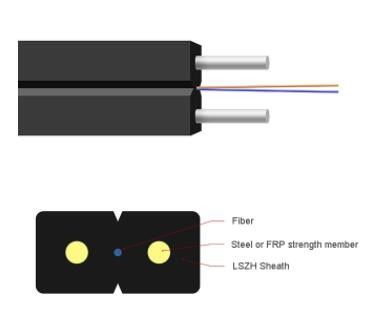

3. Fiber reinforced plastic as the strength member ensures excellent anti-electromagnetic performance.
4. Environmental protection- Low smoke, zero halogen and flame retardant sheath.
Applications
1. Used in access network or as access cable from outdoor to indoor in customer premises network;
2. Used as access building cable in premises distribution system, especially used in indoor or outdoor
Optical Characteristics
G.652 | G.655 | 50/125μm | 62.5/125μm | ||
Attenuation (+20°C) |
@850nm | ≤3.5 dB/km | ≤3.5 dB/km | ||
@1300nm | ≤1.5 dB/km | ≤1.5 dB/km | |||
@1310nm | ≤0.45 dB/km | ≤0.50 dB/km | |||
@1550nm | ≤0.30 dB/km | ≤0.50dB/km | |||
Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
@1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm |
Fiber Parameters
No. | Items | Unit | Specification | |
G.657A1 | ||||
1 | Mode Field Diameter | 1310nm | μm | 9.0±0.4 |
1550nm | μm | 10.1±0.5 | ||
2 | Cladding Diameter | μm | 124.8±0.7 | |
3 | Cladding Non-Circularity | % | ≤0.7 | |
4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |
5 | Coating Diameter | μm | 245±5 | |
6 | Coating Non-Circularity | % | ≤6.0 | |
7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |
8 | Cable Cutoff Wavelength | nm | λcc≤1260 | |
9 | Attenuation (max.) | 1310nm | dB/km | ≤0.35 |
1550nm | dB/km | ≤0.21 | ||
10 | Macro-Bending Loss | 1turn×10mm radius @1550nm |
dB | ≤0.75 |
1turn×10mm radius@1625nm |
dB | ≤1.5 |
Application
1. FTTH Indoor and Outdoor
2. Suitable for aerial and indoor laying method.
3. Long distance and local area network communication.
