Product Details:
|
| Jacket: | LSZH/PVC/HDPE | Outer Sheath Color: | Black,white,or Customized |
|---|---|---|---|
| Fiber Type: | SM,MM,OM3,OM4 | Application: | Telecommunication,Duct,Telecom |
| Strength Member: | Aramid Yarn/Metal Wire | Core: | 4/6/8/12/24/48/96 |
| Product Name: | Made In China FTTH Fiber Drop Cable 2 / 4 / 6 / 8 / 12 / 16 / 24 Core Single Mode Outdoor Fiber Optical Cable | ||
| High Light: | Outdoor FTTH Drop Wire,Single Mode FTTH Drop Wire,16 Core FTTH Fiber Drop Cable |
||

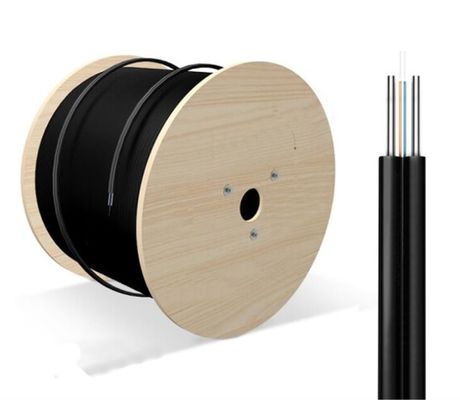

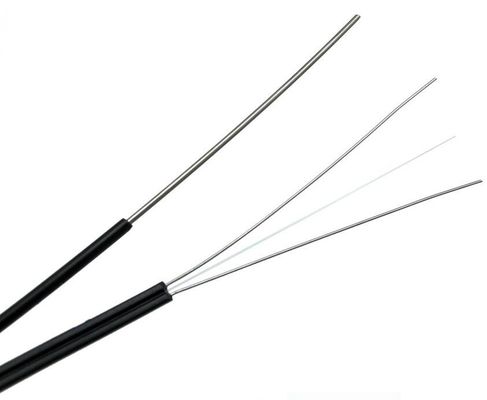

Made in China FTTH fiber drop cable 2 / 4 / 6 / 8 / 12 / 16 / 24 Core Single Mode Outdoor Fiber Optical Cable
1. Special Low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property

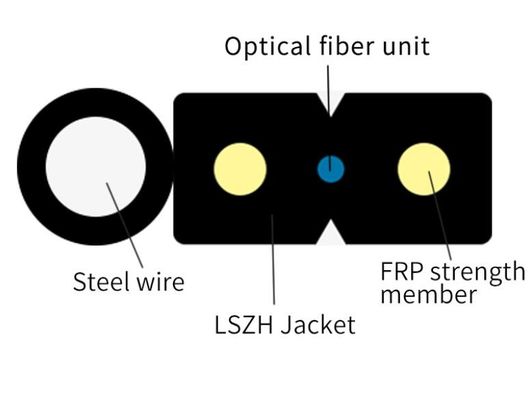

2. Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
3. Single steel wire as the additional strength member ensures good performance of tensile strength
4. Simplex structure,light weight and high practicability
5. Novel flute design, easily strip and splice,simplify the installation and maintenance
6. Low smoke,zero halogen and flame retardant sheath
Application
1. FTTH Indoor and Outdoor
2. Suitable for aerial and indoor laying method.
3. Long distance and local area network communication.
Optical Characteristic:
| Model |
142 | 242 | 342 | 442 | |
| Type | G.652D | G.657A | 50/125 μm | 62.5/125 μm | |
Attenuation(+20 ℃) |
850nm | ≤3.0dB/km | ≤3.5dB/km | ||
| 1300nm | ≤1.5dB/km | ≤1.5dB/km | |||
| 1310nm | ≤0.40dB/km | ≤0.35dB/km | |||
| 1550nm | ≤0.3dB/km | ≤0.25dB/km | |||
| Brandwidth(Class A) | 850nm | ≥500MHz.km | ≥200MHz.km | ||
| 1300nm | ≥1000MHz.km | ≥600MHz.km | |||
| Numerical Aperture | 0.200 ±0.015NA | 0.275 ±0.015NA | |||
| Cable Cut-off Wave length | ≤1260nm | ≤1480nm | |||
|
Fiber Cores |
Cable OD(mm) |
Cable/Weight (kg/km) |
Tensile Strength (long/short term) |
Crush Resistance (long/short term N/100mm |
Bending Radius Static /Dynamic mm |
| 1 | (2.0±0.2)* (5.0±0.2) | 20 | 60/120 | 300/1000 | 15/35 |
| 2 | (2.0±0.2)* (5.0±0.2) | 20 | 60/120 | 300/1000 | 15/35 |
| 4 | (2.0±0.2)* (5.5±0.2) | 21 | 60/120 | 300/1000 | 15/35 |
| 6 | (2.0±0.2)* (6.0±0.2) | 22 | 60/120 | 300/1000 | 15/35 |
Application
1. FTTH Indoor and Outdoor
2. Suitable for aerial and indoor laying method.
3. Long distance and local area network communication.
