Product Details:
|
| Jacket: | LSZH/PVC/HDPE | Outer Sheath Color: | Black,white,or Customized |
|---|---|---|---|
| Fiber Type: | SM,MM,OM3,OM4 | Application: | Telecommunication,Duct,Telecom |
| Strength Member: | Aramid Yarn/Metal Wire | Core: | 4/6/8/12/24/48/96 |
| Product Name: | Single Mode GJXFH GJXH Ftth Patch Cord Fiber Optic Drop Cable Fiber Optic Patch Cord For Ftth | ||
| High Light: | LSZH Sheath FTTH Indoor Drop Cable,G657A2 FTTH Indoor Drop Cable,FTTH OFC Cable |
||

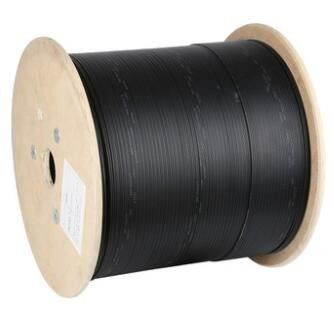

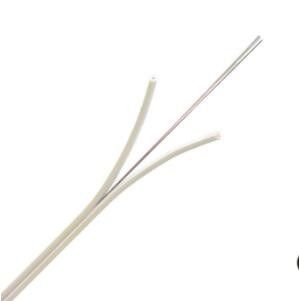

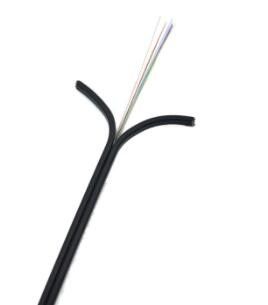

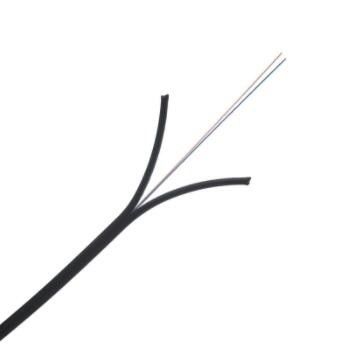

Fiber Optical Cable 1KM price FTTH indoor drop cable
1. Special Low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property

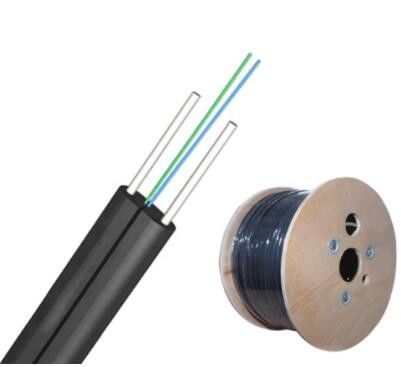

2. Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
3. Single steel wire as the additional strength member ensures good performance of tensile strength
4. Simplex structure,light weight and high practicability
5. Novel flute design, easily strip and splice,simplify the installation and maintenance
6. Low smoke,zero halogen and flame retardant sheath
Application
1. FTTH Indoor and Outdoor
2. Suitable for aerial and indoor laying method.
3. Long distance and local area network communication.
Parameters
| Fiber count | 1F/2F/4F | ||||||||
| Attenuation | 1310nm:≤0.36 1550nm:≤0.22 | ||||||||
| Color Of fiber | Blue Orange Green Brown | ||||||||
| Fiber Type | G652D/G657A1/G657A2 | ||||||||
| Strength member | Steel wire/FRP/KFRP | ||||||||
| Outer sheath | LSZH Lower smoke zero halogen frame retardant & UV Anti | ||||||||
| Cable Diameter dimensions | 2.0( Height) × 3.0W ± 0.1 mm(width) | ||||||||
| Operation temperature range | -20 ℃ to + 70 ℃ | ||||||||
| Installation temperature range | -0 ℃ to + 60 ℃ | ||||||||
| Transport and storage temperature range | -20 ℃ to + 70 ℃ | ||||||||
| Tension Load (N) | Short term :800N Long term :500N | ||||||||
| Crush Load(N) | Long term 1000 N/100mm Short term:2200N/100mm | ||||||||
| Minimal installation bending radius | 30 x OD | ||||||||
| Minimal operation bending radius | 15 x OD | ||||||||
| Cable marking | The marking length 1meter apart , as required |
Fiber Characteristic:
| Cable code |
Fiber Count |
Cable diameter mm |
Cable weight Kg/km |
Tensilse Long/Short N |
Crush/Res. Long/Short N |
Bending/Radius Dynamic/Static mm |
| GJXFH-1 | 1 | (2.0±0.2)×(3.0±0.2) | 8 | 30/60 | 300/1000 | 15/30 |
| GJXFH-2 | 2 | (2.0±0.2)×(3.0±0.2) | 8.5 | 30/60 | 300/1000 | 15/30 |
| GJXFH-4 | 4 | (2.0±0.2)×(3.0±0.2) | 10 | 30/60 | 300/1000 | 15/30 |
| GJXH-1 | 1 | (2.0±0.2)×(3.0±0.2) | 9 | 30/60 | 300/1000 | 15/30 |
| GJXH-2 | 2 | (2.0±0.2)×(3.0±0.2) | 9.5 | 30/60 | 300/1000 | 15/30 |
| GJXH-4 | 4 | (2.0±0.2)×(3.0±0.2) | 10 | 30/60 | 300/1000 | 15/30 |
Application
1. FTTH Indoor and Outdoor
2. Suitable for aerial and indoor laying method.
3. Long distance and local area network communication.
