Product Details:
|
| Jacket: | LSZH/PVC/HDPE | Outer Sheath Color: | Black,white,or Customized |
|---|---|---|---|
| Fiber Type: | SM,MM,OM3,OM4 | Application: | Telecommunication,Duct,Telecom |
| Strength Member: | Aramid Yarn/Metal Wire | Core: | 4/6/8/12/24/48/96 |
| Product Name: | Single Mode GJXFH GJXH Ftth Patch Cord Fiber Optic Drop Cable Fiber Optic Patch Cord For Ftth | ||
| High Light: | SM FTTH Drop Fiber Optic Cable,1 Core FTTH Drop Fiber Optic Cable,FTTH Fiber Drop Wire |
||

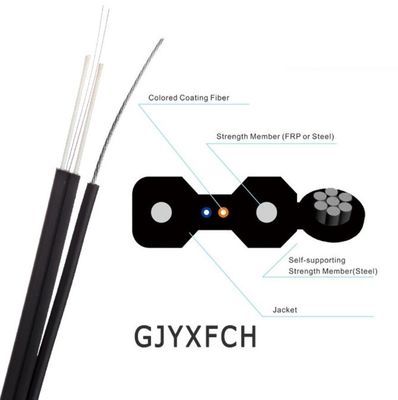

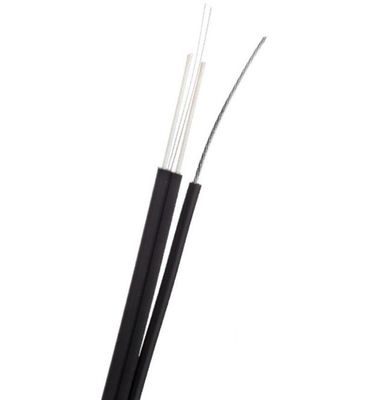

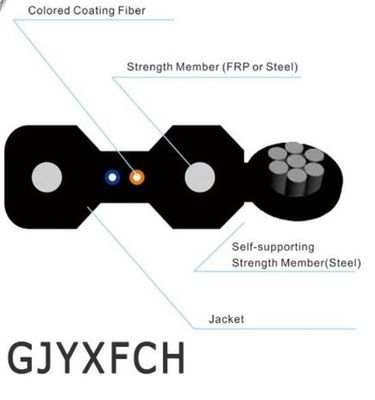

GJYXFCH 1Core 2 Core Single-Mode Self-Supporting Ftth Drop Fiber Optic Cable
1. Special Low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
2. Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
3. Single steel wire as the additional strength member ensures good performance of tensile strength
4. Simplex structure,light weight and high practicability
5. Novel flute design, easily strip and splice,simplify the installation and maintenance
6. Low smoke,zero halogen and flame retardant sheath
Application
1. FTTH Indoor and Outdoor
2. Suitable for aerial and indoor laying method.
3. Long distance and local area network communication.
Fiber Characteristic:
| Cable code |
Fiber Count |
Cable diameter mm |
Cable weight Kg/km |
Tensilse Long/Short N |
Crush/Res. Long/Short N |
Bending/Radius Dynamic/Static mm |
| GJXFH-1 | 1 | (2.0±0.2)×(3.0±0.2) | 8 | 30/60 | 300/1000 | 15/30 |
| GJXFH-2 | 2 | (2.0±0.2)×(3.0±0.2) | 8.5 | 30/60 | 300/1000 | 15/30 |
| GJXFH-4 | 4 | (2.0±0.2)×(3.0±0.2) | 10 | 30/60 | 300/1000 | 15/30 |
| GJXH-1 | 1 | (2.0±0.2)×(3.0±0.2) | 9 | 30/60 | 300/1000 | 15/30 |
| GJXH-2 | 2 | (2.0±0.2)×(3.0±0.2) | 9.5 | 30/60 | 300/1000 | 15/30 |
| GJXH-4 | 4 | (2.0±0.2)×(3.0±0.2) | 10 | 30/60 | 300/1000 | 15/30 |
Parameters
| Cable Type | GJYXCH-1,2,4B6.A2 | ||
| Cable Dimension | 5.2mm x 2.0mm | ||
| Fiber Type | 9/125 (G.657A2) | ||
| Fiber Counts | 1 | 2 | 4 |
| Tight Buffer Color | Nature | Nature, Blue | Nature,Blue,Orange,Green |
| Min. Bending Radius | 120mm | ||
|
Min.Bending Radius (rip off the messenger wire) |
10 (Static) 25 (Dynamic) | ||
| Attenuation dB/km | =<0.336 at 1310nm,= <0.198 at 1550nm | ||
| Short Term Tensile | 600N | ||
| Crush Resistance | 2200N/100mm | ||
| Operation temperature (℃) | -20~+70 | ||
Application
1. FTTH Indoor and Outdoor
2. Suitable for aerial and indoor laying method.
3. Long distance and local area network communication.
