Single Mode GJXFH GJXH FTTH Fiber Optic Patch Cord

Single Mode GJXFH GJXH Ftth Patch Cord Fiber Optic Drop Cable Fiber Optic Patch Cord for Ftth

Product Description:

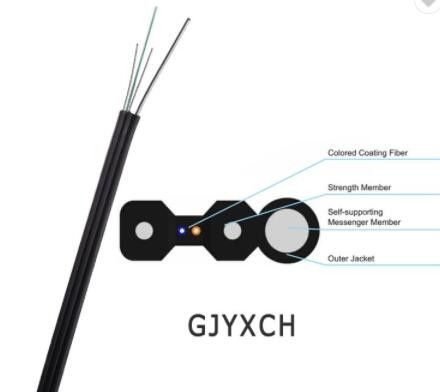

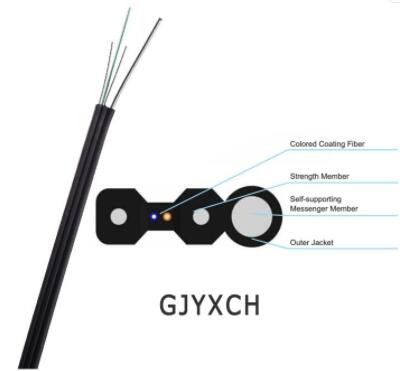

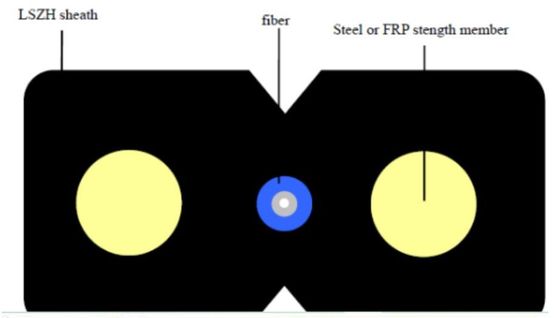

• The optical fiber unit is in the center.
• Two parallel Fiber Reinforced Plastics (FRP) are placed at the both sides.
• Then the cable is completed with a black or white color LSZH sheath.

Features:

• Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
• Two parallel strength members which ensure good performance of crush resistance to protect the fiber.
• Simple structure, light weight and high practicability.
• Low smoke, zero halogen and flame retardant sheath.
• Simple structure, light weight and high practicability.

Technical data:

strength member	material	Galvanized steel wire/FRP/KFRP/Steel wire
	diameter	2*(0.5~0.8)mm
Self support Messenger wire	material	Galvanized steel wire
	diameter	1.0mm
Outer sheath	material	LSZH
	diameter	1.8±0.2mm
Cable size (Height * width)	2.0(±0.1) mm × 5.2(±0.2)mm
Cable sheath thickness	Max. 0.8mm/Min. 0.4mm
Messenger sheath thickness	0.5~0.7mm
Cable weight	1~2core	18.2KG
	4-6 core	18.5KG
	8~24core	54KG

Cable Construction Parameter:

Fiber Core	1	2	1	4
Cable Dimension(mm)	2.0×5.0	2.0×5.0	2.0×5.3	2.0×5.3
Cable Weight(kg/km)	9	10	11	12



More products

FAQ

Q1: Are you manufacturer?
A: Yes, we are manufacturer since the year 2002.

Q2: What's delivery time?
A: Mass production time needs 1-2 week.

Q3: What’s your payment terms?
A: We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram
Q4: What kind of cable do you produce?
A: We’re specialized in manufacturing Coaxial Cable, such as RG Series and Trunk Cable, Optical Fiber Cable, such as ADSS and FTTH, and Lan Cable, such as CAT5E, CAT6 and CAT7.
Q5: What’s your annual capability?
A: We are specialized in manufacturing coaxial cable, optical fiber cable and Lan Cable, whose annual output reaches to 350,000 kilometers, 2 million kilometers’ core and 600,000 boxes separately.
Q6: Do you have OEM and ODM?
A: Yes, we have.
Q9: May I get free sample?
A: Normally, our samples for charger are free. If the sample quantity is large, it will be charged. However, the sample fee will be refunded when customer place bulk orders for that item.
Q10: What's your trade term ?
A: We can accept FOB, CIF, CFR, EXW, etc.
