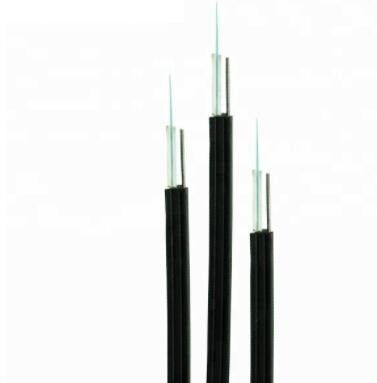

FTTH Singldemode FRP KFRP Steel Strength Member Fiber Optic Cable

FTTH Drop Cable Singldemode FRP/KFRP/Steel Strength Member Fiber Optic Cable

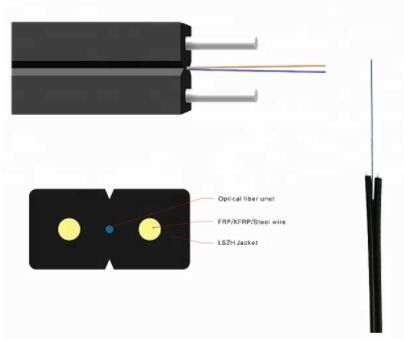

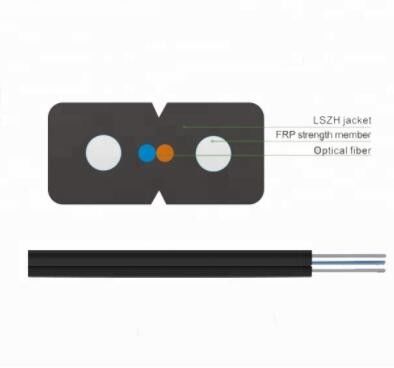

Product Description:

• The optical fiber unit is positioned in the center.
• Two parallel Fiber Reinforced Plastics (FRP) are placed at the twp sides.
• Then the cable is completed with a black or white color or customized color of LSZH sheath.

Features:

• Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
• Two parallel strength members ensure good performance of crush resistance to protect the fiber
• Simple structure, light weight and high practicability
• Novel flute design, easily strip and splice, simplify the installation and maintenance
• Low smoke, zero halogen and flame retardant sheath
• Simple structure, light weight and high practicability

Fiber Characteristic:

Item	Technology parameter
Cable type	Drop Cable
Cable Count	1 2 4 6 8 12
Fiber color	Green, Yellow
Fiber type	9/125 (G657A2)
Sheath color	Black and white
Sheath material	LSZH
Cable dimension (mm)	3.0(±0.1)*2.0(±0.1); 5.2(±0.1)*2.0(±0.1)
Cable weight (Kg/km)	15
Min. bending radius (mm)	10 (Static) 25 (Static) 30 (Static) 60 (Static)
Attenuation (dB/km)	0.4 at 1310nm, 0.3 at 1550nm
Short term tensile ( N)	200; 600
Crush resistance (N/100mm)	1000; 2200
Operation temperature (℃)	-20~+70℃

Technical data:

strength member	material	Galvanized steel wire/FRP/KFRP
	diameter	2*(0.5~0.8)mm
Self support Messenger wire	material	Galvanized steel wire
	diameter	1.0mm
Outer sheath	material	LSZH
	diameter	1.8±0.2mm
Cable size (Height * width)	2.0(±0.1) mm × 5.2(±0.2)mm
Cable sheath thickness	Max. 0.8mm/Min. 0.4mm
Messenger sheath thickness	0.5~0.7mm
Cable weight	1~2core	18.2KG
	4-6 core	18.5KG
	8~24core	54KG

Mechanical and Environmental Characteristics

Items	Unite	Specifications
Tension(Long Term)	N	500
Tension(Short Term)	N	1000
Crush(Long Term)	N/10cm	1000
Crush(Short Term)	N/10cm	2200
Min. Bend Radius(Dynamic)	mm	20D
Min. Bend Radius(Static)	mm	10D
Installation Temperature	℃	-20~+60
Operating Temperature	℃	-40~+70
Storage Temperature	℃	-40~+70



More products

FAQ

Q1: Are you manufacturer?
A: Yes, we are the manufacturer since the year 2002.

Q2: What's delivery time?
A: Mass production time needs 1-2 week.

Q3: What’s your payment terms?
A: We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram

Q4: What kind of cable do you produce?
A: We’re specialized in manufacturing Coaxial Cable, such as RG Series and Trunk Cable, Optical Fiber Cable, such as ADSS and FTTH, and Lan Cable, such as CAT5E, CAT6 and CAT7.

Q5: What’s your annual capability?
A: We are specialized in manufacturing coaxial cable, optical fiber cable and Lan Cable, whose annual output reaches to 350,000 kilometers, 2 million kilometers’ core and 600,000 boxes separately.

Q6: Do you have OEM and ODM?
A: Yes, we have.

Q9: May I get free sample?
A: Normally, our samples for charger are free. If the sample quantity is large, it will be charged. However, the sample fee will be refunded when customer place bulk orders for that item.

Q10: What's your trade term ?
A: We can accept FOB, CIF, CFR, EXW, etc.
