GYTS GYFTY GJYXCH GYXTW ADSS FTTH Fiber Optic Cable

GYTS GYFTY GJYXCH GYXTW ADSS FTTH Indoor Outdoor Fiber Optic Cable

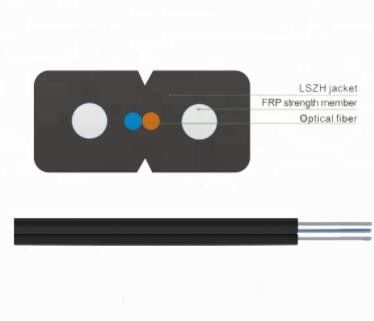

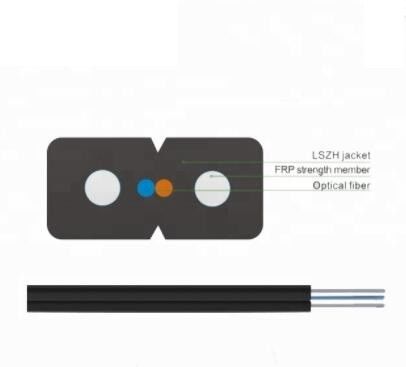

Product Description:

• The optical fiber unit is positioned in the center.
• Two parallel Fiber Reinforced Plastics (FRP) are placed at the twp sides.
• Then the cable is completed with a black or white color LSZH sheath.

Features:

• Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
• Two parallel strength members ensure good performance of crush resistance to protect the fiber
• Simple structure, light weight and high practicability
• Novel flute design, easily strip and splice, simplify the installation and maintenance
• Low smoke, zero halogen and flame retardant sheath
• Simple structure, light weight and high practicability

Application

• Used in indoor cabling, especially used for FTTH
• Used as access building cable

Fiber Characteristic:

Item	Technology parameter
Cable type	Drop Cable
Cable Count	1 2 4 6 8 12
Fiber color	Green, Yellow
Fiber type	9/125 (G657A2)
Sheath color	Black and white
Sheath material	LSZH
Cable dimension (mm)	3.0(±0.1)*2.0(±0.1); 5.2(±0.1)*2.0(±0.1)
Cable weight (Kg/km)	15
Min. bending radius (mm)	10 (Static) 25 (Static) 30 (Static) 60 (Static)
Attenuation (dB/km)	0.4 at 1310nm, 0.3 at 1550nm
Short term tensile ( N)	200; 600
Crush resistance (N/100mm)	1000; 2200
Operation temperature (℃)	-20~+70℃

Technical data:

strength member	material	Galvanized steel wire/FRP/KFRP
	diameter	2*(0.5~0.8)mm
Self support Messenger wire	material	Galvanized steel wire
	diameter	1.0mm
Outer sheath	material	LSZH
	diameter	1.8±0.2mm
Cable size (Height * width)	2.0(±0.1) mm × 5.2(±0.2)mm
Cable sheath thickness	Max. 0.8mm/Min. 0.4mm
Messenger sheath thickness	0.5~0.7mm
Cable weight	1~2core	18.2KG
	4-6 core	18.5KG
	8~24core	54KG

Mechanical and Environmental Characteristics

Items	Unite	Specifications
Tension(Long Term)	N	500
Tension(Short Term)	N	1000
Crush(Long Term)	N/10cm	1000
Crush(Short Term)	N/10cm	2200
Min. Bend Radius(Dynamic)	mm	20D
Min. Bend Radius(Static)	mm	10D
Installation Temperature	℃	-20~+60
Operating Temperature	℃	-40~+70
Storage Temperature	℃	-40~+70
