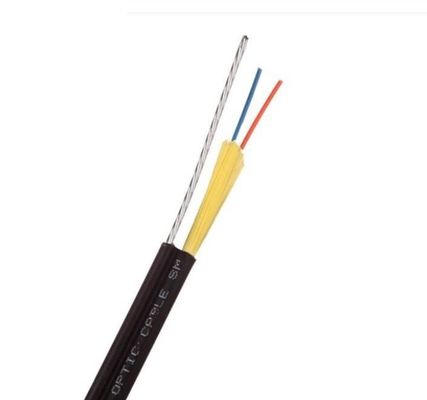

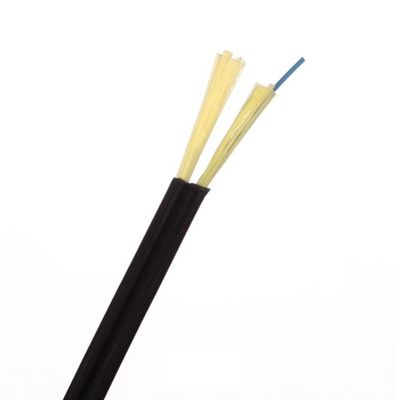

2 Core Self Supporting Tight Buffer Round FTTH Drop Cable

FTTH 2 core Self-Supporting Tight Buffer Round drop cable Used in access network


Product Description:

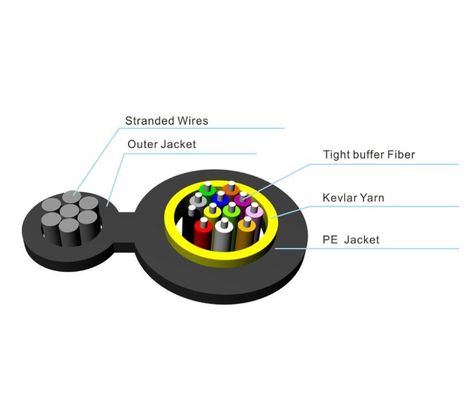

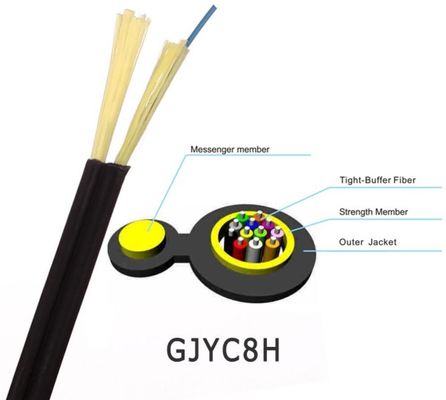

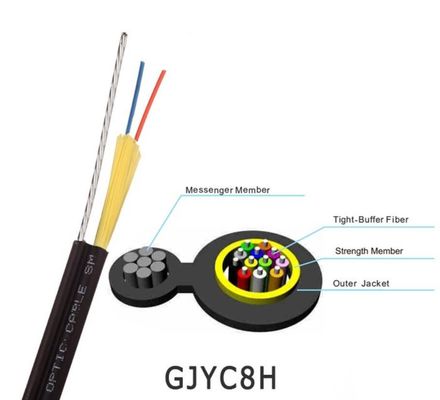

The cable consists of individually color coded 900µm secondary coated fibers reinforced with aramid yarns and covered with UV and flame resistant LSZH jacket.The cable cross section is fig 8 made with a steel wire strength member.

Application:

Used in access network oras access cable from outdoorto indoor in customer premises network.
Used as access building cable in premises distribution system,especially used in indooror outdooraerial access cabling.

Item	Technology parameter
Cable type	Drop Cable
Cable Count	1 2 4 6 8 12
Fiber color	Green, Yellow
Fiber type	9/125 (G657A2)
Sheath color	Black and white
Sheath material	LSZH
Cable dimension (mm)	3.0(±0.1)*2.0(±0.1); 5.2(±0.1)*2.0(±0.1)
Cable weight (Kg/km)	15
Min. bending radius (mm)	10 (Static) 25 (Static) 30 (Static) 60 (Static)
Attenuation (dB/km)	0.4 at 1310nm, 0.3 at 1550nm
Short term tensile ( N)	200; 600
Crush resistance (N/100mm)	1000; 2200
Operation temperature (℃)	-20~+70℃

Technical data:

strength member	material	Galvanized steel wire/FRP/KFRP
	diameter	2*(0.5~0.8)mm
Self support Messenger wire	material	Galvanized steel wire
	diameter	1.0mm
Outer sheath	material	LSZH
	diameter	1.8±0.2mm
Cable size (Height * width)	2.0(±0.1) mm × 5.2(±0.2)mm
Cable sheath thickness	Max. 0.8mm/Min. 0.4mm
Messenger sheath thickness	0.5~0.7mm
Cable weight	1~2core	18.2KG
	4-6 core	18.5KG
	8~24core	54KG

Mechanical and Environmental Characteristics

Items	Unite	Specifications
Tension(Long Term)	N	500
Tension(Short Term)	N	1000
Crush(Long Term)	N/10cm	1000
Crush(Short Term)	N/10cm	2200
Min. Bend Radius(Dynamic)	mm	20D
Min. Bend Radius(Static)	mm	10D
Installation Temperature	℃	-20~+60
Operating Temperature	℃	-40~+70
Storage Temperature	℃	-40~+70
