Product Details:
|
| Jacket: | LSZH/PVC/HDPE | Outer Sheath Color: | Orange |
|---|---|---|---|
| Fiber Type: | OM3 | Application: | Telecommunication |
| Strength Member: | Aramid Yarn/Metal Wire | Core: | 4/6/8/12 |
| Product Name: | FTTH Fiber Drop Cable 2 4 6 8 12 16 24 Core Single Mode Indoor Fiber Optical Cable | ||
| High Light: | FTTH Fiber Optic Drop Cable,LSZH Jacket Fiber Optic Drop Cable,24 Core FTTH Drop Cable |
||

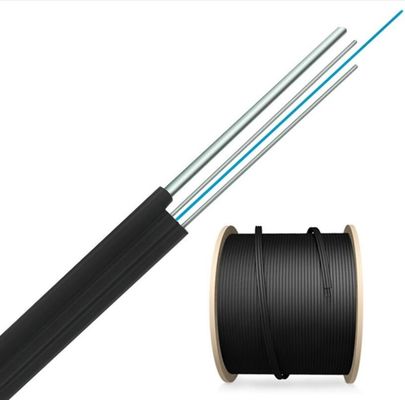

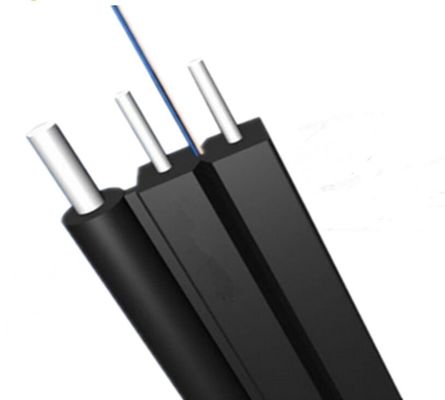

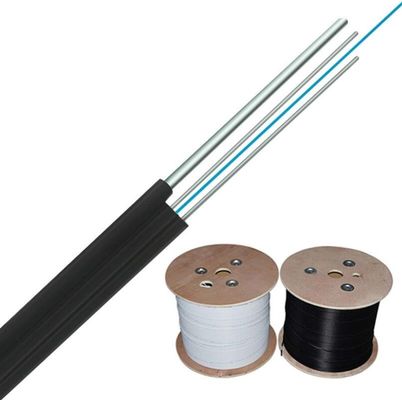

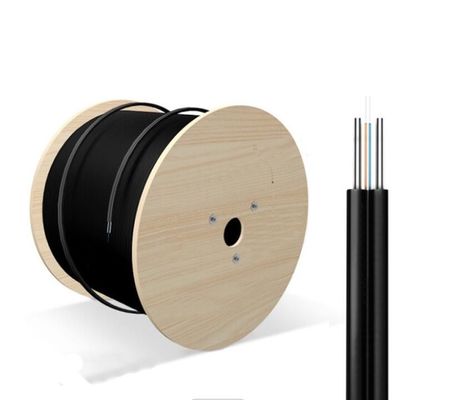

FTTH fiber drop cable 2 4 6 8 12 16 24 Core Single Mode indoor Fiber Optical Cable
Product Description:

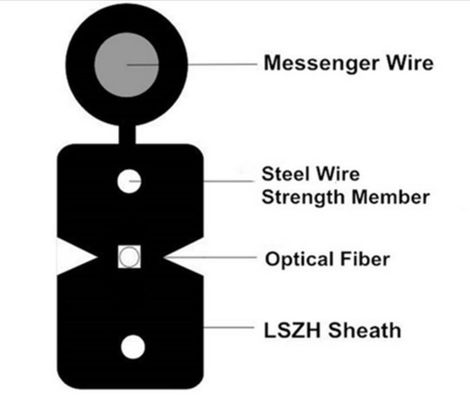

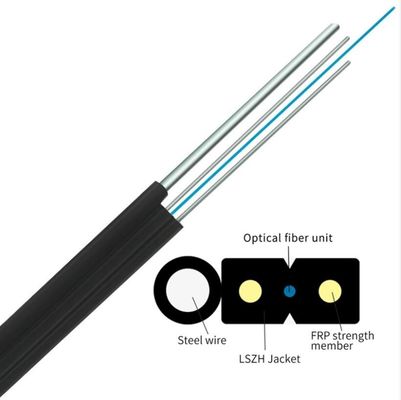

FTTH DROP CABLE IS FIBER TO HOME.WHICH IS USED FOR CONNECTING THE EQUIPMENT AND COMPONENTS IN FIBER OPTIC NETWORK.THE NAKE FIBER CAN BE G652D ,G657A1,G657A2.BUT WE NORMALLY USE G657A1 AND G657A2.THE NAKE FIBER IS BETWEEN TWO PARALLEL FRP OR STEEL WIRE.AND THE SELF-SUPPORTED MESSENGER WILL BE 1.0MM OR 1.2MM.AND THE OUTER JACKER WILL BE WHITE OR BLACK LSZH.
|
Item
|
Technology parameter
|
|
Cable type
|
Drop Cable
|
|
Cable Count
|
1 2 4 6 8 12
|
|
Fiber color
|
Green, Yellow
|
|
Fiber type
|
9/125 (G657A2)
|
|
Sheath color
|
Black and white
|
|
Sheath material
|
LSZH
|
|
Cable dimension (mm)
|
3.0(±0.1)*2.0(±0.1); 5.2(±0.1)*2.0(±0.1)
|
|
Cable weight (Kg/km)
|
15
|
|
Min. bending radius (mm)
|
10 (Static) 25 (Static) 30 (Static) 60 (Static)
|
|
Attenuation (dB/km)
|
0.4 at 1310nm, 0.3 at 1550nm
|
|
Short term tensile ( N)
|
200; 600
|
|
Crush resistance (N/100mm)
|
1000; 2200
|
|
Operation temperature (℃)
|
-20~+70℃
|
|
strength member
|
material
|
Galvanized steel wire/FRP/KFRP
|
|
diameter
|
2*(0.5~0.8)mm
|
|
|
Self support Messenger wire
|
material
|
Galvanized steel wire
|
|
diameter
|
1.0mm
|
|
|
Outer sheath
|
material
|
LSZH
|
|
diameter
|
1.8±0.2mm
|
|
|
Cable size (Height * width)
|
2.0(±0.1) mm × 5.2(±0.2)mm
|
|
|
Cable sheath thickness
|
Max. 0.8mm/Min. 0.4mm
|
|
|
Messenger sheath thickness
|
0.5~0.7mm
|
|
|
Cable weight
|
1~2core
|
18.2KG
|
|
4-6 core
|
18.5KG
|
|
|
8~24core
|
54KG
|
|
Mechanical and Environmental Characteristics
| Items | Unite | Specifications |
| Tension(Long Term) | N | 500 |
| Tension(Short Term) | N | 1000 |
| Crush(Long Term) | N/10cm | 1000 |
| Crush(Short Term) | N/10cm | 2200 |
| Min. Bend Radius(Dynamic) | mm | 20D |
| Min. Bend Radius(Static) | mm | 10D |
| Installation Temperature | ℃ | -20~+60 |
| Operating Temperature | ℃ | -40~+70 |
| Storage Temperature | ℃ | -40~+70 |
