Product Details:
|
| Jacket: | LSZH/PVC/HDPE | Outer Sheath Color: | Orange |
|---|---|---|---|
| Fiber Type: | OM3 | Application: | Telecommunication |
| Strength Member: | Aramid Yarn/Metal Wire | Core: | 4/6/8/12 |
| Product Name: | FTTH Outdoor Or Indoor Drop Cable 1 Core 2 Core Fiber Optic Cable With Messenger | ||
| Highlight: | 2 Core FTTH Drop Cable,1 Core FTTH Drop Cable,Indoor FTTH Drop Fiber Optic Cable |
||

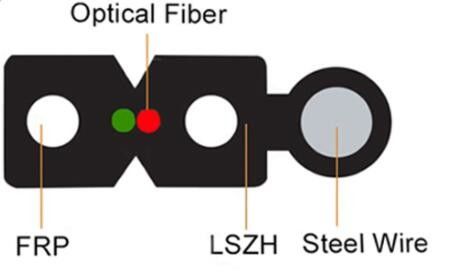

FTTH outdoor or indoor drop cable 1 core 2 core fiber optic cable with messenger
|
Cable Diameter (mm)
|

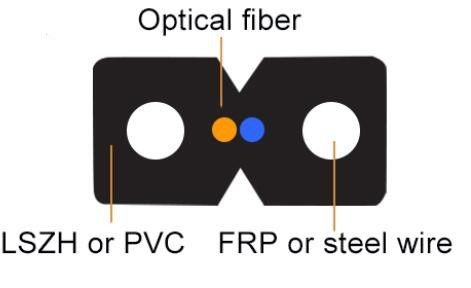

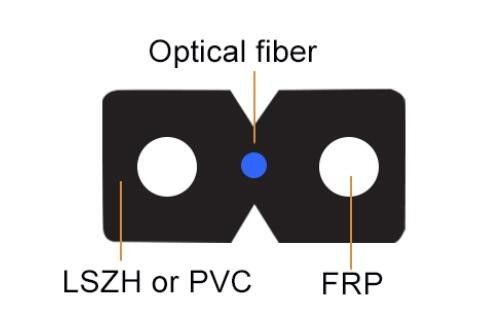

Indoor FTTH Drop Cable
|

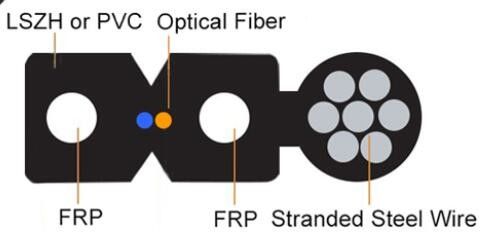

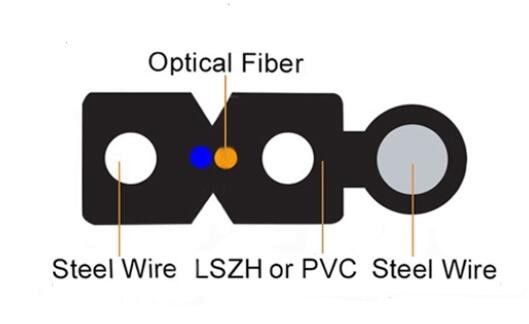

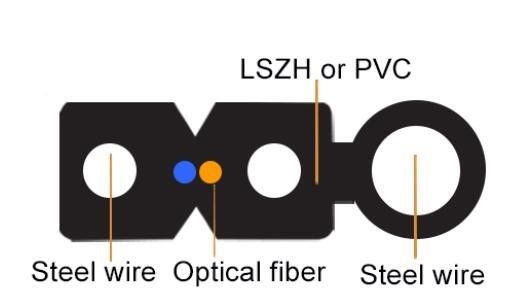

Outdoor FTTH Drop Cable
|
||
|
Insertion Loss(dB)
|
≤0.2
|
|||
|
Return Loss (dB)
|
≥50
|
≥60
|
||
|
Cable Diameter (mm)
|
2.0mm, 3.0mm
|
|||
|
Durability(dB)
|
1000matings, <0.3
|
|||
|
Interchangeability (dB)
|
<0.2
|
|||
|
Operating temperature(℃)
|
-40~+85
|
|||
Features
1. Soft and bendable, easy to deploy and maintenance.
2. Smaller diameter, Light weight, and high practicability.
3. Fiber reinforced plastic as the strength member ensures excellent anti-electromagnetic performance.
4. Environmental protection- Low smoke, zero halogen and flame retardant sheath.
Applications
1. Used in access network or as access cable from outdoor to indoor in customer premises network;
2. Used as access building cable in premises distribution system, especially used in indoor or outdoor
Fiber Parameters
| No. | Items | Unit | Specification | |
| G.657A1 | ||||
| 1 | Mode Field Diameter | 1310nm | μm | 9.0±0.4 |
| 1550nm | μm | 10.1±0.5 | ||
| 2 | Cladding Diameter | μm | 124.8±0.7 | |
| 3 | Cladding Non-Circularity | % | ≤0.7 | |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |
| 5 | Coating Diameter | μm | 245±5 | |
| 6 | Coating Non-Circularity | % | ≤6.0 | |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 | |
| 9 | Attenuation (max.) | 1310nm | dB/km | ≤0.35 |
| 1550nm | dB/km | ≤0.21 | ||
| 10 | Macro-Bending Loss | 1turn×10mm radius @1550nm |
dB | ≤0.75 |
| 1turn×10mm radius@1625nm |
dB | ≤1.5 | ||
