Product Details:
|
| Jacket: | LSZH/PVC/HDPE | Outer Sheath Color: | Orange |
|---|---|---|---|
| Fiber Type: | OM3 | Application: | Telecommunication |
| Strength Member: | Aramid Yarn/Metal Wire | Core: | 4/6/8/12 |
| Product Name: | 1-12core GJYXCH GJYXFCH GJYXFCH GJXH G657A1/G657A2/G652D FTTH Indoor Outdoor Fiber Optic Drop Cable | ||
| High Light: | G652D FTTH Fiber Optic Drop Cable,G657A2 FTTH Fiber Optic Drop Cable,GJYXFCH FTTH Drop Cable |
||

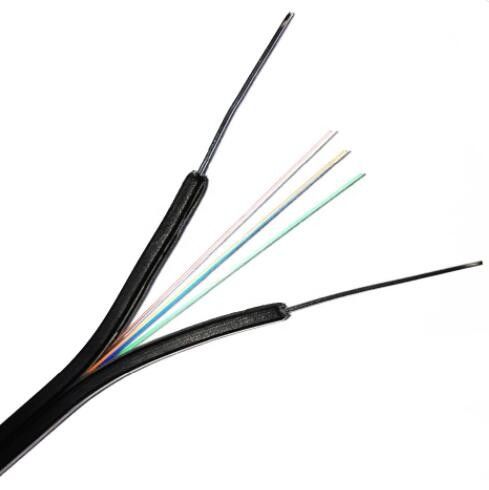

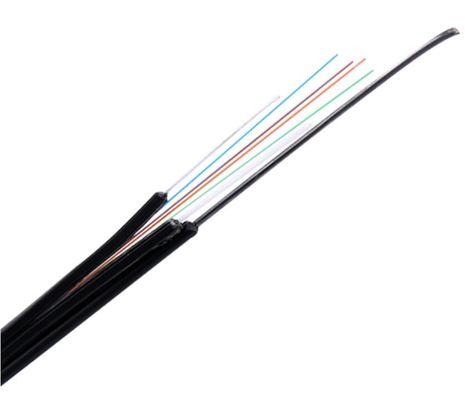

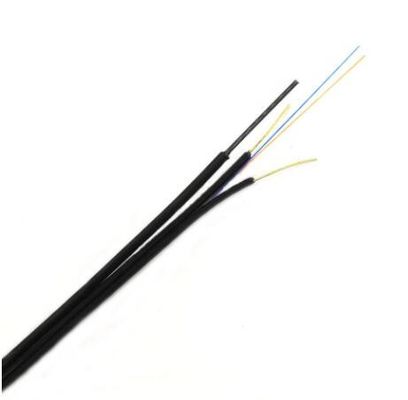

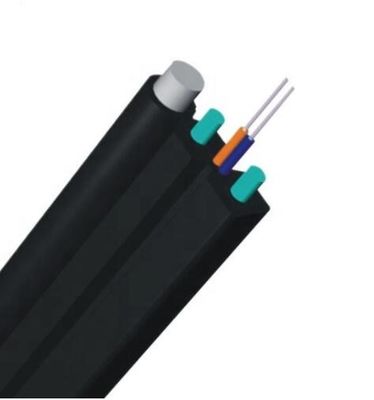

1-12core GJYXCH GJYXFCH GJYXFCH GJXH G657A1/G657A2/G652D FTTH indoor outdoor fiber optic drop cable

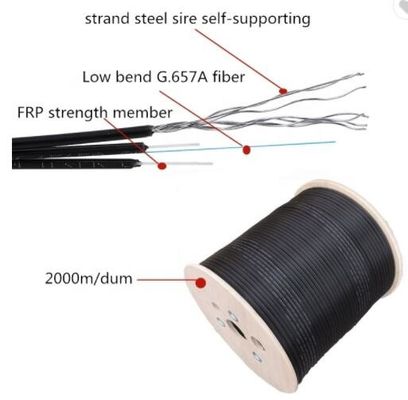

1. High quality Bend-insensitive fiber, Reinforced FRP or Steel Wire strength member, Fire-resistant LSZH material cable sheath
2. Bend-insensitive single mode fiber, ITU. G.657A fiber, Standard fiber length 24km/roll and 48km/roll.
3. High quality LSZH material cable cheath, very smooth surface, anti-UV, flame-retsistant
4. High tensile single wire steel, 1.0mm and 1.2mm for choice

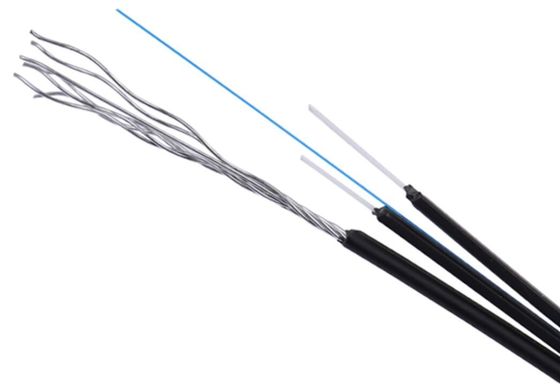

5. galvanized steel swire stranded, higher tensile, flexible
|
Cable Diameter (mm)
|
Indoor FTTH Drop Cable
|
Outdoor FTTH Drop Cable
|
||
|
Insertion Loss(dB)
|
≤0.2
|
|||
|
Return Loss (dB)
|
≥50
|
≥60
|
||
|
Cable Diameter (mm)
|
2.0mm, 3.0mm
|
|||
|
Durability(dB)
|
1000matings, <0.3
|
|||
|
Interchangeability (dB)
|
<0.2
|
|||
|
Operating temperature(℃)
|
-40~+85
|
|||
|
strength member
|
material
|
Galvanized steel wire/FRP/KFRP
|
|
diameter
|
2*(0.5~0.8)mm
|
|
|
Self support Messenger wire
|
material
|
Galvanized steel wire
|
|
diameter
|
1.0mm
|
|
|
Outer sheath
|
material
|
LSZH
|
|
diameter
|
1.8±0.2mm
|
|
|
Cable size (Height * width)
|
2.0(±0.1) mm × 5.2(±0.2)mm
|
|
|
Cable sheath thickness
|
Max. 0.8mm/Min. 0.4mm
|
|
|
Messenger sheath thickness
|
0.5~0.7mm
|
|
|
Cable weight
|
1~2core
|
18.2KG
|
|
4-6 core
|
18.5KG
|
|
|
8~24core
|
54KG
|
|
