Product Details:
|
| Jacket: | LSZH/PVC/HDPE | Outer Sheath Color: | Orange |
|---|---|---|---|
| Fiber Type: | OM3 | Application: | Telecommunication |
| Strength Member: | Aramid Yarn/Metal Wire | Core: | 4/6/8/12 |
| Product Name: | Ftth Fiber Optical Cable Self-supporting Aerial Figure 8 Indoor FTTH Fiber Optic Cable | ||
| High Light: | Indoor FTTH Fiber Optic Cable,Aerial Figure 8 FTTH Fiber Optic Cable,Self Supporting FTTH Optical Fiber Cable |
||
Ftth fiber optical cable Self-supporting Aerial Figure 8 indoor FTTH Fiber Optic Cable

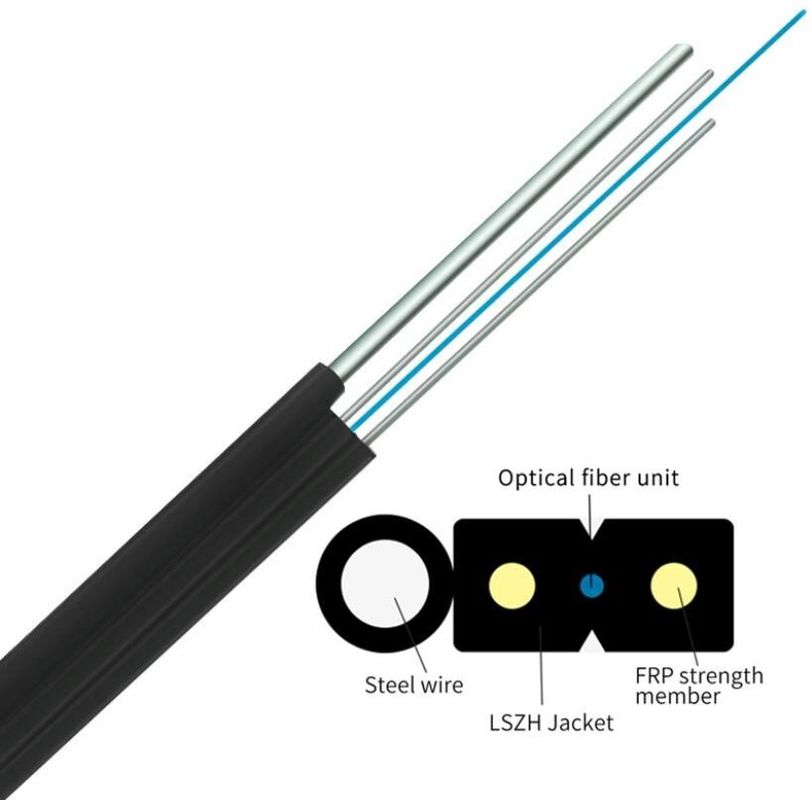

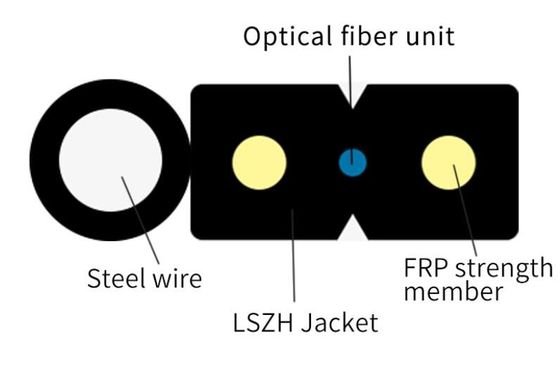

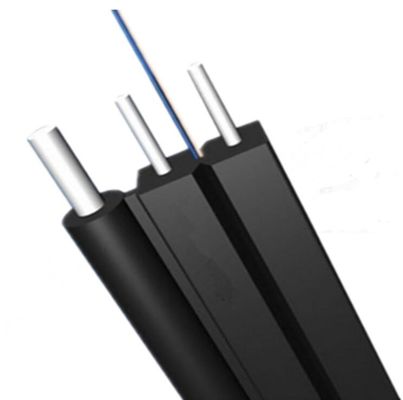

The optical feber unit is positioned in the centre.Two parallel Fiber Reinforced Plastics(FRP)are placed at the two sides.
Then the cable is completed with a black or color LSZH sheath.
Characteristic:
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
Two parallel FRP strength member ensure good performance of crush resistance to protect the fiber;
Simple structure,light weight and high practicability;
Novel flute design,easily strip and splice,simplify the installation and maintenance
Low smoke,zero halogen and flame retardant sheath.
|
Item
|
Technology parameter
|
|
Cable type
|
Drop Cable
|
|
Cable Count
|
1 2 4 6 8 12
|
|
Fiber color
|
Green, Yellow
|
|
Fiber type
|
9/125 (G657A2)
|
|
Sheath color
|
Black and white
|
|
Sheath material
|
LSZH
|
|
Cable dimension (mm)
|
3.0(±0.1)*2.0(±0.1); 5.2(±0.1)*2.0(±0.1)
|
|
Cable weight (Kg/km)
|
15
|
|
Min. bending radius (mm)
|
10 (Static) 25 (Static) 30 (Static) 60 (Static)
|
|
Attenuation (dB/km)
|
0.4 at 1310nm, 0.3 at 1550nm
|
|
Short term tensile ( N)
|
200; 600
|
|
Crush resistance (N/100mm)
|
1000; 2200
|
|
Operation temperature (℃)
|
-20~+70℃
|
|
strength member
|
material
|
Galvanized steel wire/FRP/KFRP
|
|
diameter
|
2*(0.5~0.8)mm
|
|
|
Self support Messenger wire
|
material
|
Galvanized steel wire
|
|
diameter
|
1.0mm
|
|
|
Outer sheath
|
material
|
LSZH
|
|
diameter
|
1.8±0.2mm
|
|
|
Cable size (Height * width)
|
2.0(±0.1) mm × 5.2(±0.2)mm
|
|
|
Cable sheath thickness
|
Max. 0.8mm/Min. 0.4mm
|
|
|
Messenger sheath thickness
|
0.5~0.7mm
|
|
|
Cable weight
|
1~2core
|
18.2KG
|
|
4-6 core
|
18.5KG
|
|
|
8~24core
|
54KG
|
|
