Product Details:
|
| Name: | Fiber Optic Cable 2 Core | Wavelength: | 1260 To 1650nm |
|---|---|---|---|
| Type: | Fiber Optic Plc Splitter, 1x2 1x4 1x8 1x16 2x8 2x16 | Connector: | SC LC |
| Cable Type:: | G652D/G657A1/G657A2 | Operating Temperation: | -40℃ To 85℃ |
| No. Of Fiber: | 2 4 8 16 | Usage: | FTTH |
| High Light: | 2 Core FTTH Patch Cord,G657A2 FTTH Patch Cord,FTTH Jump Cable |
||
FTTH DROP CABLE PATCH CORD/JUMP CABLE
Introduction:
The optical fiber units is positioned in the center.Two stell wired or FRP are placed at the two sides.A steel wired as the additional strength member is also applied.Then the cable has a black color and white LSZH sheath.
Features:
1. High bandwidth and excellent communication transmission property;
2. Two parallel FRP strength members make sure good performance of crush resistance to protect the fiber.
3. Simple structure,light weight and high peformance;
3. Low smoke zero halogen and flame retardant sheath.
Application:
This kind of optical cable widely used in outdoor,it has self-supporting structure.So it will be very stability.
Main Technical Parameters:
Fiber Count |
Cable Diameter mm |
Cable Weight kg/km |
Tensile Strength Long/Short Term N |
Crush Resistance Long/Short Term N/100mm |
Bending Radius Static /Dynamic mm |
| 1 | (2.0±0.2)×(5.0±0.2) | 20 | 60/120 | 300/1000 | 15/30 |
| 2 | (2.0±0.2)×(5.0±0.2) | 20 | 60/120 | 300/1000 | 15/30 |
| 1 | (2.0±0.2)×(5.2±0.2) | 21 | 60/120 | 300/1000 | 15/30 |
| 4 | (2.0±0.2)×(5.2±0.2) | 22 | 60/120 | 300/1000 |
15/30 |
FAQ
Q1: Where is your factory located? How can I visit there?
A1: Our factory is located in Wuhan City, Hubei Province, China.
All our clients, from home or abroad, are warmly welcome to visit us.
Q2: How many years experience in producing?
A2: More than 15 years,and our engineers have more than 20 years product experience.
Q3: Can provide sample to us?
A3: Yes,sample below 30m can be provided freely,but you need pay freight cost.
Q4: How is quality for your fiber optic cable?
A4: Firstly,we use top quality raw material best fiber and friendly sheath material etc),Then surveyor will do the test,such as raw material quality test,fiber optic attenuation test and high or low temperature test etc.
Q5: How to do if don't need your company brand name?
A5: We have own factory,OEM is available;If need other brand name,it is okay.please give us letter of authorization.

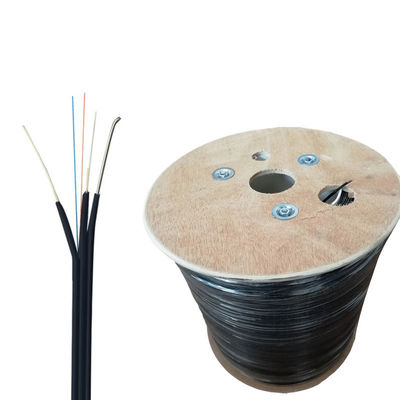

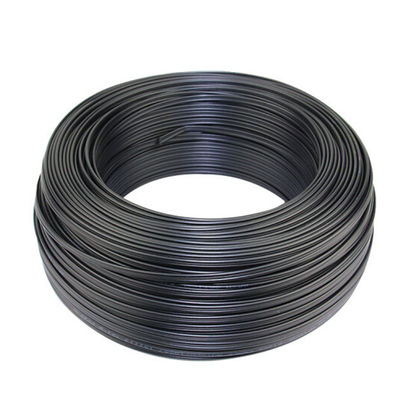

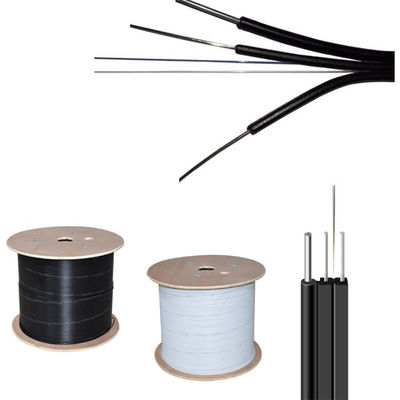

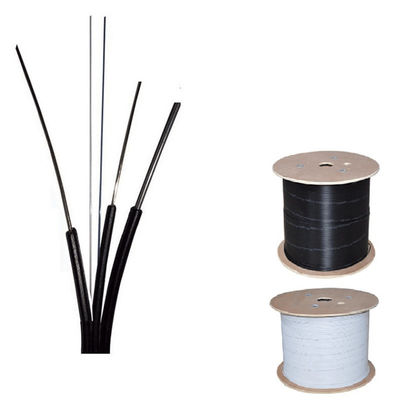

Drawings of Self-supporting Outdoor Steel Messenger Wire FRP G657 FTTH Drop Fibra Optica 2 4 1 core fiber optic cable
