Product Details:
|
| No.of Fiber: | 16 | Type: | Racks & Enclosure |
|---|---|---|---|
| Material: | PC+ABS | Suitable Fiber: | 3.0*2.0 Flat Cable |
| Size: | 300*230*75mm | Connector: | SC Simplex Or LC Duplex |
| Weight: | 1.2kg | ||
| High Light: | FTTX Network 16 Feeder Cable,16 Feeder Waterproof Optical Fiber Splice Box,16 Feeder Optical Fiber Splice Box |
||
FTTH FTTB FTTX Monomode 1/2/4 Core Drop Fiber Optical Cable
Description:

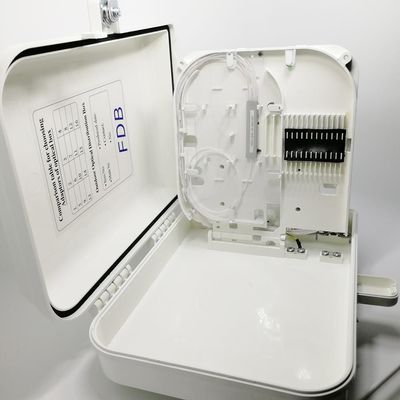

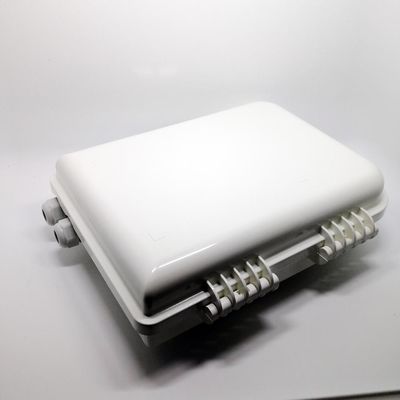

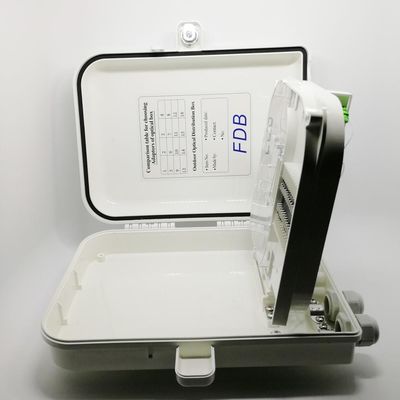

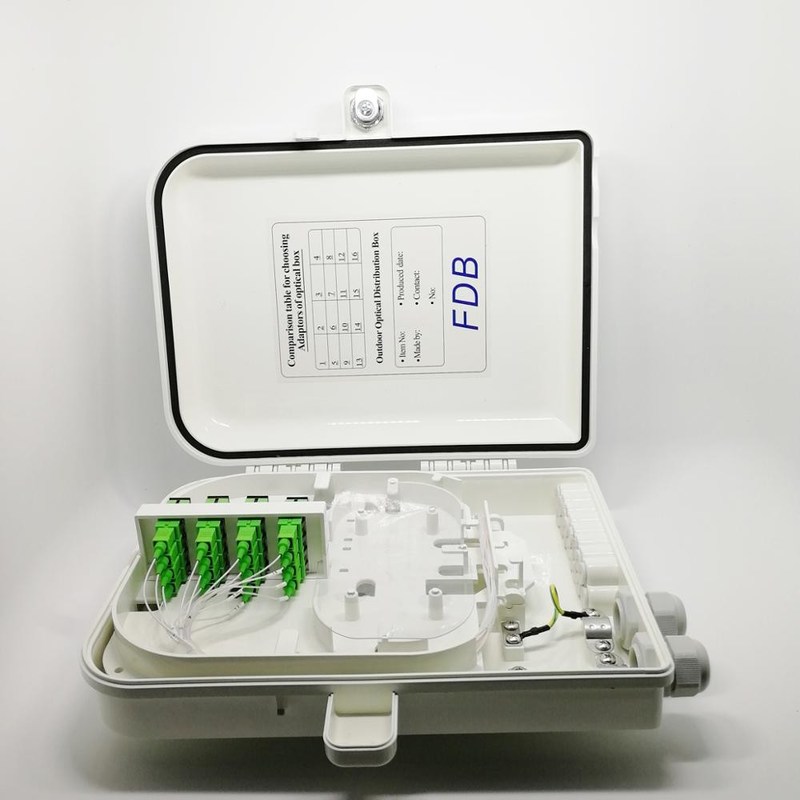

3C-FAT-16C fiber access termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Features:
Water-proof design with IP-66 Protection level.
Integrated with splice cassette and cable management rods.
Manage fibers in a reasonable fiber radius condition.
Easy to maintain and extend the capacity.
Fiber bend radius control more than 40mm.
Suitable for the fusion splice or mechanical splice.
2 pcs of 1:8 Splitter can be installed as an option.
Efficient cable management.
16 ports cable entrance for drop cable.
| ITEM | PARAMETER |
| Suitable fiber type | 3.0*2.0 flat cable |
| Capacity | 16 SC /1*8 PLC |
| IP grade | IP66 |
| Material | PC+ABS |
| Size | 300*230*75mm |
| Weight | 1.2kg |
| Connecting Adapter | 16 SC simplex or LC duplex |
| Operating temperature | -40~+85C |
| Color | White |
